True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truetness.com
Page # 77 of 86
CHAPTER 2: ASSEMBLY GUIDE
Strength
Palladium Modular Training Systems
ASSEMBLY STEPS:

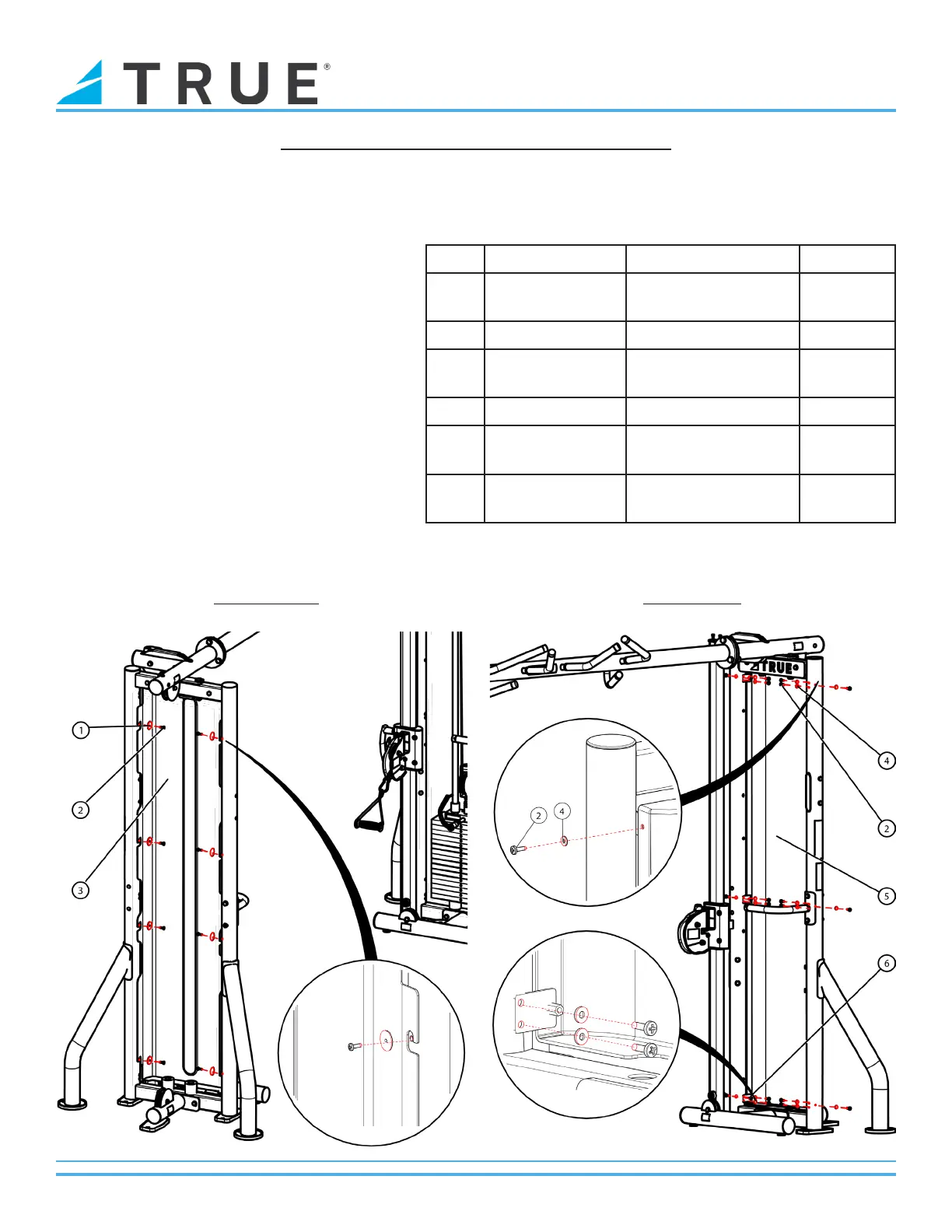

Step 18 (Weight Stack Shrouds [Front and Rear]):
Secure the hardware for the Weight Stack Shroud
(Front) to the Upright Assembly. Next, position
the Weight Stack Shroud (Front) onto the
corresponding hardware to secure in place.
Align the Weight Stack Shroud (Rear) with the
mounting brackets and secure in place using the
identied hardware.
Note: Use the Weight Stack Shroud (Rear) paired
with the Weight Stack Shroud (Front) only
with the TMS0001 (Frame, Single Sided) in the
TMS2000, TMS5000, and TMS6000. In all other
instances, only use the Weight Stack Shroud
(Front).
Front Shroud Rear Shroud
Item Part Number Description Quantity
1 TMS001411 PLASTIC SHROUD
STOP
8
2 C 1200 BHCS, M6 x 20MM 26
3 TMS00141 WEIGHT STACK
SHROUD (FRONT)
1
4 CC-36-011A WASHER, FLAT, M6 18
5 TMS00111 WEIGHT STACK
SHROUD (REAR)
1
6 TMS001121 REAR SHROUD
BRACKET
6
