True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truetness.com
Page # 76 of 86
CHAPTER 2: ASSEMBLY GUIDE
Strength
Palladium Modular Training Systems
ASSEMBLY STEPS:

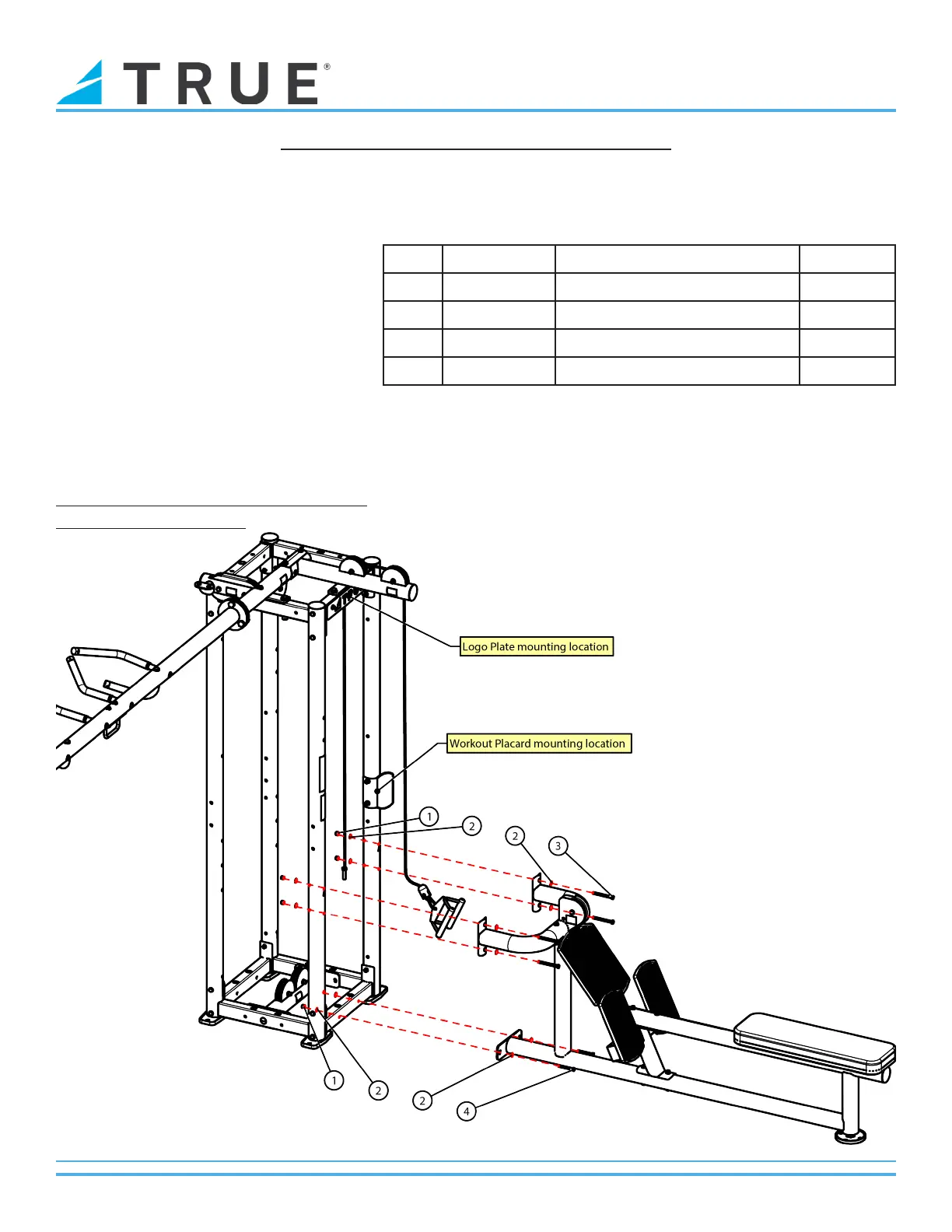

Step 17-5 (Seated Row Station):
Secure the Logo Plate to the Upright
Assembly as shown in Step 8 (Logo Plate).
Secure the Workout Placard to the Upright
Assembly as shown in Step 11 (Workout
Placard).
Lastly, secure the Middle Assembly and
Lower Assembly to the Upright Assembly
using the identied hardware.
Note: Fully tighten all hardware used in
previous assembly steps.
Item Part Number Description Quantity
1 C 742C NYLON LOCK NUT, 3/8”-16 6
2 C 754D WASHER, FLAT, 3/8” 12
3 C 455B HH SCREW, 3/8”-16, 4” 4
4 C 452B HH SCREW, 3/8”-16, 3” 2
