CHAPTER 2: ASSEMBLY GUIDE
Strength
Palladium Modular Training Systems
ASSEMBLY STEPS:

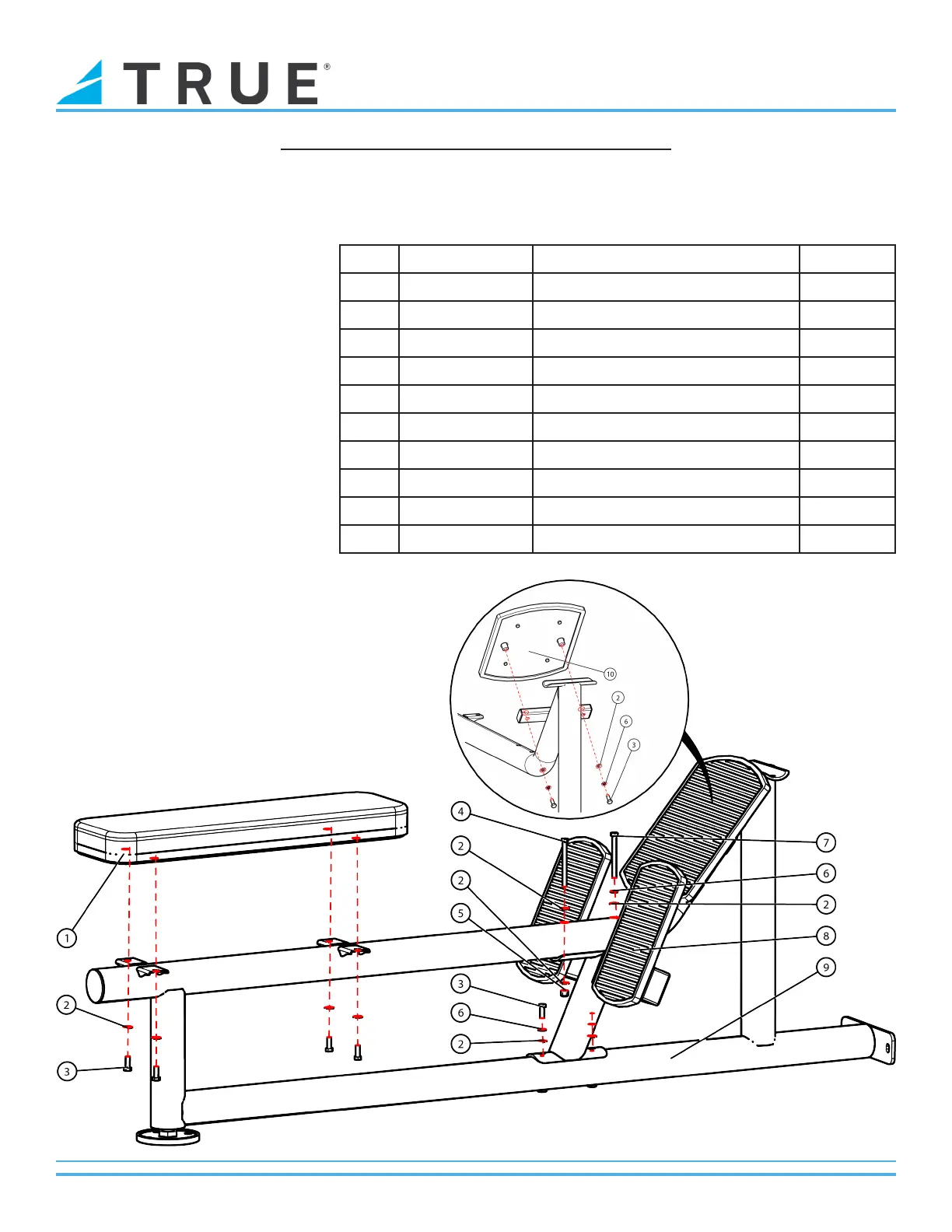

Step 17-1 (Seated Row Station):
Secure the Handlebar Rest
Assembly to the Lower Assembly
using the identied hardware.
Next, secure the Seat Pad to
the Lower Assembly using the
identied hardware.
Lastly, position the Footplate
Assembly as shown below and
secure to the Lower Assembly
using the identied hardware.
Item Part Number Description Quantity
1 TMS12007 SEAT PAD 1
2 C 754D WASHER, FLAT, 3/8” 9
3 C 445D HH SCREW, 3/8”-16, 1” 6
4 C 455B HH SCREW, 3/8”-16, 4” 1
5 C 742C NYLON LOCK NUT, 3/8”-16 1
6 C 749B WASHER, LOCK, 3/8”-16 3
7 C 457A HH SCREW, 3/8”-16, 3-3/4” 1
8 TMS12004 FOOTPLATE ASSEMBLY 1
9 TMS12003 LOWER ASSEMBLY 1
10 TMS120031 HANDLEBAR REST ASSEMBLY 1
