True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truetness.com
Page # 57 of 86
CHAPTER 2: ASSEMBLY GUIDE
Strength
Palladium Modular Training Systems
ASSEMBLY STEPS:

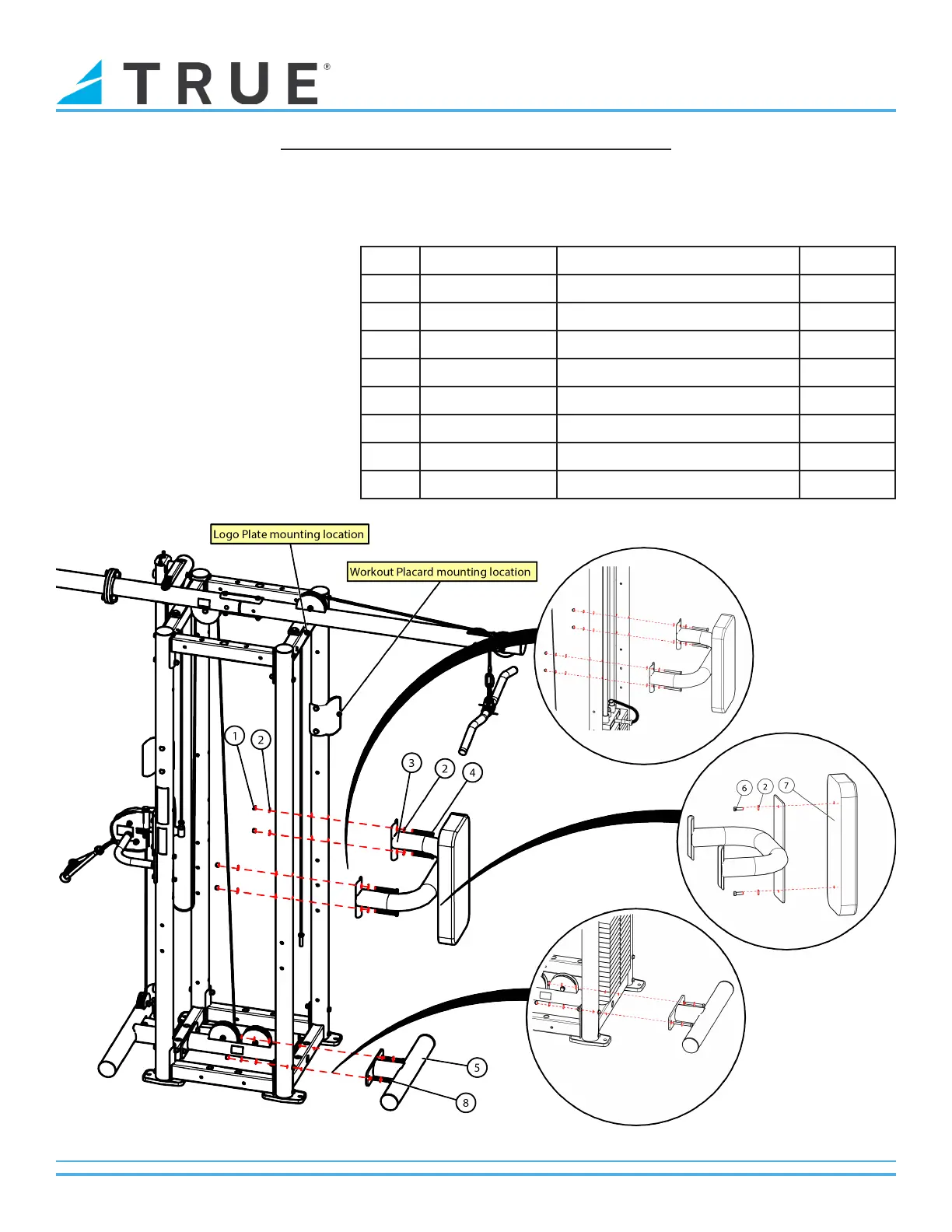

Step 13-3 (Triceps Station):
Secure the Logo Plate to the Upright
Assembly as shown in Step 8 (Logo
Plate).
Secure the Workout Placard to the
Upright Assembly as shown in Step 11
(Workout Placard).
Lastly, secure the Middle Assembly
and Lower Assembly to the Upright
Assembly using the identied hardware.
Item Part Number Description Quantity
1 C 742C NYLON LOCK NUT, 3/8”-16 6
2 C 754D WASHER, FLAT, 3/8” 14
3 TMS05002 MIDDLE ASSEMBLY 1
4 C 455B HH SCREW, 3/8”-16, 4” 4
5 TMS05003 LOWER ASSEMBLY 1
6 C 446B HH SCREW, 3/8”-16, 1-1/4” 2
7 TMS05006 BACK PAD 1
8 C 456B HH SCREW, 3/8”-16, 3-1/4” 2
