CHAPTER 2: ASSEMBLY GUIDE
Strength
Palladium Modular Training Systems
ASSEMBLY STEPS:
Step 7-2 (Overall Cable Routing):
e neutral position of the Guide Rod Bracket orients itself away from the Front Shroud.
If the cable leans more towards the Rear Shroud, then orient the Guide Rod Bracket towards the Front Shroud to
reduce wear on the cable.
Note: is applies to all cables except the cables on the Cable Column Stations.
Note: Front and Rear Shrouds are optional.

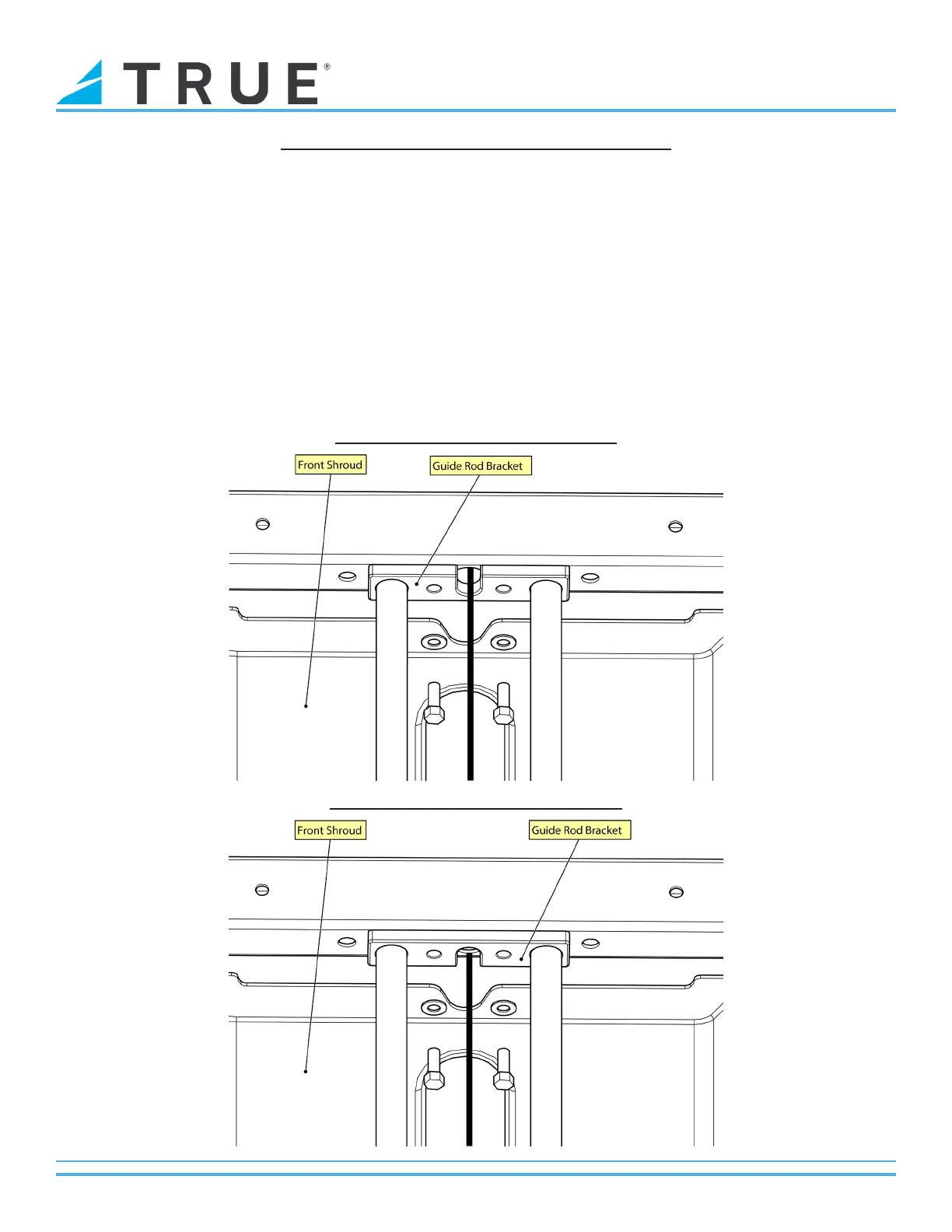

Guide Rod Bracket Neutral Position
Guide Rod Bracket Reversed Position
