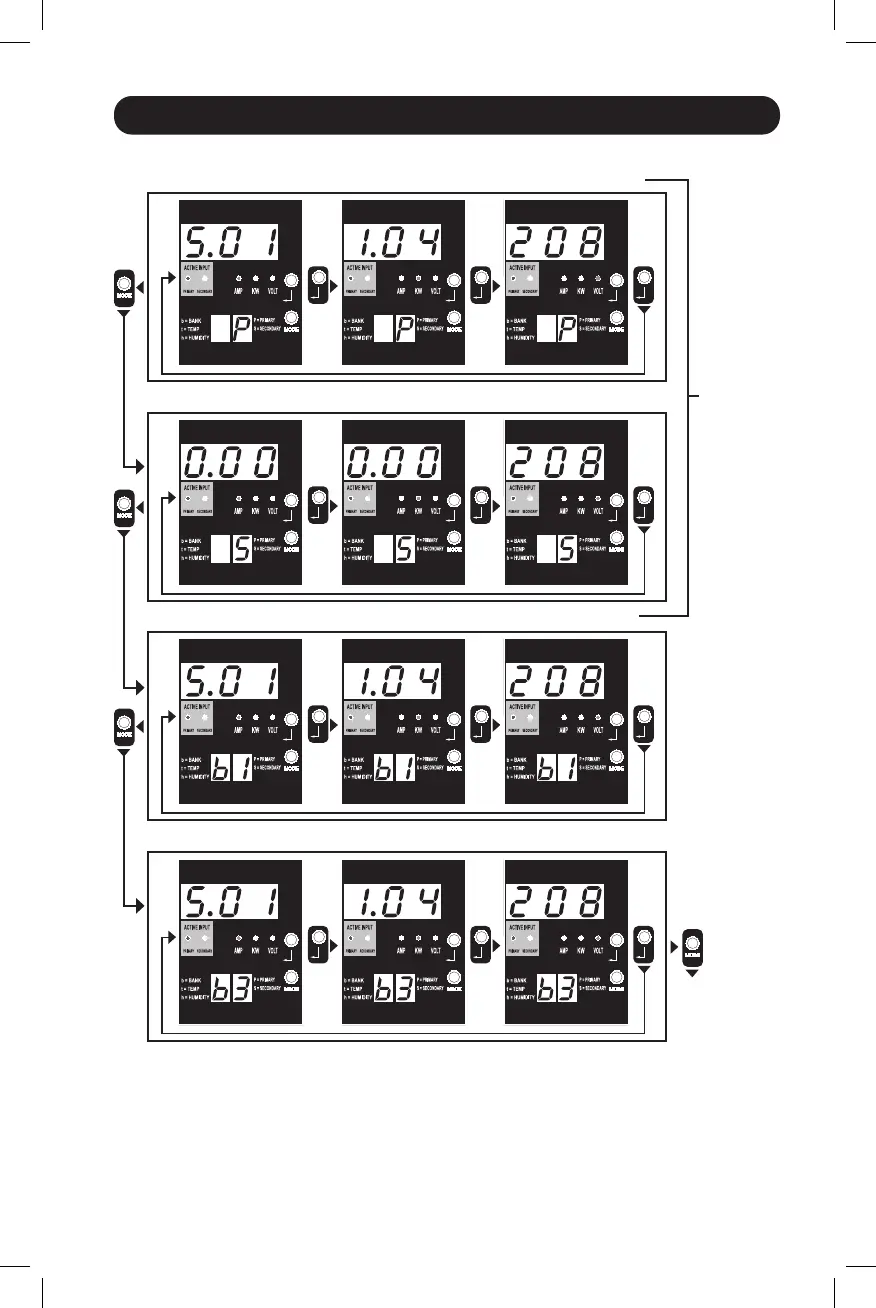

LED Diagrams
Auto
Scroll
Items
(See
Note 6)
15
Display Modes
Primary Source Measurements
Secondary Source Measurements
Bank Measurements
Number of Banks Available (Varies by Model)
Note 1: Press Mode button to go to the next Display mode (vertical movement on this document). Note the Amps, kW or Volt sub-
mode will be remembered.
Note 2: Press Enter button to go to the next sub-mode (horizontal movement on this document).
Note 3: The Active Input LEDs will always show the present source powering the load. (The example images above all assume
the presently selected source is the Primary. Note that if the Secondary source were selected, that LED would illuminate and the
Primary LED would be dim. If neither source is valid, then both the Primary and Secondary source LEDs would be dim).
Note 4: Press and hold both Mode and Enter buttons for 2 seconds to show the IP address of the connected SNMP card.
Note 5: Press and hold MODE button for 2 seconds to switch to Control modes (this will go to the FIRST control mode).
Note 6: When Auto Scroll is enabled, after 10 seconds of inactivity, the display will continuously transition between primary amps,
kW and volts and secondary amps, kW and volts, then wrap back to primary amps.
To Next
Screen
