4. Front/Rear Panels

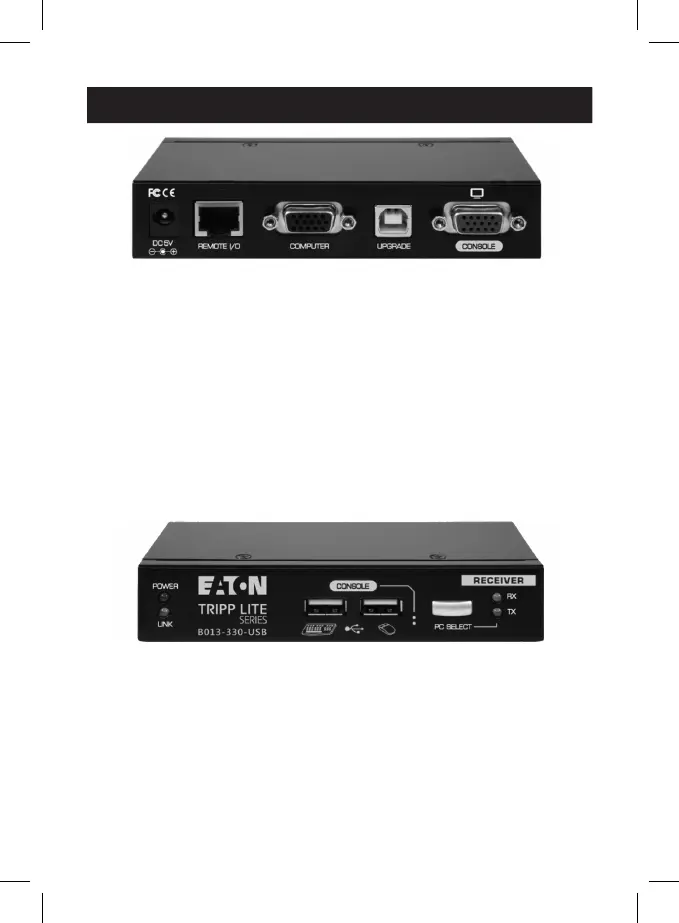

Transmitter (TX) unit - Rear Panel
8
Power jack - DC 5V, center-positive
9
CAT5 Extension Port - RJ45, connects to the receiver unit via a
CAT.X UTP cable, maximum 328 ft. (100 m)
J
COMPUTER port - HDB-15 (VGA + USB), connects to the TX-site
computer using an included 3-in-1 KVM combo cable
K
UPGRADE port - USB Type-B, dedicated for firmware upgrades
L
Transmitter CONSOLE video port - HDB-15 (VGA), connects to TX
unit's monitor
Receiver Unit (Remote-End Connection)
Receiver (RX) unit - Front Panel
1
POWER LED - Illuminates when power is on
2
LINK LED - Illuminates when linkage is established
3
USB keyboard connector
4
USB mouse connector
5
PC SELECT button - Toggles connection of the receiver console to
remote-site (RX) / local-site (TX) computers
8
8
9
9
J
J
K
K
L
L
1
1
6
6
2
2
7
7
3
3
4
4
5
5
