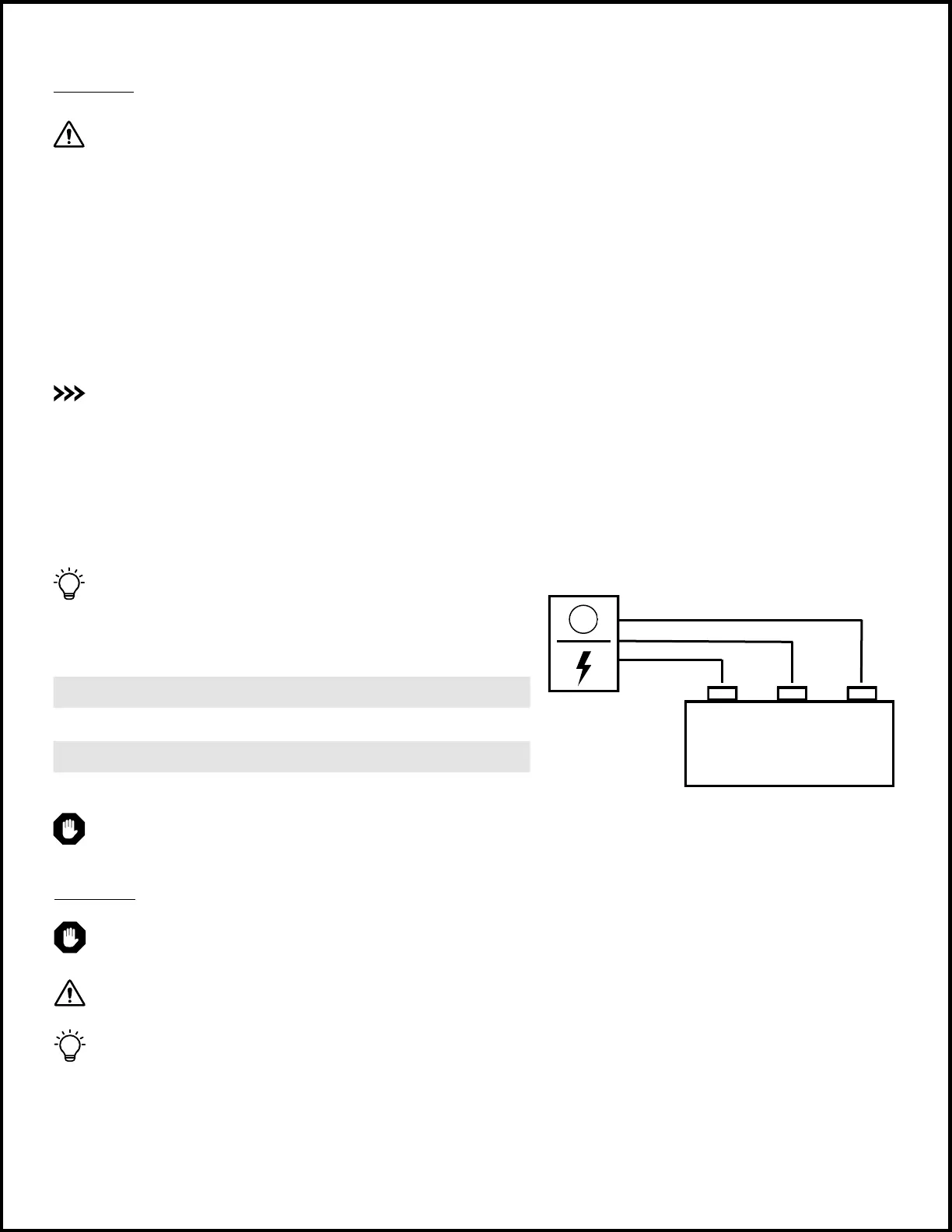

PART 3: ELECTRICAL CONNECTION
WARNING:
Ensure that the power supply is disconnected before proceeding. Verify that the power supply matches the ratings found
on the appliance data label before proceeding. The complete appliance must be properly grounded at all times when
electrical power is applied. Do not ground the appliance with the neutral (white) house supply wire. A separate ground
wire must be utilized. Failure to complete electrical connections properly may result in damaged or non-functional
systems. Follow instructions carefully to ensure proper installation.
It is the owner’s responsibility to ensure that a qualified person performs the electrical connection of this
appliance. The electrical installation, including minimum supply wire size, must comply with the National Electric
Code ANSI/NFPA 70-1990 (or latest revision) and local codes and ordinances. A copy of this standard may be
obtained from:
National Fire Protection Association, 1 Batterymarch Park, Quincy, Massachusetts 02169-7471
Observe all National and local governing codes and ordinances. Have all electrical installation done by a qualified
electrical installer. This Hood requires a 120 Volt, 60 Hertz electrical supply of an individual properly grounded branch
circuit protected by a 15 or 20 Amp circuit breaker. The TRADE-WIND® P7200-12 Series BBQ Hood is supplied with a 6.0
Amp three speed fan control, the -23 models are supplied with (2) 6.0 Amp three speed fan controls.
IMPORTANT: ELECTRICAL REQUIREMENTS
For safety precautions, each Ventilation Hood should be installed in a GFCI protected branch circuit.
H O O D
GREEN
WHITE
120V BLACK
HOUSE ELECTRICAL PANEL
Wire Connections: (See Diagram)
There are 3 wires on the front panel that require connection.
INSTRUCTIONS:
BLACK
WHITE
GREEN
120 VOLT AC FROM ELECTRICAL PANEL (USUALLY BLACK)
NEUTRAL FROM ELECTRICAL PANEL (USUALLY WHITE)
GROUND FROM ELECTRICAL PANEL (USUALLY GREEN)
CAUTION:
The neutral wire (white) must only be connected to the white neutral wire coming in from the electrical
panel.
PART 4: USE AND CARE
CAUTION:
The edges of the stainless steel are extremely sharp. To ensure safety, wear gloves when handling all
parts.
WARNING:
Do NOT operate the blower / ventilator system without the filters in place, or with dirty, grease laden
filters.
Each filter has two aluminum cylindrical knobs, one towards the rear and one towards the front. The front & rear knobs
are only for grasping and are permanently connected to the filter. To remove the filter, grasp the front & rear knobs, slide
the filter towards the center bar of the hood until the other end of the filter drops down. Grasping the filter, remove it
from the hood by now pulling it out of the center bar.
FILTER REMOVAL:
© 2 0 2 3 T R A D E - W I N D M A N U F A C T U R I N G , L L C
P R O V E R B S 2 2 : 2 9
5
