DeltaStream Pizzabox Optical Line Terminal

12 Introduction

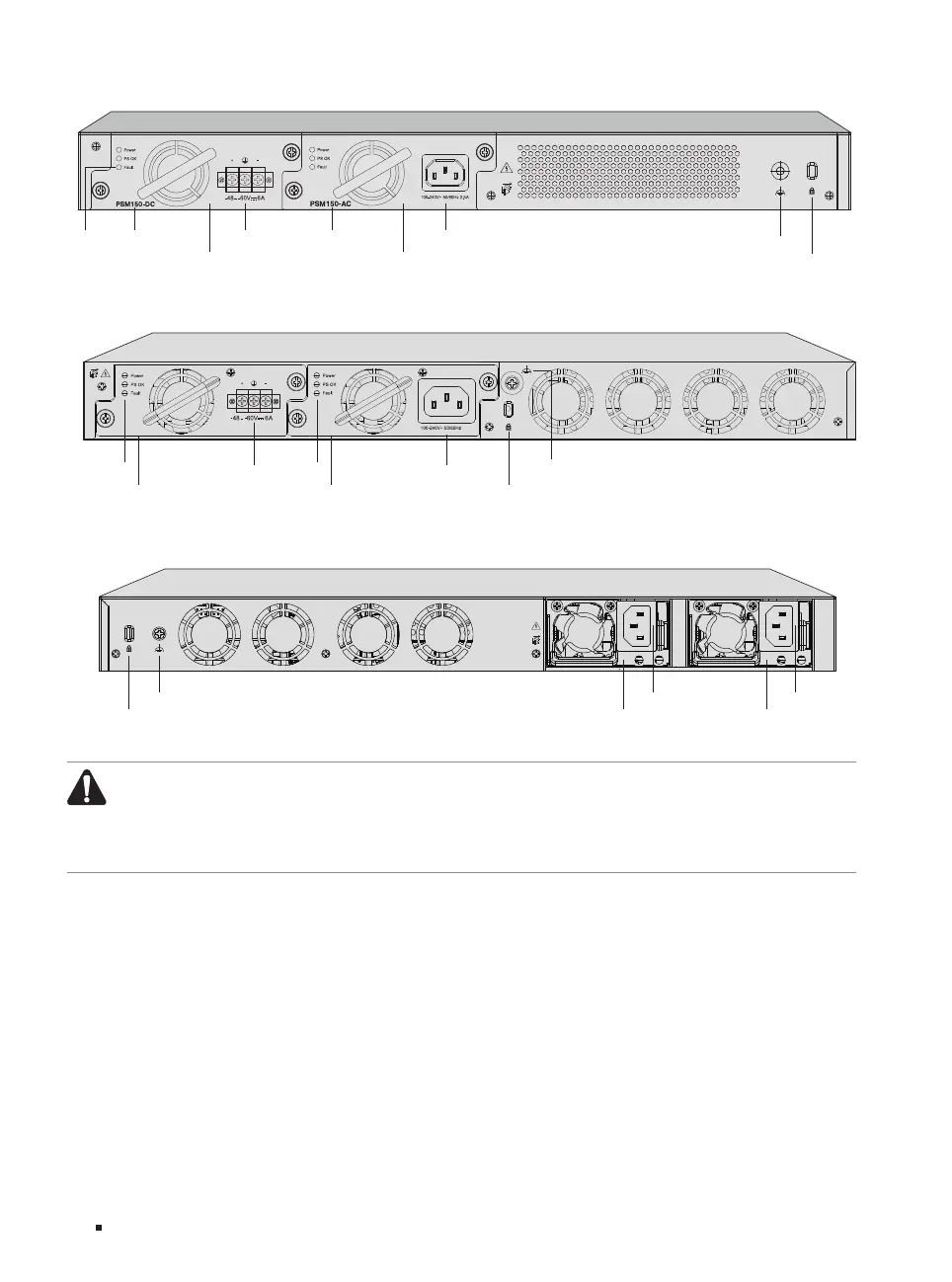

The rear panel of DS-P7001-16 is shown as the following figure.

LEDs

Grounding Terminal

Kensington Security Slot

Backup Power Supply Panel Main Power Supply Panel

DC Power

Supply Module

AC Power

Supply Module

DC Power Input

AC Power Socket

The rear panel of DS-P7500-08/DS-P7501-08 is shown as the following figure.

2.5A

PSM150-DC PSM150-AC

LEDsLEDs

Kensington Security SlotBackup Power Supply Panel Main Power Supply Panel

DC Power Input

AC Power Socket

Grounding Terminal

The rear panel of DS-P7500-16 is shown as the following figure.

Kensington Security Slot Current Sharing Mode Power Panel Current Sharing Mode Power Panel

AC Power SocketAC Power SocketGrounding Terminal

Caution:

For products that utilize pluggable power modules, it is not permissible to leave the power

slots empty during operation. A power module (which can remain inactive) or a baffle must be

inserted to prevent disruption of the overall heat dissipation airflow and compromise of the

cooling function.

Grounding Terminal

The device already comes with lightning protection mechanism. You can also ground the

device through the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed

lightning protection measures, refer to the Lightning Protection Guide from the website:

https://www.tp-link.com/us/conguration-guides/lightning_protection_guide/.

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device from being stolen.

AC Power Socket

Plug the negative connector of the power cord directly into the AC power socket and plug the

positive connector into an AC power outlet. Make sure that the voltage of the power supply meets the
