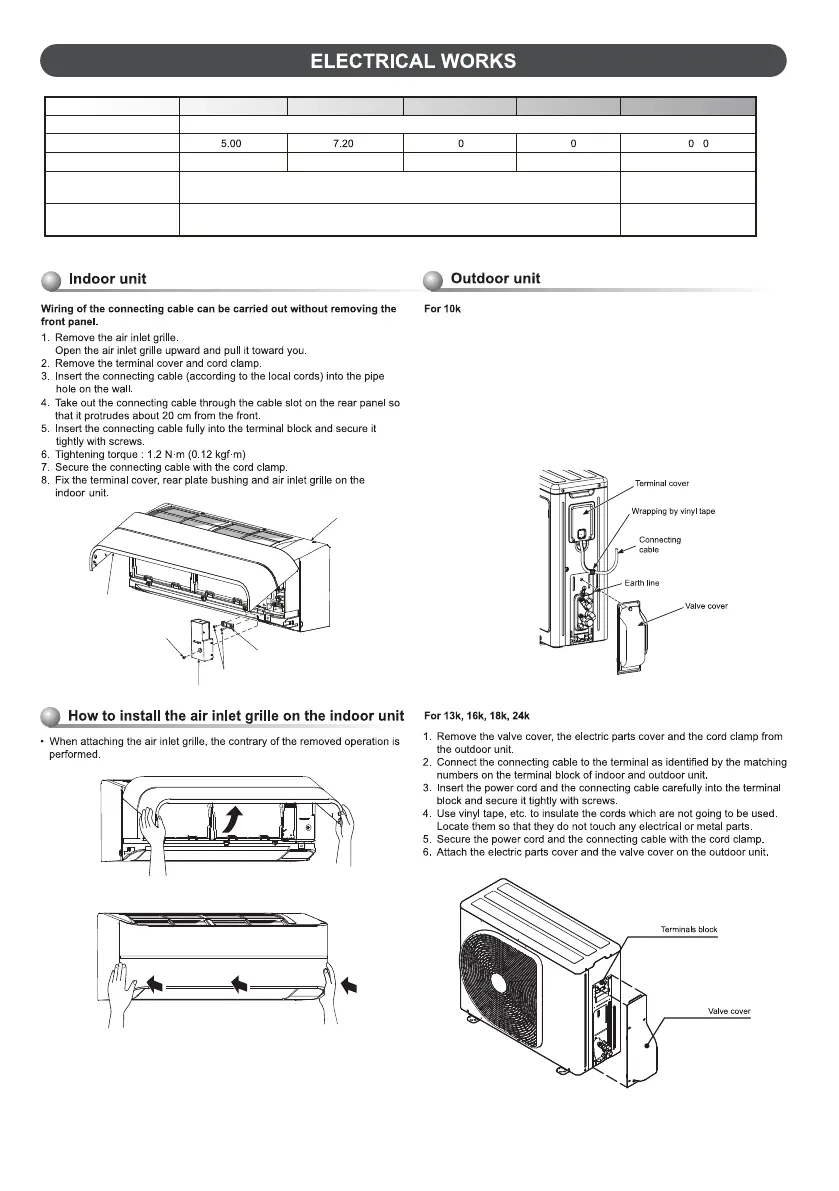

1. Remove the valve cover from the outdoor unit.
2. Connect the connecting cable to the terminals as identified with their.
respective matched numbers on the terminal block of indoor and
outdoor unit.
3. When connecting the connecting cable to the outdoor unit terminals, make
a loop as shown in the installation diagram of indoor and outdoor unit to
prevent water coming in the outdoor unit.
4. Insulate the unused cords (conductors) from any water coming in the
outdoor unit. Proceed them so that they do not touch any electrical or
metal parts
Cord clamp
Terminal cover
Screw
Screws
Air inlet grille
Front panel
Model 10k 13k 16k 18k 24k
Power source 50Hz, 220V Single phase
Maximum running current
A 9.3 A 1 .0 A
Circuit breaker rating 10A 16A 16A
Power supply cable
H07RN-F or 60245 IEC66
(1.0 mm
2
or more)
Connecting cable
H07RN-F or 60245 IEC66
(1.0 mm
2
or more)
A
10A
9.3 A
16A
H07RN-F or 60245 IEC66
(1.5 mm
2
or more)
H07RN-F or 60245 IEC66
(1.5 mm
2
or more)
