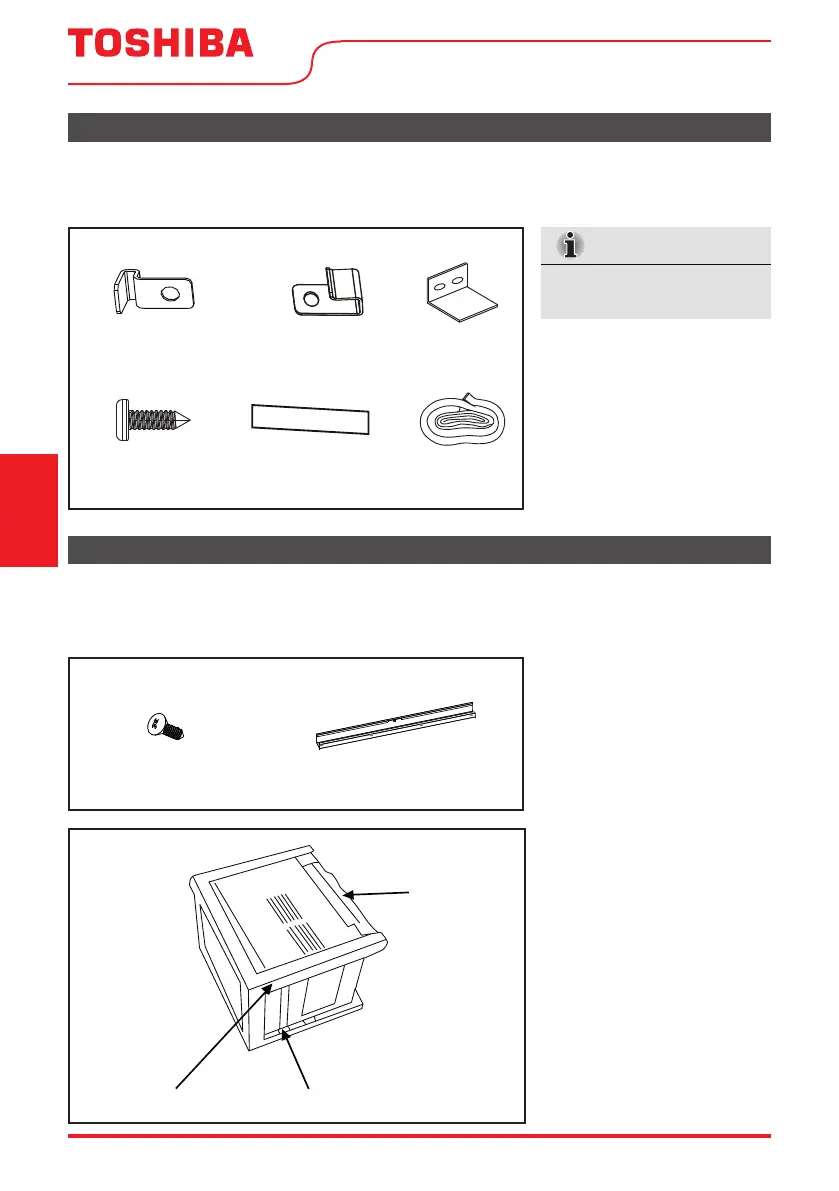

1. Prepare the Window
2. Prepare Air Conditioner
Installation
Instructions
Lower sash must open sufficiently to allow a clear vertical opening (see dimension H in Table 1).
Side louvers and the rear of the AC must have clear air space to allow enough airflow through the
condenser for heat removal. The rear of the unit must be outdoors, not inside a building or garage.
Mounting Hardware
3/4’’ (or 1/2”)
Screws
(7)
Lock Frame
(For Wooden windows)
(2)
Sash Lock
(1)
Window sash
seal foam
(1)
Weather stripping
10”*3/4”*1/12”
(5)
Lock Frame
(For Vynil-Clad windows)
(2)
A: Remove the air conditioner from the carton and place on a at surface.
B: Remove top rail
from the packaging material as shown in Fig. A.
3/8” Screws
(4)
Top Rail
(1)
Top Rail Hardware
NOTE
Weather stripping is only for
ENERGY STAR models only.
Packaging
Fig. A
Top Rail
Top Rail
Fig. A
Page 14 User Manual
