9

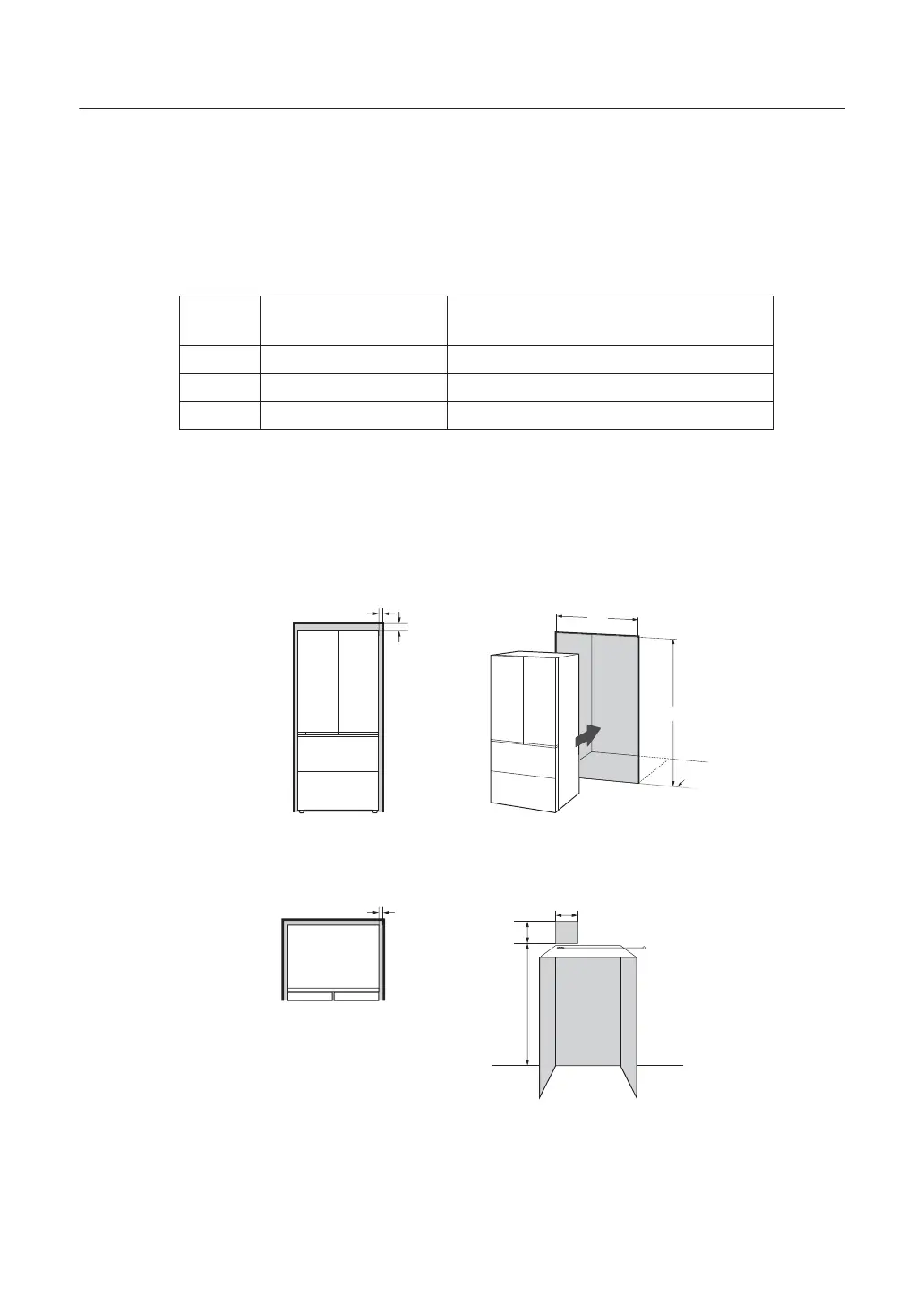

Slot-in
In order to ensure the proper functioning of the refrigerator when used in an embedded manner, a gap
should be left between the refrigerator and the interior of the embedded cabinet (primarily considering
cabinet deformation and ease of installation). When the door opening angle is 90°, the minimum
dimensions of the interior of the embedded cabinet should meet the following requirements:
Overall dimensions of
refrigerator (mm)
Recommended minimum dimensions of
the interior of the embedded cabinet (mm)
Width
833 837
Depth
600 600
Height
1910 1918
It is recommended to install the socket at a height greater than 2000 mm above the rear of the refrigerator.
The diameter of the cable hole on the cabinet board shall be greater than 60 mm, and the cable hole shall
be reserved below the socket (see Figure I) (pay attention to preventing damage to the power cable. It is
recommended that customers use invisible sockets).
2mm
2000mm
200mm
Above 2 mm
Above 2 mm
200 mm
Above 8 mm
Front View - Centered
Installation
Top View - Centered
Installation
Flat and solid ground
Figure I
Width
Height
Depth
Cable
hole
Power
outlet area
• If you want the maximum door opening of 125°, a 40 mm gap is required between both sides of the
refrigerator and the embedded cabinet.
