Model 200/210 Blowers
1. Remove the screw(s) securing the reed valve
components to the carburetor mount/reed
plate.
2. Remove the reed backup, reed, reed valve
seat, and valve seat gasket.
Reed And Reed Backup Installation
NOTE: Pay attention to the shape of the carbu-
retor mount/reed plate surface the reed and
reed backup are mounted on.
All blowers and blower/vacs, and older trimmers and
cultivators have a “flat” reed mounting surface. The
reed valve for these units have a slight downward
curve.
Newer trimmers and cultivators have a reed mount-
ing surface that is curved upward. The reed valve
for these units is flat.
If unit has flat reed plate, make sure a gap of 0.105-
0.110 (2.7-2.8 mm) is maintained between the carbu-
retor mount/reed plate and reed backup plate.
DISASSEMBLE MAJOR
COMPONENTS (cont.)

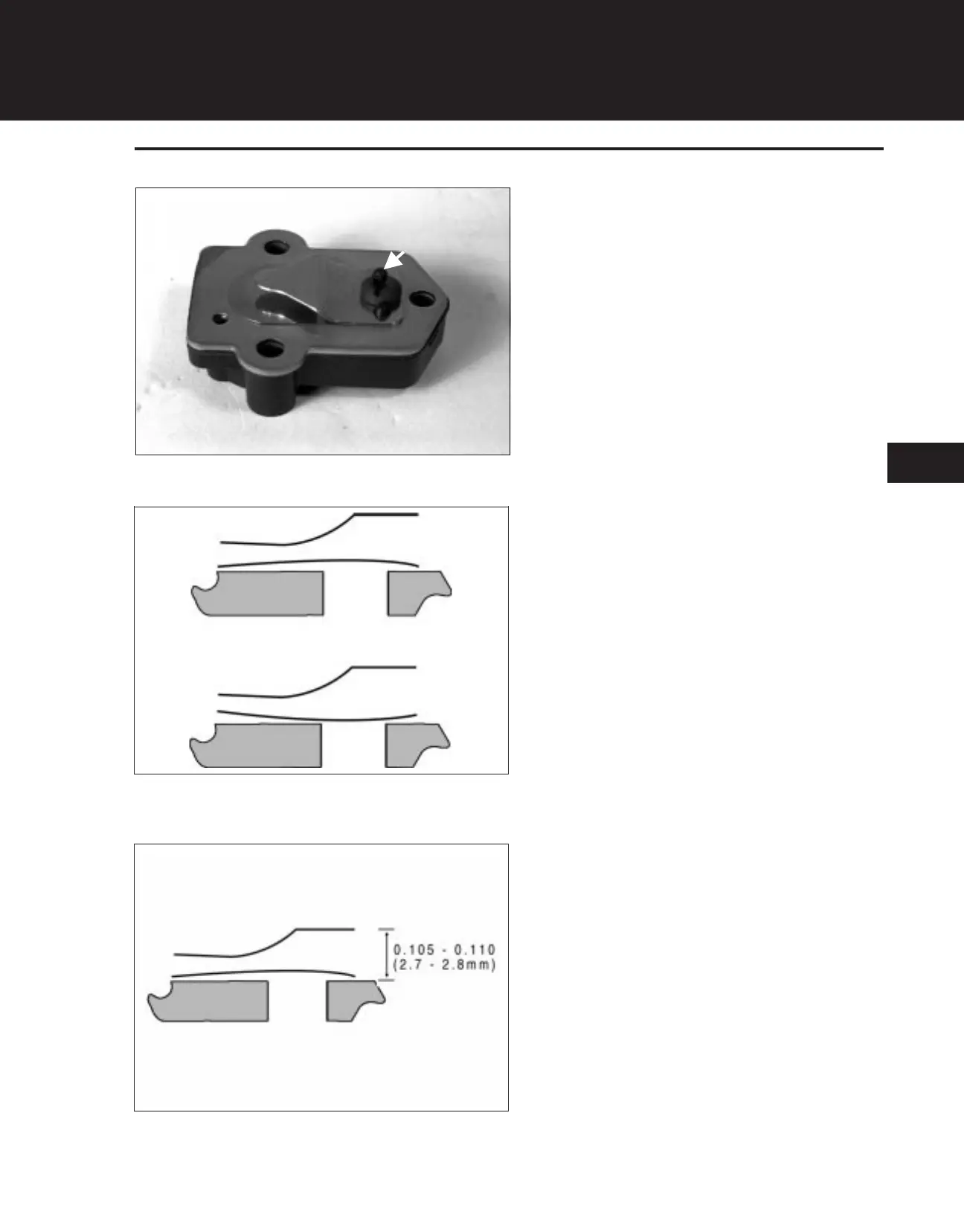

3.6090.137
2.6089.052
3.6089.053
Correct
Incorrect
3
DISASSEMBLY, INSPECTION, & REPAIR
3-25
