ChangingtheOilforthe

PlanetaryDrive

ServiceInterval:Aftertherst250hours—Changethe

planetaryoil.

Every800hours—Changetheplanetaryoil(oryearly,

whichevercomesrst).

Note:Changetheoilwhenitiswarm,ifpossible.

1.Parkthemachineonalevelsurface.

2.Cleantheareaaroundtheoil-levelplug(Figure95).

3.Rotatetheplanetarydriveuntiltheoil-drainplugis

directlybelowtheoil-levelplug(Figure95).

4.Stoptheengineandremovethekey.

5.Placeadrainpanundertheoil-drainplug.

6.Removetheoil-levelplugandtheoil-drainplug.

7.Installtheoil-drainplug.

8.Fillthechaindriveplanetarywithoiluntiltheoileven

withthebottomoftheoil-levelplughole.

9.Installtheoil-levelplug.

10.Repeatsteps1through9tochangetheplanetary-drive

oilontheothersideofthemachine.

CheckingtheOilforthe

GearboxDrive

ServiceInterval:Aftertherst100hours—Checkthe

gearboxdriveoil.

Every500hours—Checkthegearboxdriveoil(or

yearly,whichevercomesrst).

Oilspecication:SAE85W-140APIclassicationlevelGL4

Planetary-driveoilcapacity:approximately2.7L(5.75US

pt)

1.Parkthemachineonalevelsurface,stoptheengine,

andremovetheignitionkey.

2.Checktheoillevelonthesight-glassonthegearbox

drive(Figure96).

Note:Theoillevelshouldcoverhalfofthesight-glass.

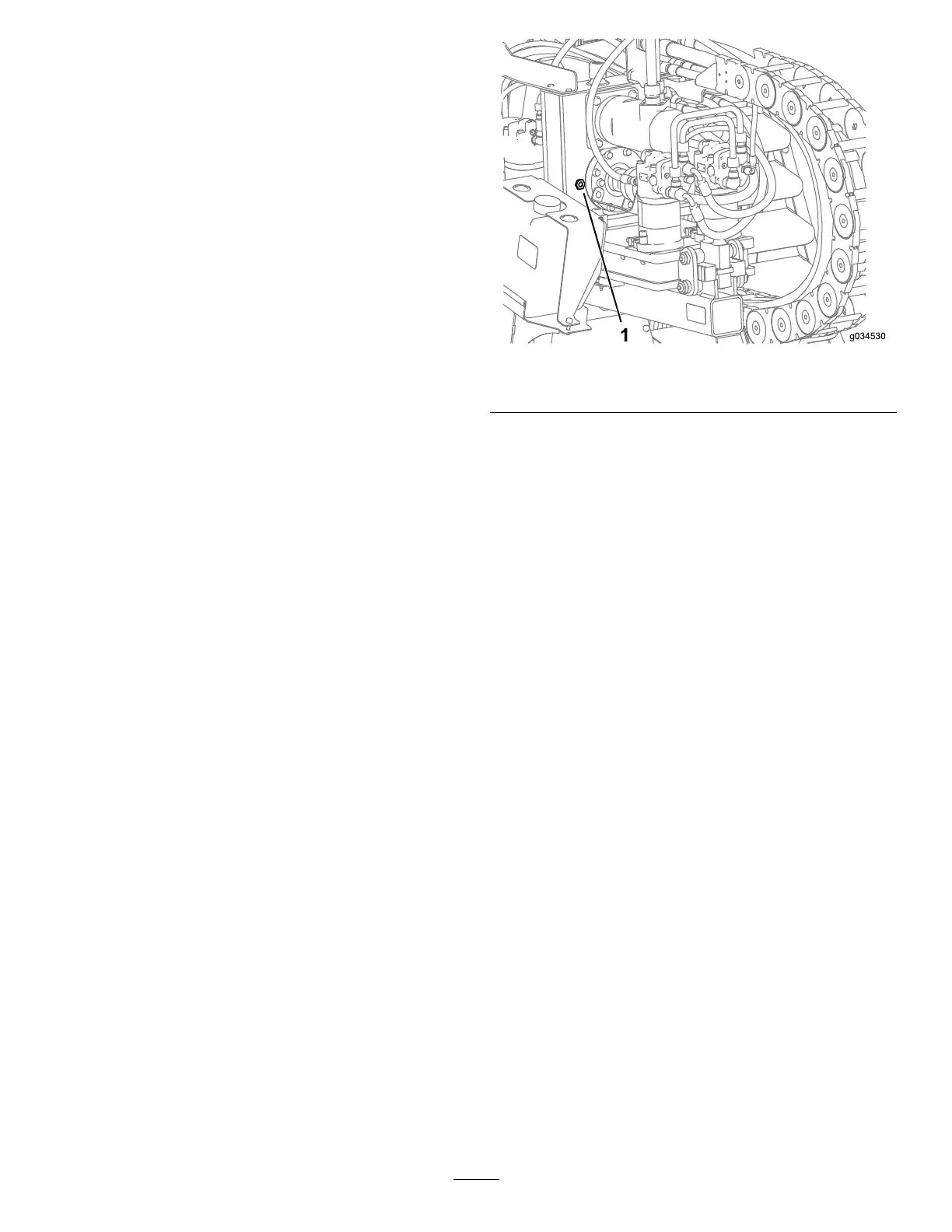

Figure96

1.Sight-glass

3.Removethebreathercapandaddtheoilintothe

gearboxdriveuntiltheoillevelonthesight-glassisat

leasthalffull(Figure96).

ChangingtheOilforthe

GearboxDrive

ServiceInterval:Aftertherst100hours—Changethe

gearbox-driveoil.

Every500hours—Changethegearbox-driveoil(or

yearly,whichevercomesrst).

Note:Changetheoilwhenitiswarm,ifpossible.

1.Parkthemachineonalevelsurfaceandmovethe

carriageallthewaytotherearstop.

75
