Drive-SpeedSwitch
Theswitchsetsthespeedatwhichthemachinewilltravel.
Movetheswitchupforhighspeedordownforlowspeed.
Operator-PresenceSwitch
Pressandholdthisbuttontoenabletheothercontrolsonthe
drivependant.Themachinewillstopmovingifyourelease
thisbutton.
DrillPendant
Thedrillpendant(alsoreferredtoasthelife-jacket
pendant)isdesignedtoallowyourudimentarycontrol
overonlythedrillingfeatureswhenconnectedtothefront
receptacle,shouldtheoperatorplatformcontrolsbecome
non-responsive.Youcanalsoplugthispendantintotherear
drill-pendantreceptacleintheeventthatthedrivependant
malfunctionstoobtainbasicmovementfunctionsatslow
speed.
Onlythedrivefunctionscanbeoperatedfromtherear
drill-pendantreceptacle.
RefertoFigure17forlocation.
g021839
1
2
3

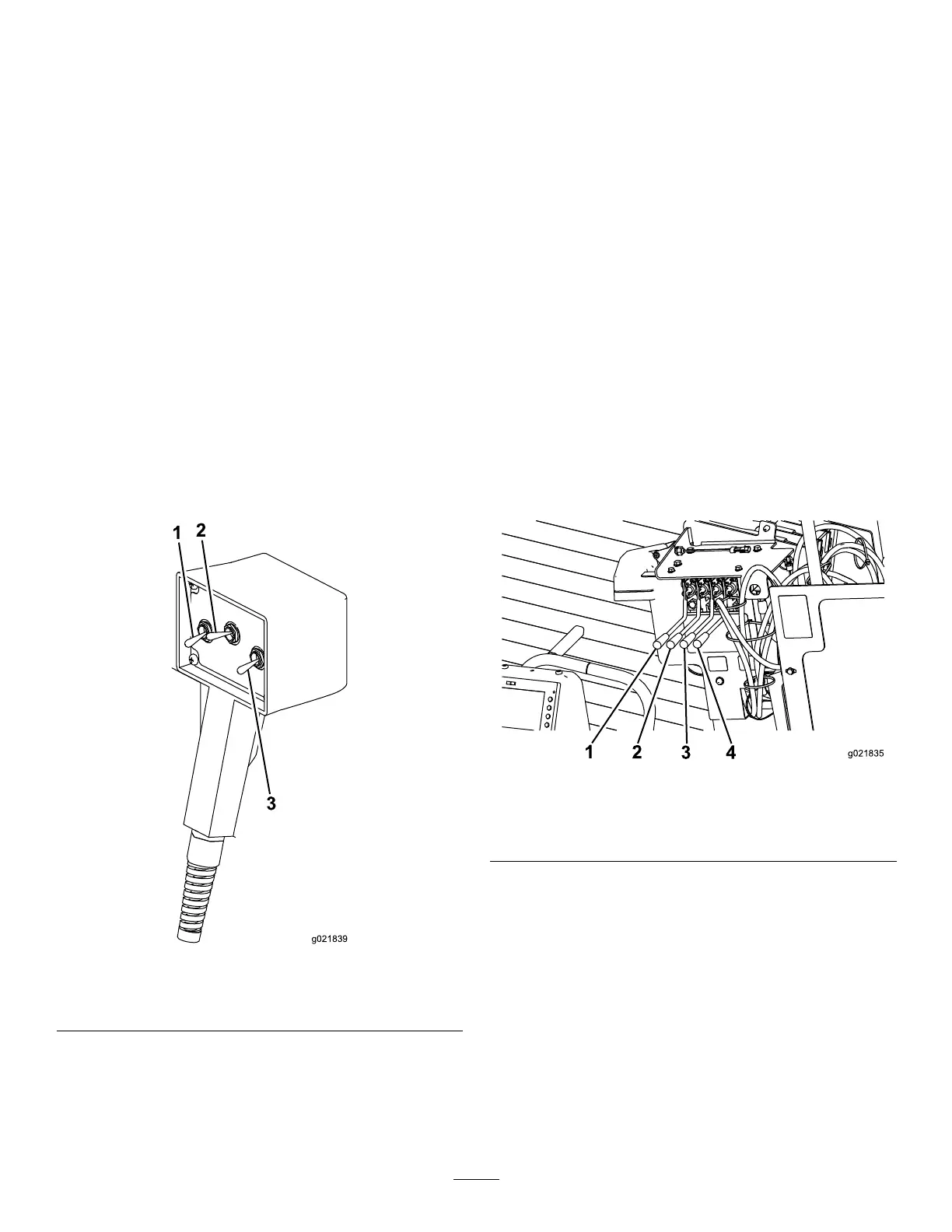

Figure21
1.Leftswitch
3.Rightswitch
2.Centerswitch
LeftSwitch
•Whenconnectedtothedrill-pendantreceptacle,move
thisswitchuptomovethedrillcarriageforwardordown
tomovethedrillcarriagerearward.
•Whenconnectedtothedrive-pendantreceptacle,move
thisswitchuptomovethelefttrackforwardordownto
movethelefttrackrearward.
CenterSwitch
Movethisswitchtothelefttoenablethepipeloaderand
wrenchoperation;movetheswitchtothecentertoturnoff
thedrillinguid.
RightSwitch
•Whenconnectedtothefrontdrill-pendantreceptacle,
movethisswitchuptorotatethedrillspindleclockwise
ordowntorotatethedrillspindlecounterclockwise.
•Whenconnectedtothereardrill-pendantreceptacle,
movethisswitchuptomovetherighttrackforwardor
downtomovetherighttrackrearward.
Stake-DownLevers
g021835
1
2
3 4
Figure22
1.Left-stake-raise/lower
lever
3.Right-stake-raise/lower
lever
2.Left-stake-spinlever
4.Right-stake-spinlever
Stake-Raise/LowerLevers
Pushdownontheseleverstolowerthestakesintotheground.
Pullupontheseleverstoraisethestakesoutoftheground.
Note:TheDRIVE/DRILLswitchontheoperatorpanelmust
beswitchedtotheDRIVEpositionforthisfunctiontowork.
Stake-SpinLevers
Pushdownontheseleverstospinthestakesclockwise.Pull
upontheseleverstospinthestakescounterclockwise.
Note:TheDRIVE/DRILLswitchontheoperatorpanelmust
beswitchedtotheDRIVEpositionforthisfunctiontowork.
29
