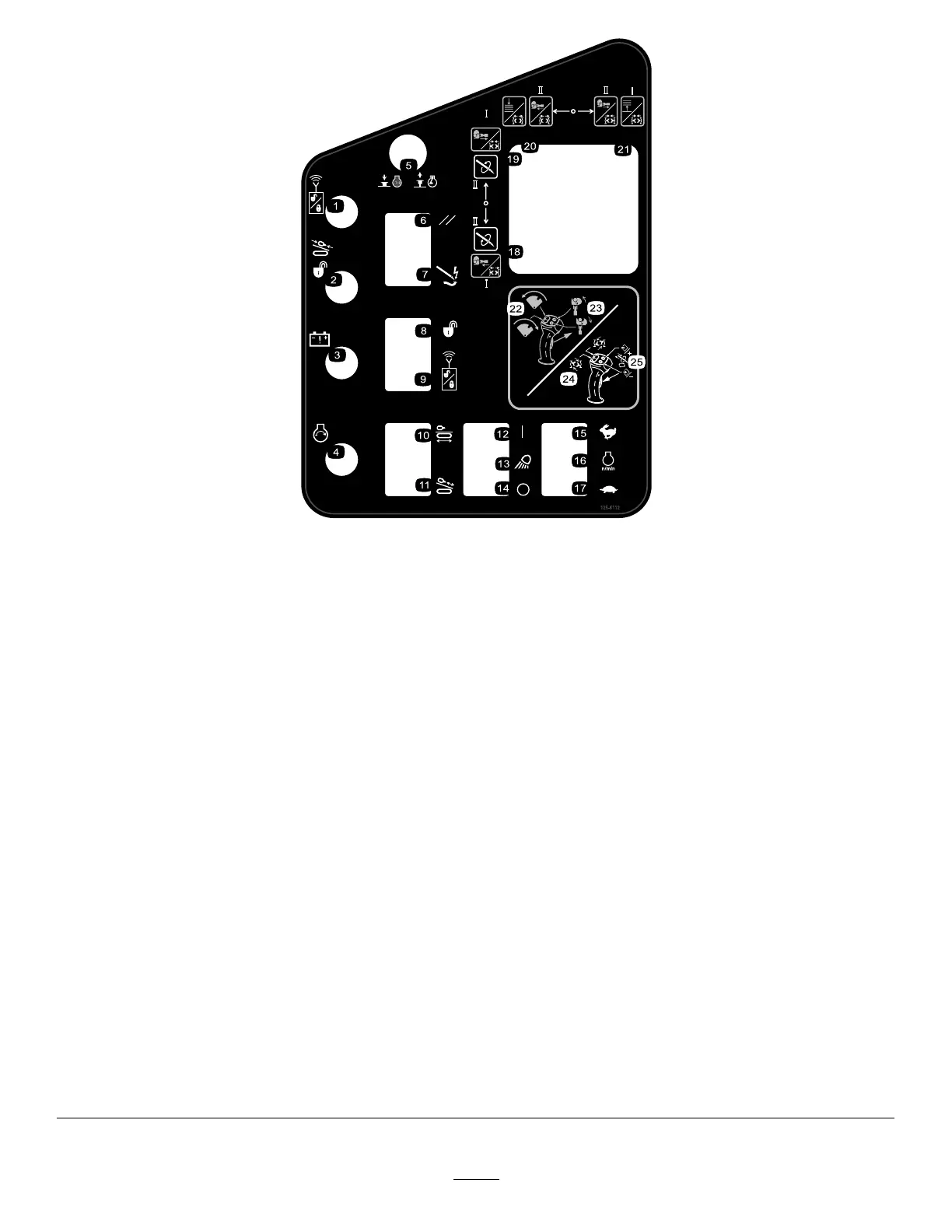

125-6112

1.Exit-sidelockout—resetlight

14.Worklights—Off

2.Exit-sidelockout—drill-enabledlight15.Pressandholdtoincreaseenginespeed.

3.Receiver-battery-statuslight16.Enginespeed

4.Engine—start17.Pressandholdtodecreaseenginespeed.

5.Pressdowntostoptheengine;pulluptostarttheengine.

18.ModeI—lefttriggerreleased,extendspipegrippertoward

drillframe;lefttriggerpressed,openslowerwrench.Mode

II—spindrillspindleclockwise.

6.ResetZap-Alertsystem

19.ModeI—lefttriggerreleased,extendspipegrippertoward

pipeholder;lefttriggerpressed,closeslowerwrench.Mode

II—spindrillspindlecounterclockwise.

7.Zap-Alertsystemtriggered

20.ModeI—lefttriggerreleased,lowerspipeelevator;lefttrigger

pressed,opensupperwrench.ModeII—lefttriggerreleased,

extendspipegrippertowarddrillframe;lefttriggerpressed,

opensupperwrench.

8.Unlockexit-sidelockout

21.ModeI—lefttriggerreleased,raisespipeelevator;lefttrigger

pressed,closesupperwrench.ModeII—lefttriggerreleased,

extendspipegrippertowardpipeholder;lefttriggerpressed,

closesupperwrench.

9.Resetexit-sidelockout

22.Withtriggerreleased,rockforwardtorotatepipeloader

towardpipecam,rockbackwardtorotatepipeloadertoward

drillframe.

10.Engagedrivemovementandsetupfunctions

23.Withtriggerreleased,upperbuttonclosespipegripper,lower

buttonopenspipegripper.

11.Engagedrillcarriagemovementandotherdrillfunctions24.Withtriggerpressed,rockforwardtorotatetheupperwrench

counterclockwisetoloosenajoint;rockrearwardtorotatethe

upperwrenchclockwisetotightenajoint.

12.Worklights—On25.Withtriggerpressed,pressfrontorrearbuttontoresume

thepreviouslysetauto-drillspeed;pressandholdthefront

buttontoincreasetheauto-drillspeed;pressandholdthe

rearbuttontodecreasetheauto-drillspeed.

13.Worklights

17
