Handleiding

14 15

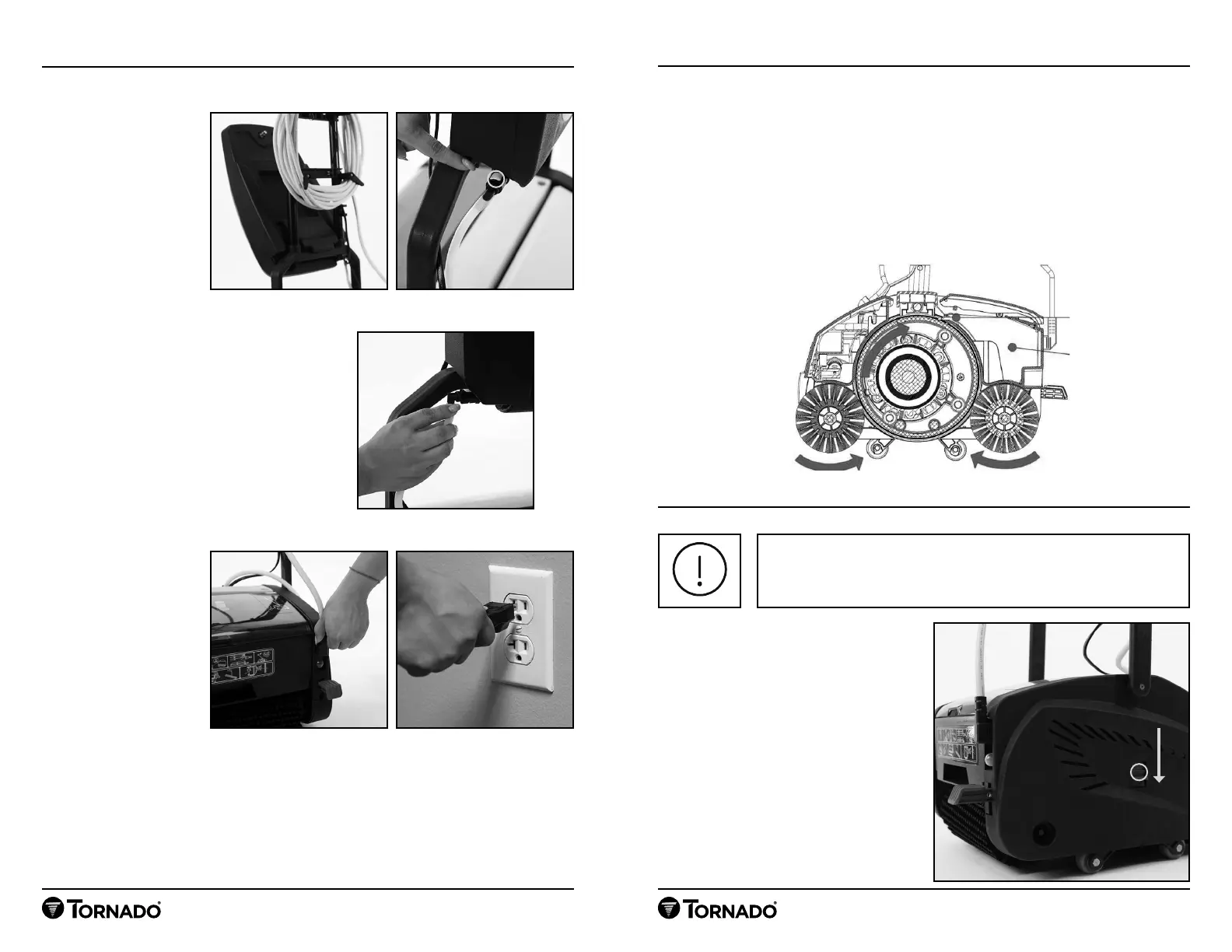

ASSEMBLY

Fig. 10

Fig. 9

Fig. 12Fig. 11

CONTROLS

BRUSH CONTROLS

How it works:

Cleaning liquid in the solution tank is sprayed onto the floor.

The counter rotating brushes scrub the floor and throw the dirty water on the

conveyor drum. The front brush does most of the scrubbing and drying. The rear

brush completes the scrubbing and collects the remaining water from the floor.

The blade fitted to the recovery tank wipes the drum and collects the dirty water.

To put machine in TRANSPORT MODE,

move red lever to the DOWN position. In

this mode, the transport wheels contact

the floor when the handle is moved to

the working position.

Note: The machine will NOT turn on

when in this mode.

The handle must be in the upright and locked

position to change the transport / work lever.

8. Place the lip of the

solution tank on the

handle bracket and

rotate it up so that

the solution tank pin

engages the solution

tank pin retainer.

(Fig. 8)

9. Pressing the white

tab on the connector

will release the elbow

connector from the tank.

(Fig. 9)

10. Attach the hose barb end of the

black elbow connector to the hose

coming from the pump housing.

Attach the other end of the elbow

to the tank by pushing the elbow

into the connection until it “clicks”

and locks in. (Fig. 10)

11. Attach one end of the power cable

to the unit and the other to a wall

outlet. (Fig. 11 & 12)

Fig. 8
