ELARABY is committed to provide maintenance and
spare parts after the warranty period by a cost and this
for 2 year.
Outlet of the Drain Hose: When the drain hose
outlet is exchanged to left side of the machine.
1. Puch down and remove the drain hose from the
hose hook on the lower end of the machine.
2. Puch up the drain hose and hold it into the other
hose hook.
For Pump models
1- Set the drain hose and clamp it by hose clamp.
2- The max. height of the drain hose should be at
1.2 m from the floor.
- Do not use put the drain hose end in the drainage ditch.
- The drain hose should be laid flat on the ground, water
flow will be restricted if any portion of thr drain hose is
raised more than 15 cm (6 in) from the ground.
- After changing the drain hose, make sure that the
hose is not loose
- Do not push the drain hose into the cabinet.
- The length of the drain hose may be extended to as
much as 1.2 m if kept straight.
)
يضارتفا رمعلا

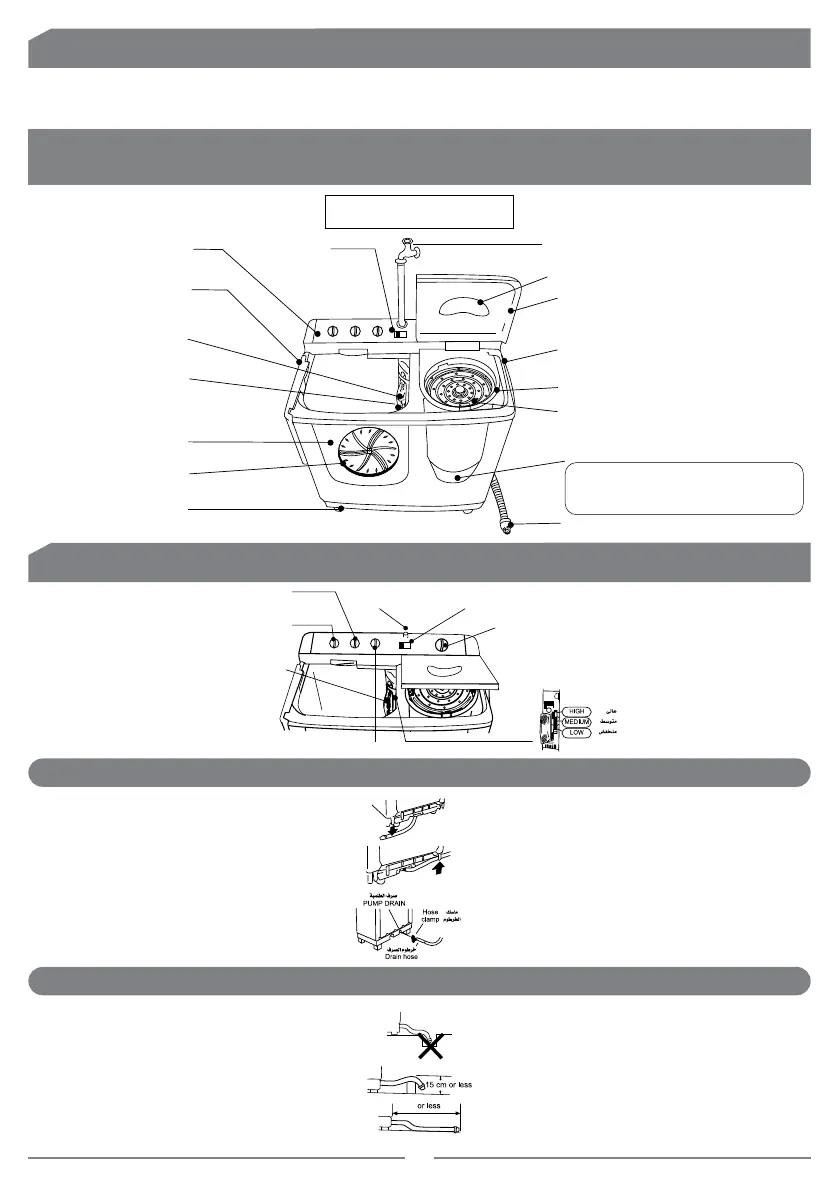

Control Panel
Installation
Caution
TVH-HM07TP(BK) TVH-HM07TP(SK) TVH-HM07TP(WK) TVH-HM07T(BK) TVH-HM07T(SK) TVH-HM07T(WK)
TVH-HM10TS(BK) TVH-HM10TS(SK) TVH-HM10TS(WK) TVH-HM10TSP(BK) TVH-HM10TSP(SK) TVH-HM10TSP(WK)
TVH-HM12TSP(BK) TVH-HM12TSP(SK) TVH-HM12TSP(WK) TVH-HM12TS(BK) TVH-HM12TS(SK) TVH-HM12TS(WK)
Water Feed Selector
Control Panel
Water Tap: Water pressure (1 ~ .0.3 Mpa)
Transparent Lid
Inner Lid:
Be sure to close it on the spin basket
while rotating
Hose Hook
Drain hose
Wash Selector Knob Heavy or gentle wash mode.
Wash Timer Knob :
You can adjust the wash time according
to the fabric (max. 15 min).
Drain Valve Knob : Control the drain valve Pump Control
(For Pump Models) : Control the Drain Valve and Pump Control
Lint Filter : Catch the lint in the wash tub.
Water Feed Selector: You can select the water feed to the wash tub or to the spin
basket.
Spin timer knob: You can adjust the spinning time (max. 5 min.)
Rinse Water - Level Control
Stainless Steel Spin Basket
Spin Cap
Spin Tub Lid :
When you open this lid while
the spin basket is rotating,the brake will engage
and stop the basket.
Wash Tub Lid
Cabinet Base
Impeller
Wash Tub
Lint Filter
Overflow Strainer
TVH-HM07TP(BK),TVH-HM07TP(SK)
TVH-HM07TP(WK),TVH-HM07T(BK)
TVH-HM07T(SK),TVH-HM07T(WK)
For Models
TVH-HM10TS(BK),TVH-HM10TS(SK),TVH-HM10TS(WK)
TVH-HM10TSP(BK),TVH-HM10TSP(SK),TVH-HM10TSP(WK)
TVH-HM12TSP(BK),TVH-HM12TSP(SK),TVH-HM12TSP(WK)
TVH-HM12TS(BK),TVH-HM12TS(SK),TVH-HM12TS(WK
For Models
