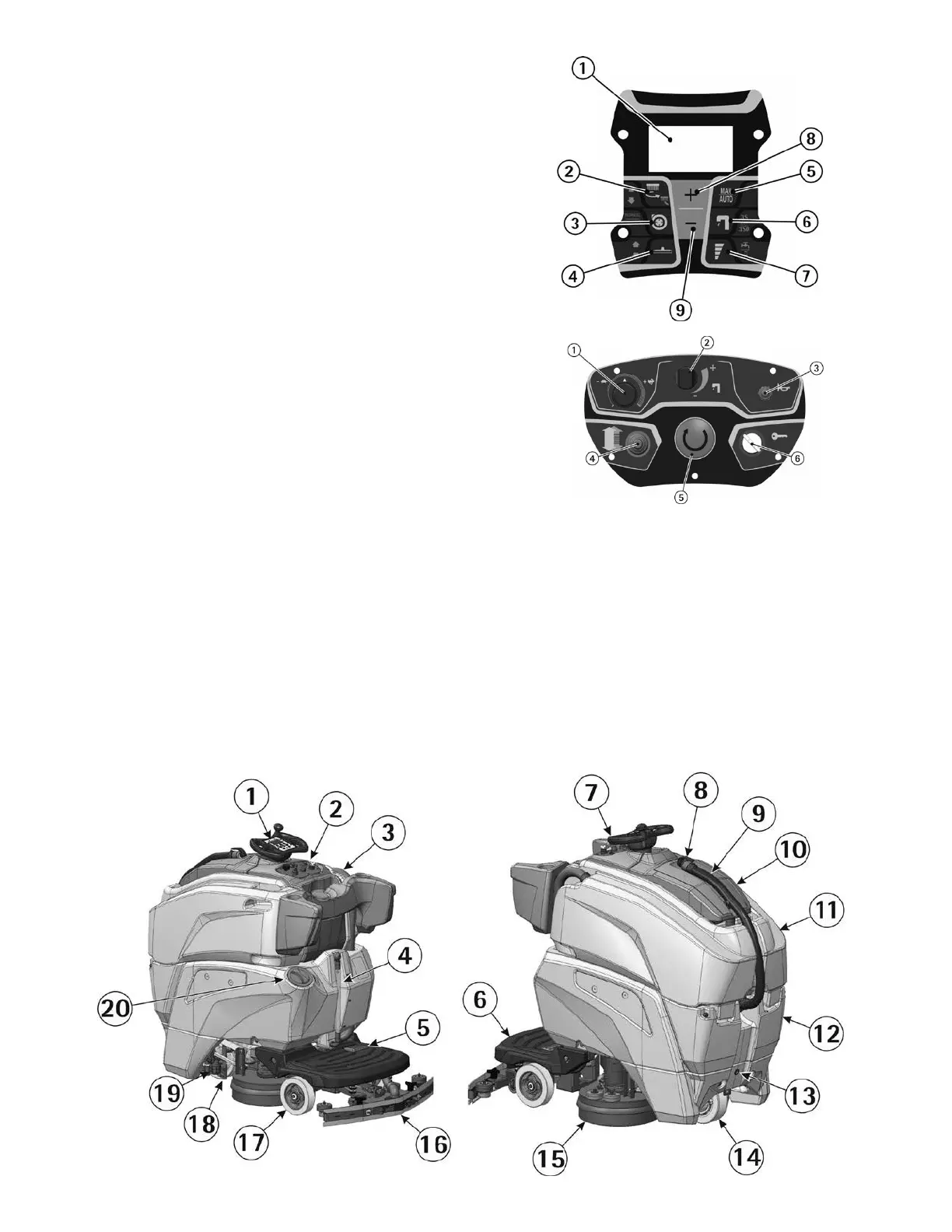

STEERING WHEEL PANEL
1. DISPLAY
2. UP/DOWN BRUSHES BUTTON
3. ON/OFF VACUUM MOTOR BUTTON
4. UP/DOWN SQUEEGEE BUTTON
5. AUTOMATIC/MANUAL MODE BUTTON
6. OPEN/CLOSE SOLENOID VALVE
7. SOLUTION LEVEL BUTTON (ONLY FOR
3S/3SD)
8. MAXIMUM SPEED INCREASE BUTTON
9. MAXIMUM SPEED DECREASE BUTTON
CONTROLS BOARD LEGEND
1. SPEED ADJUSTMENT KNOB
2. WATER VALVE
3. HORN
4. DIRECTION LEVER (FORWARD/BACKWARD)
5. EMERGENCY BUTTON
6. KEY SWITCH
MACHINE LEGEND
1. STEERING WHEEL PANEL 11. RECOVERY TANK
2. CONTROLS BOARD 12. SOLUTION TANK
3. SQUEEGEE HOSE 13. HEADLIGHT
4. SOLUTION LEVEL HOSE 14. TRACTION WHEEL
5. SPEED PEDAL 15. BRUSH BASE ASSEMBLY
6. FOOTBOARD 16. SQUEEGEE ASSEMBLY
7. STEERING WHEEL 17. REAR WHEELS
8. DRAINING HOSE CAP 18. SOLUTION EXHAUST
9. DRAINING HOSE 19. DETERGENT SOLUTION FILTER
10. RECOVERY TANK COVER 20. SOLUTION FILLING HOLE CAP
