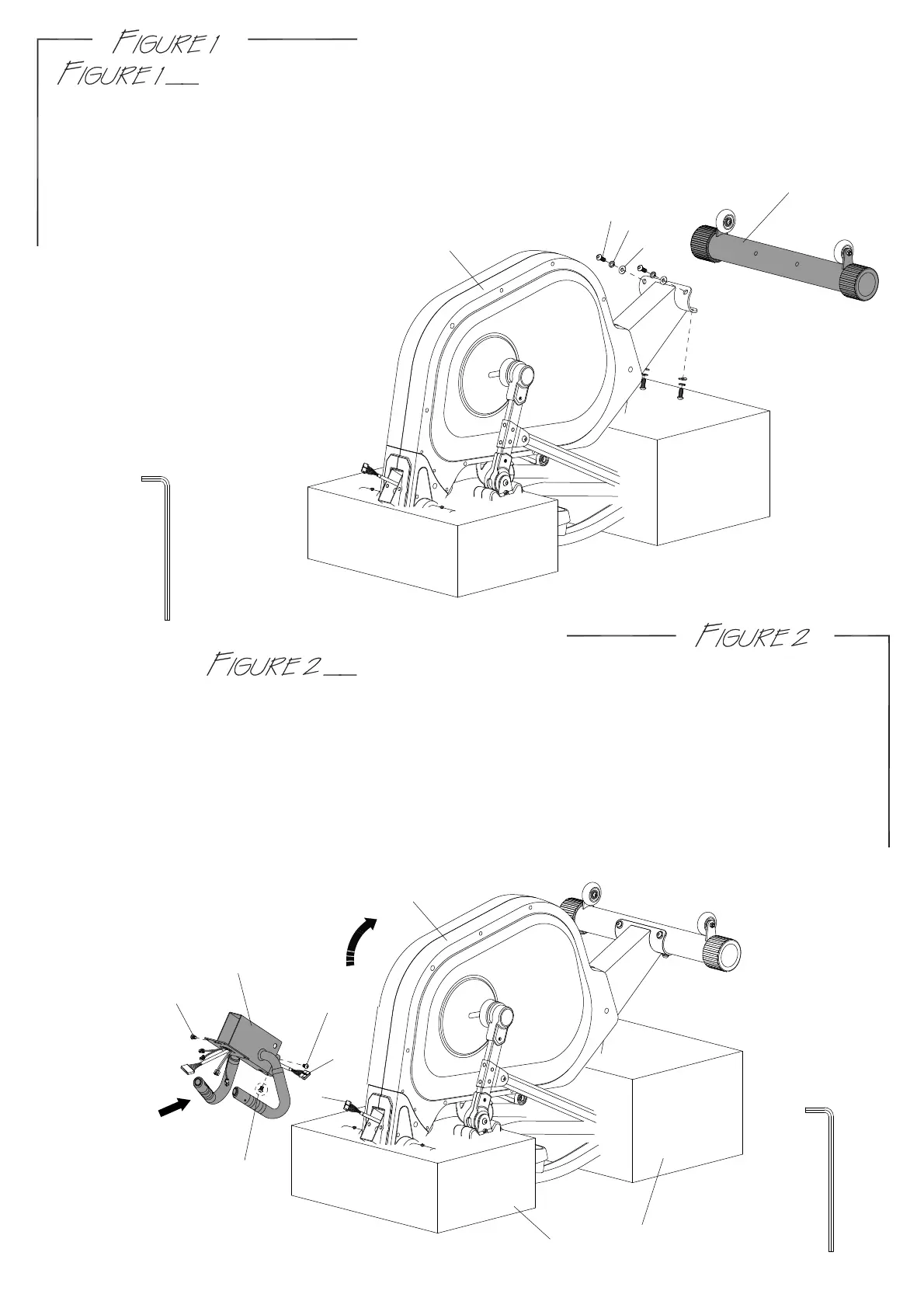

FRONT STABILIZER (B) ASSEMBLY
CONSOLE SUPPORTING TUBE (D) ASSEMBLY
USE TOOL:6m/m
B
B3
B4
B5A
Step 1. Remove the three preassembled screws (D2) from the console supporting tube (D).
Step 2. Connect console wire (K1&K2).
Step 4. Use two hands to hold small handle bar to lift up the main frame (A). then finish the
screw (D2-middle) assembly.
(D2-left)
(D2-right)
(D2-middle)
K2
K1
A
D
(Hold here)
USE TOOL:6m/m
Step 5. Remove the bottom polyfoam pieces #5 & #6.
POLYFOAM(5&6)
( Main frame lift up then screw it)
4
Step 1. Remove the four preassembled screws (B3), spring washer (B4)
and washer (B5) from the front stabilizer (B).
Step 2. Attach the front stabilizer (B) on to main frame (A) with screws (B3),
spring washer (B4) and washer (B5).
Step 3. Attach the console supporting tube (D) on to main frame (A) with screw (D2-left)
and screw (D2-right).
