Chapter 2
USING IN THE SIMPLE MODE
2-13
Step 11. Click the Next button.

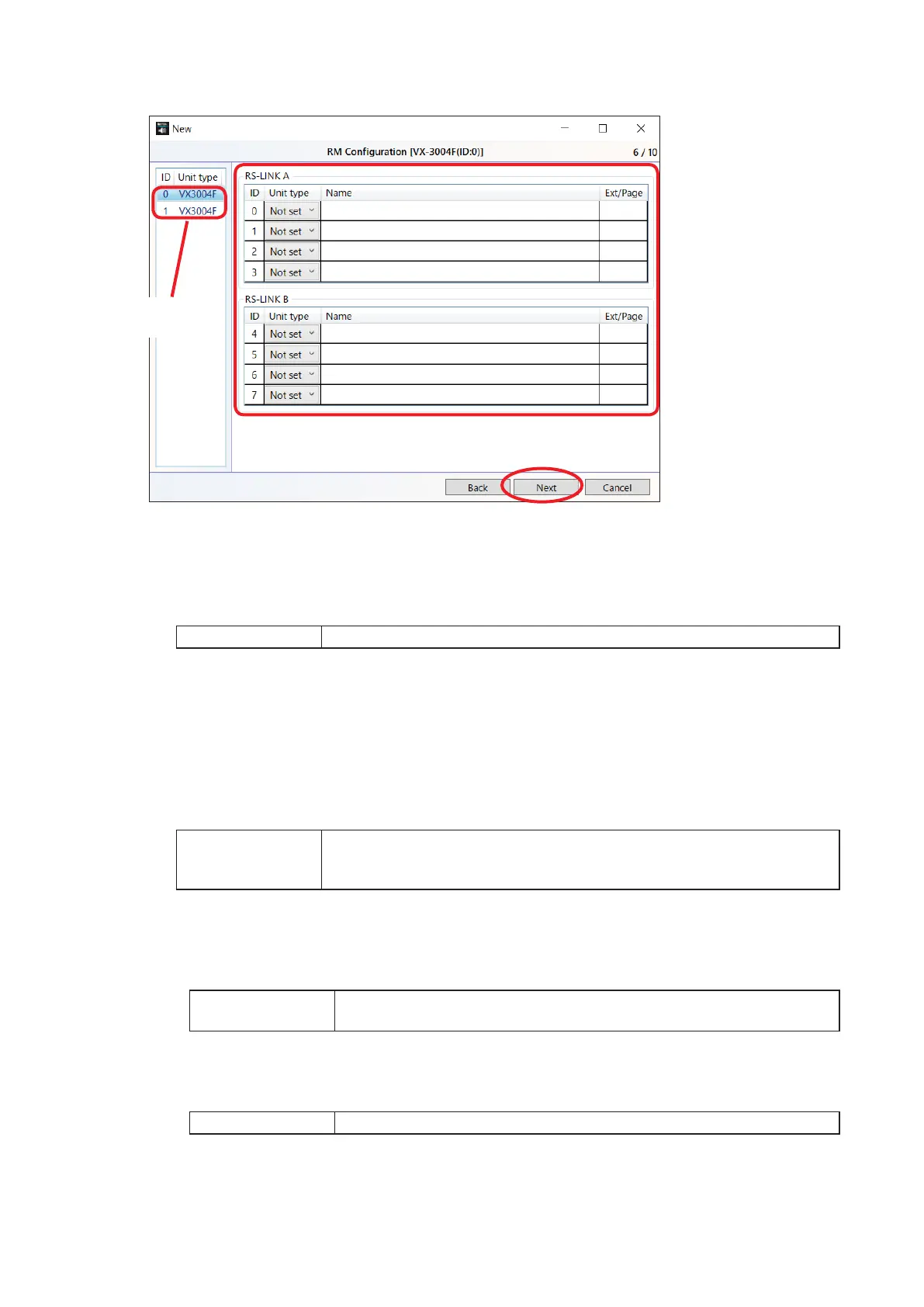

The "RM Conguration" window is displayed.
Step 12. Set the RM (Remote control microphone) conguration.
Select the VX-3000F unit on the left side of the screen and set the conguration of the remote
microphone on the right side.
VX-3000Fs
set in Step 2
12
13
(1)
(2)
(3)
(1) Unit type
Select the model number of the remote microphone.
Available Settings Not set (default), RM-200SF, RM-300X, RM-500
Note
When connecting the RM-500 to the RS LINK terminal to which the RM-200SF or the RM-300X
is connected, the ID number "7" of the RM-500 cannot be used.
In this case, set the RM-500’s ID number to between 0 and 6.
(2) Name
When "RM-200SF," "RM-300X," or "RM-500" is set to "Unit type," this item becomes active to
enter.
Enter a name of the RM-200SF, RM-300X, or RM-500.
Available Settings Up to 32 alphanumeric characters (Default name: for example, VX0-RM0
represents the RM-200SF or RM-300X of ID No. 0 connected to the VX-
3000F of ID No. 0.)
(3) Ext/Page
• When "RM-200SF" or "RM-300X" is set to "Unit type"
Set the number of the extension units connected for extending the number of switches.
Available Settings When "Unit type" is set to "RM-200SF": 0 (default) to 4
When "Unit type" is set to "RM-300X": 0 (default) to 7
• When "RM-500" is set to "Unit type"
Set the number of the pages for displaying the functions on the LCD. 10 functions can be
registered per page.
Available Settings 1 (default) to 8
