Chapter 1
NOMENCLATURE
1. VX-3004F, VX-3008F, AND VX-3016F VOICE EVACUATION FRAME
VX-3004F, VX-3008F, and VX-3016F are collectively referred to as “VX-3000F” in this manual.
• The VX-3000F is a unit designed to control the Voice evacuation announcements of the VX-3000 series voice
evacuation system.
• The VX-3000F is equipped with the audio input terminals and has the module slots for optionally accommodating
3 kinds of digital power amplier modules and a line output module.
• Compatible with network, the system can be congured in distributed arrangement.

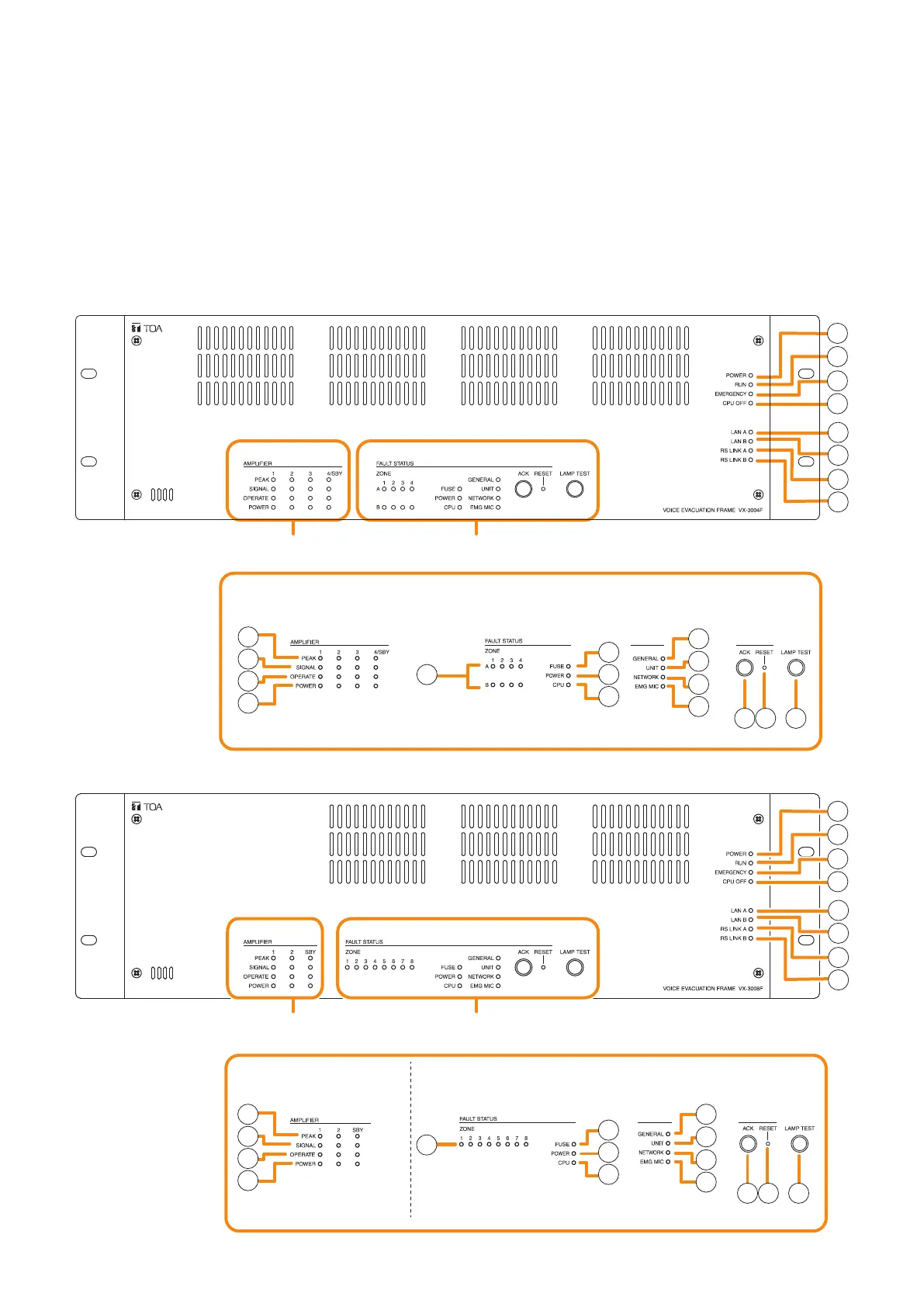

[Front]
Amplifier section Fault status section
[Amplifier section] [Fault status section]
9
10
11
12
13
14
15
16
17
18
19
20
21
22 23
1
2
3
5
6
7
8
4
VX-3004F
VX-3008F
Amplifier section Fault status section
1
2
3
5
6
7
8
[Amplifier section] [Fault status section]
9
10
11
12
13
14
15
16
17
18
19
20
21
22 23
4
