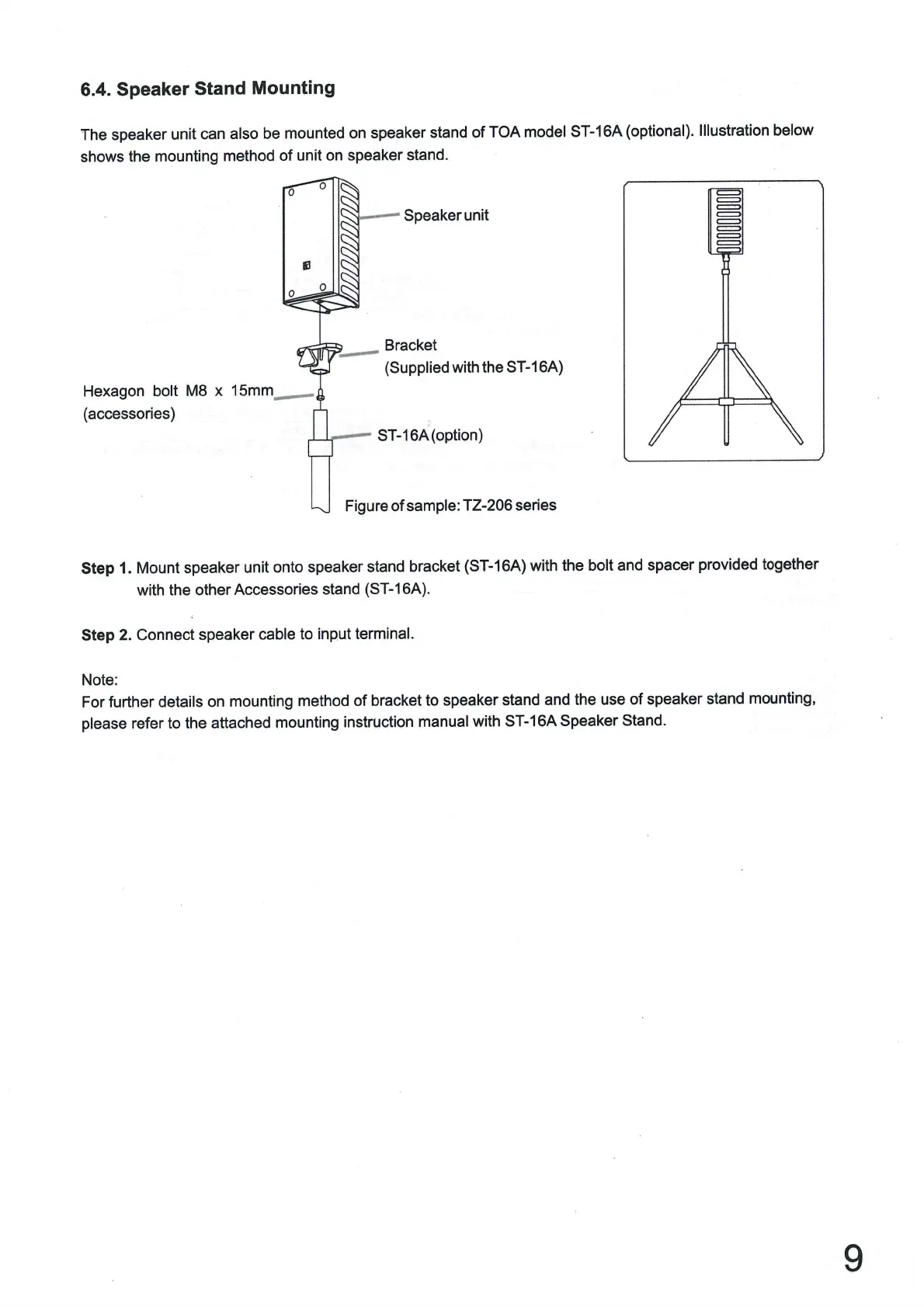

6.4. Speaker Stand Mounting
The speaker unit can also be mounted on speaker stand of TOA model ST-1 6A (optional). Illustration below
shows the mounting method of unit on speaker stand.
7
0
Speaker unit
?l
äl
äl
0?
e
o
o
3.,,, Bracket
(Supplied with the ST-1 6A)
Hexagon bolt M8 x 15mm,...,
(accessories)
ST-16A(option)
Figure of sample: TZ-206 series
Step 1. Mount speaker unit onto speaker stand bracket (ST-1 6A) with the bolt and spacer provided together
with the other Accessories stand (ST-1 6A).
Step 2. Connect speaker cable to input terminal.
Note:
For further details on mounting method of bracket to speaker stand and the use of speaker stand mounting,
please refer to the attached mounting instruction manual with ST-1 6A Speaker Stand.
9
