13
6.10. Using the CHANNEL ASSIGNMENT Switch
The CHANNEL ASSIGNMENT switch (rear-mounted) is used to switch over from the B, C or D channel to the
A channel.
When the B channel switch is set to ON, the B program output is delivered from the A channel, with the A
program output delivered from the A channel. In this event, no output is delivered from the B channel.

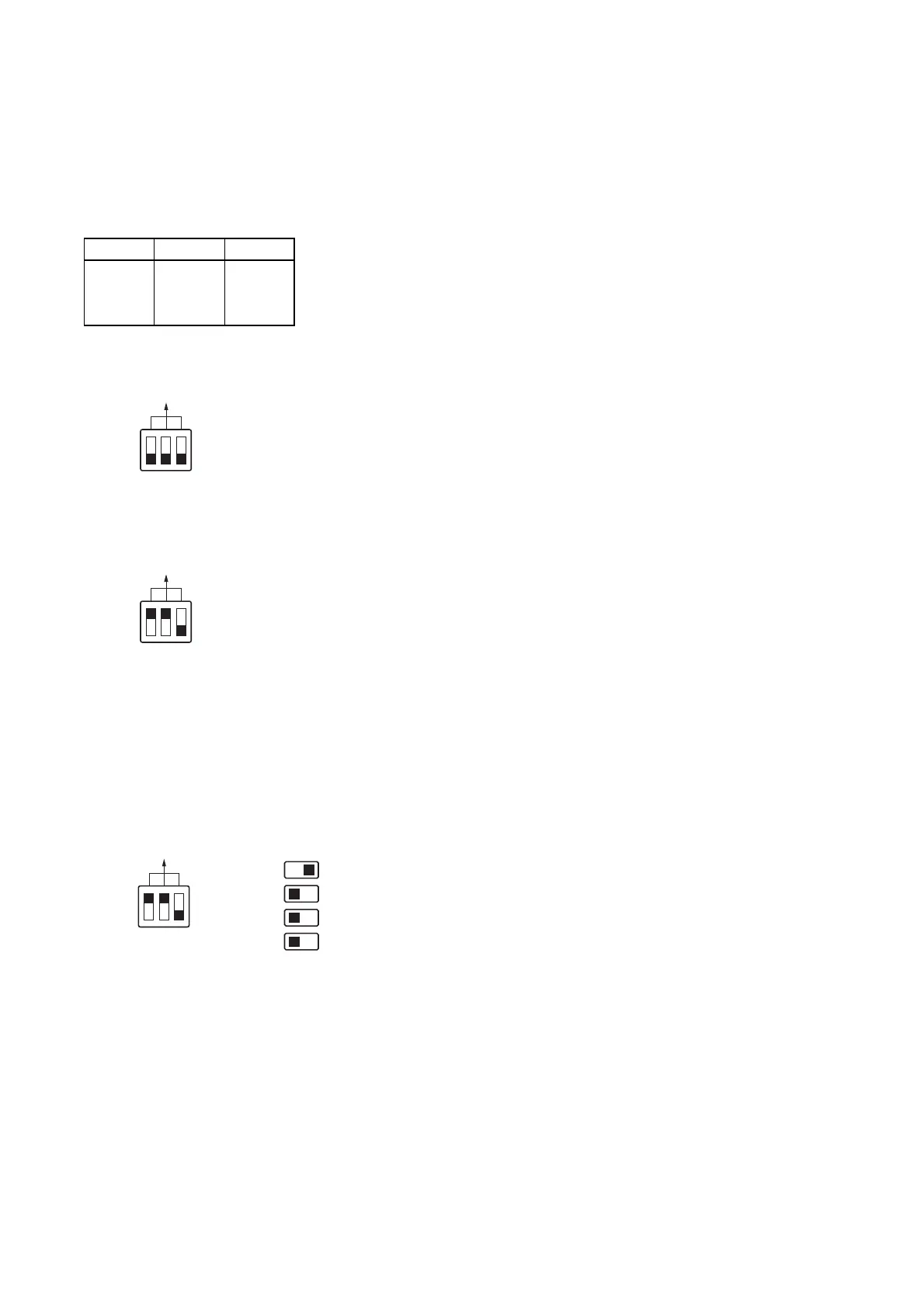

[Example 1]
Given that each of the output channels is programmed as Example 1,
the output is delivered from each channel as follows.
If all the switches are set to OFF.
A channel: Output is delivered at 8:30, 9:30 and 10:30.
B channel: Output is delivered at 9:00, 10:00 and 11:00.
C channel: Output is delivered at 12:00.
If both the B and C switches are set to ON.
A channel: Output is delivered at 8:30, 9:00, 9:30, 10:00, 10:30, 11:00, and 12:00.
No output is delivered from both the B and C channels.
6.10.1. The CHANNEL ASSIGNMENT switch vs. AUTO/OFF switches
The AUTO/OFF switches (front-mounted) are effective for the program registered into each output.
If the CHANNEL ASSIGNMENT switch of B channel is set to ON and the AUTO/OFF switch of A channel to
OFF in Example 1.
A channel delivers output at 9:00, 10:00 and 11:00.
B channel delivers no output.
C channel delivers output at 12:00.
Tips
• Since the A AUTO/OFF switch is set to OFF, the output is not delivered from the A channel at 8:30, 9:30 and
10:30 as programmed.
• Since the B channel is switched over to the A channel, the A channel delivers output at 9:00, 10:00 and
11:00, the times programmed into the B channel.
If the A channel MANUAL key is pressed under these conditions, the A output relay makes for 5 seconds.
Pressing the B channel MANUAL key causes the A channel relay to close for 5 seconds because the B output
is switched over to the A channel.
ABC
8:30 9:00 12:00
9:30 10:00
10:30 11:00
BOFF
ON
C
A
D
BOFF
ON
C
A
D
BOFF
ON
C
A
D
AUTO OFF
A
B
C
D
