28
10. INSTALLATION
10.1. Mounting the Control Unit in an Equipment Rack
Use the following optionally available mounting bracket set when installing the TS-D1000-MU Master control
unit or TS-D1000-SU Sub control unit in an equipment rack.
10.1.1. TS-D1000-MU

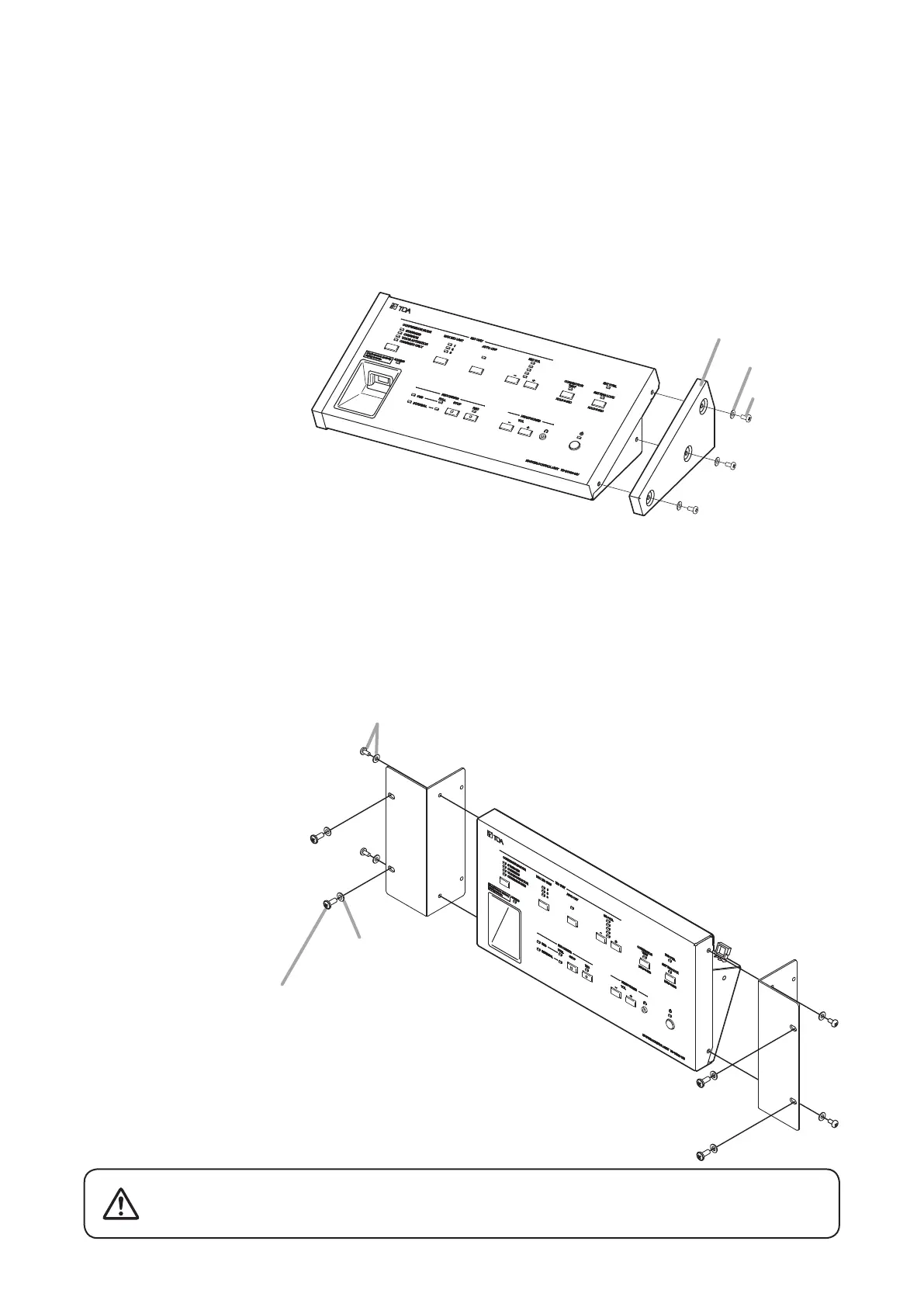

Step 1. Detach both side panels of the TS-D1000-MU.
Four of the removed screws and washers are used in Step 2.
Step 2. Attach the MB-TS920 Rack mounting bracket to both sides of the TS-D1000-MU.
Use the screws and washers removed in Step 1.
Step 3. Mount the TS-D1000-MU equipped with the mounting brackets in the rack.
Use the rack mounting screws and ber washers supplied with the rack mounting bracket.
Side panel
Washer (6 pcs)
Screw (6 pcs)
Fiber washer (for M5)
(supplied with the MB-TS920)
Four of the removed screws and washers in Step 1
2
Rack mounting screw 5 x 12
(supplied with the MB-TS920)
The rack mounting screws 5 x 12 supplied with the MB-TS920 can
be used for the TOA equipment rack only. Do not use them for other
racks.
CAUTION
