10. JOINING SPEAKERS
Joining line array speakers configures a longer linear sound source, permitting richer low-frequency sound
reproduction as well as transmission of higher sound output over a longer distance.
To join speakers, use the optional SR-EP4WP Extension plate.

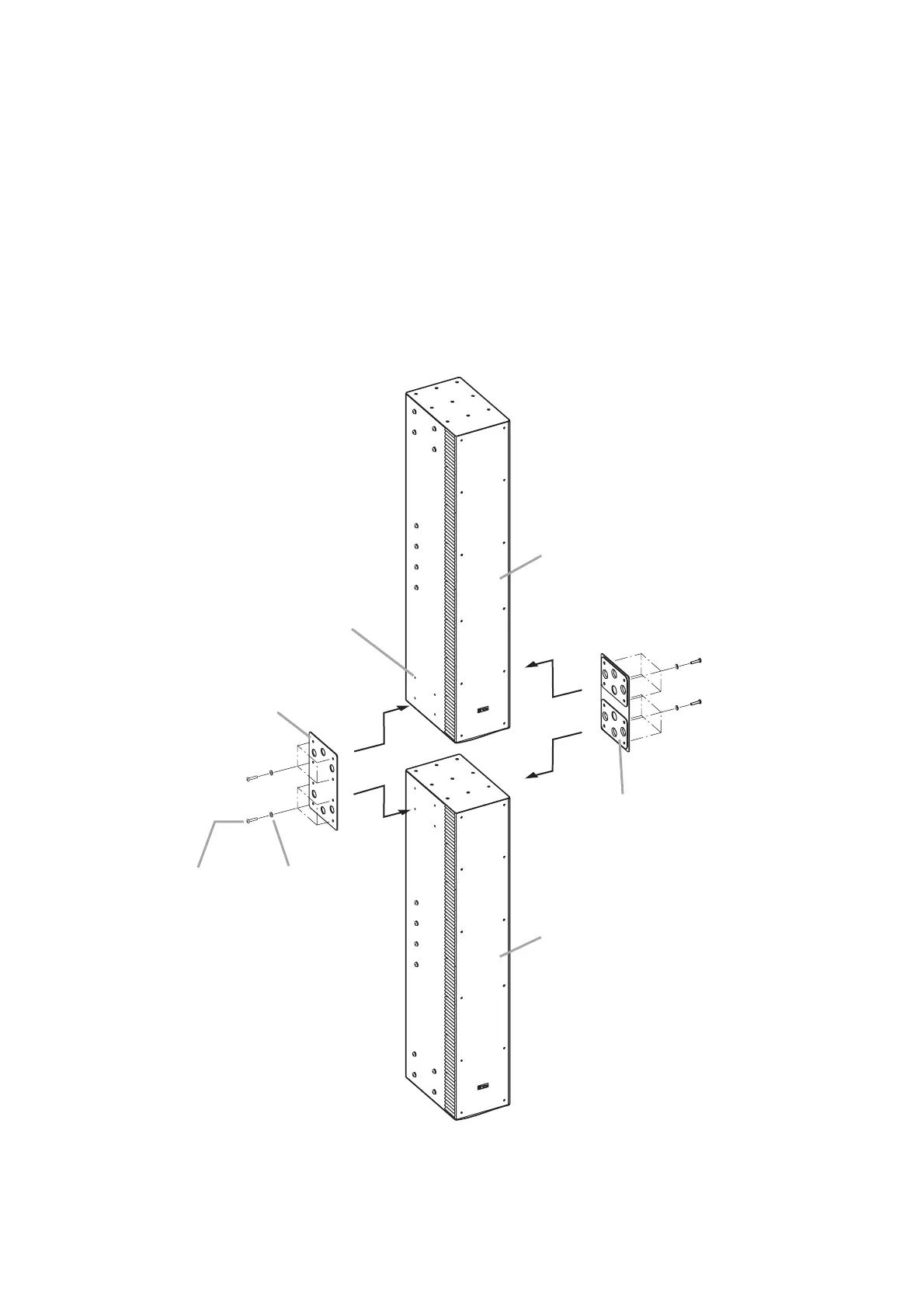

[Joining Procedure]
Step 1. Remove the screws and washers (for waterproof) on both sides of the speaker.
Step 2. Join the 2 speakers using the SR-EP4WP Extension plate and the screws and washers removed in
Step 1. In this event, orient the bracket's waterproof pad side toward the speaker's side.
Extension plate SR-EP4WP
(optional)
Screws to be removed in Step 1
(8 screws on both sides)
Washer for M5
(for waterproof)
Waterproof pad
Speaker
Speaker
Note: Must face the speaker's side.
Machine screw
M5 x 25
Note: Use the screws and washers
removed in Step 1.
Note
Maximum number of speakers to
be jointed are 3, when using 2 sets
of SR-EP4WP.
