12. USING THE SR-SB8 RIGGING SUPPORT BRACKET
27
The SR-SB8 Rigging Support Bracket is used to prevent the stacked SR-C8 series line array speakers from
tipping over. Be sure the SR-SB8 is used whenever six or more SR-C8 series speakers are stacked.
Count the SR-C15B sub-woofer as two units when configuring a system.
12.1. Level Adjuster Installation

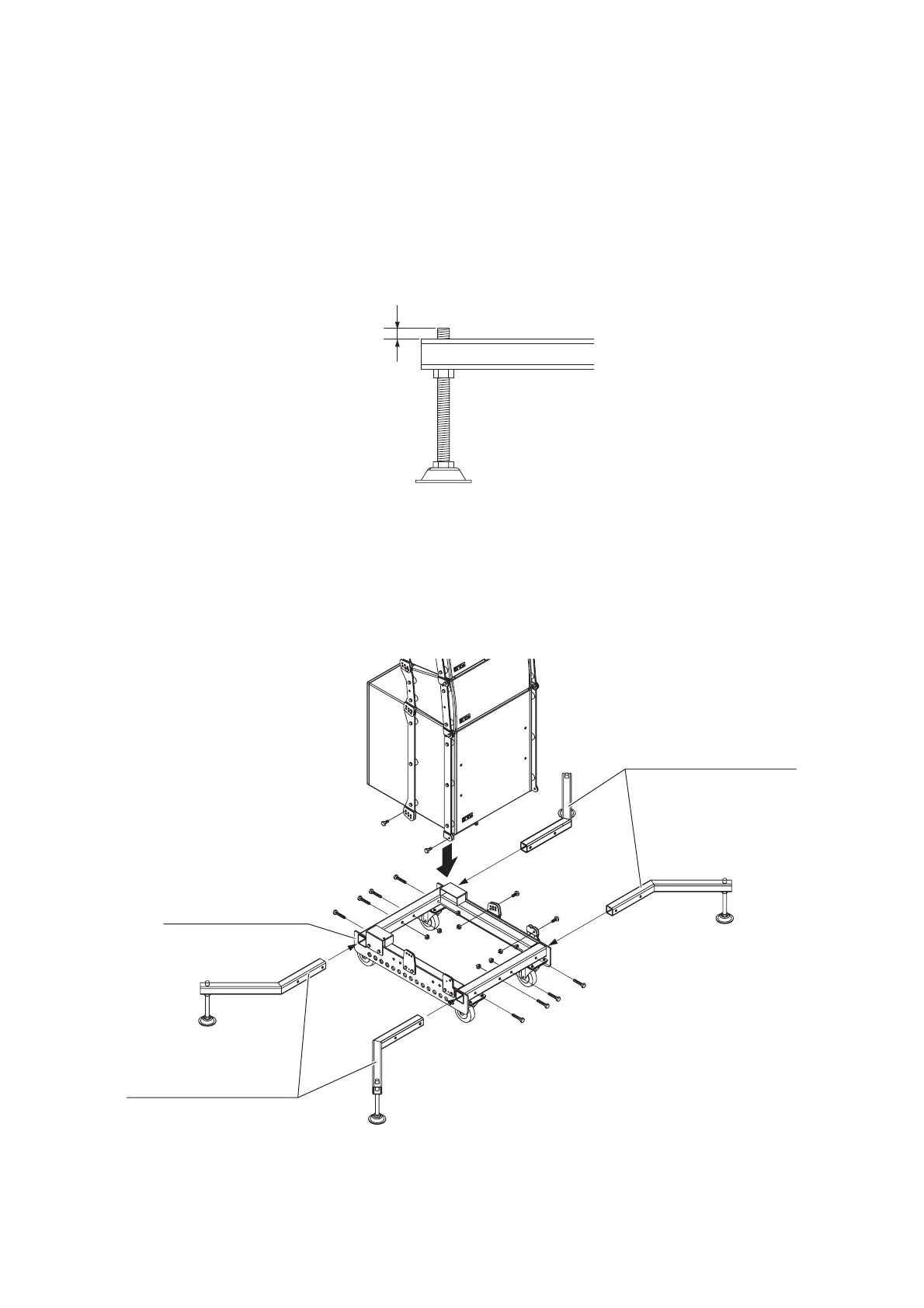

Mount a level adjuster on each rigging support bracket, referring to the following figure.
Turn each level adjuster to adjust the rigging frame height so that the tip of the adjuster projects about 30 mm
above the support bracket.
30mm
12.2. Rigging Support Bracket Installation
Mount the rigging support bracket to the rigging frame, as shown in the figure below. Ensure that all support
brackets are securely mounted using the supplied nuts and bolts.
Rigging support bracket
Rigging support bracket
Rigging frame
Step 1. Insert the support bracket into the rigging frame.
Step 2. Secure the support bracket using the supplied bolts.
