9.2. Assembling the SR-RF8WP Rigging Frame

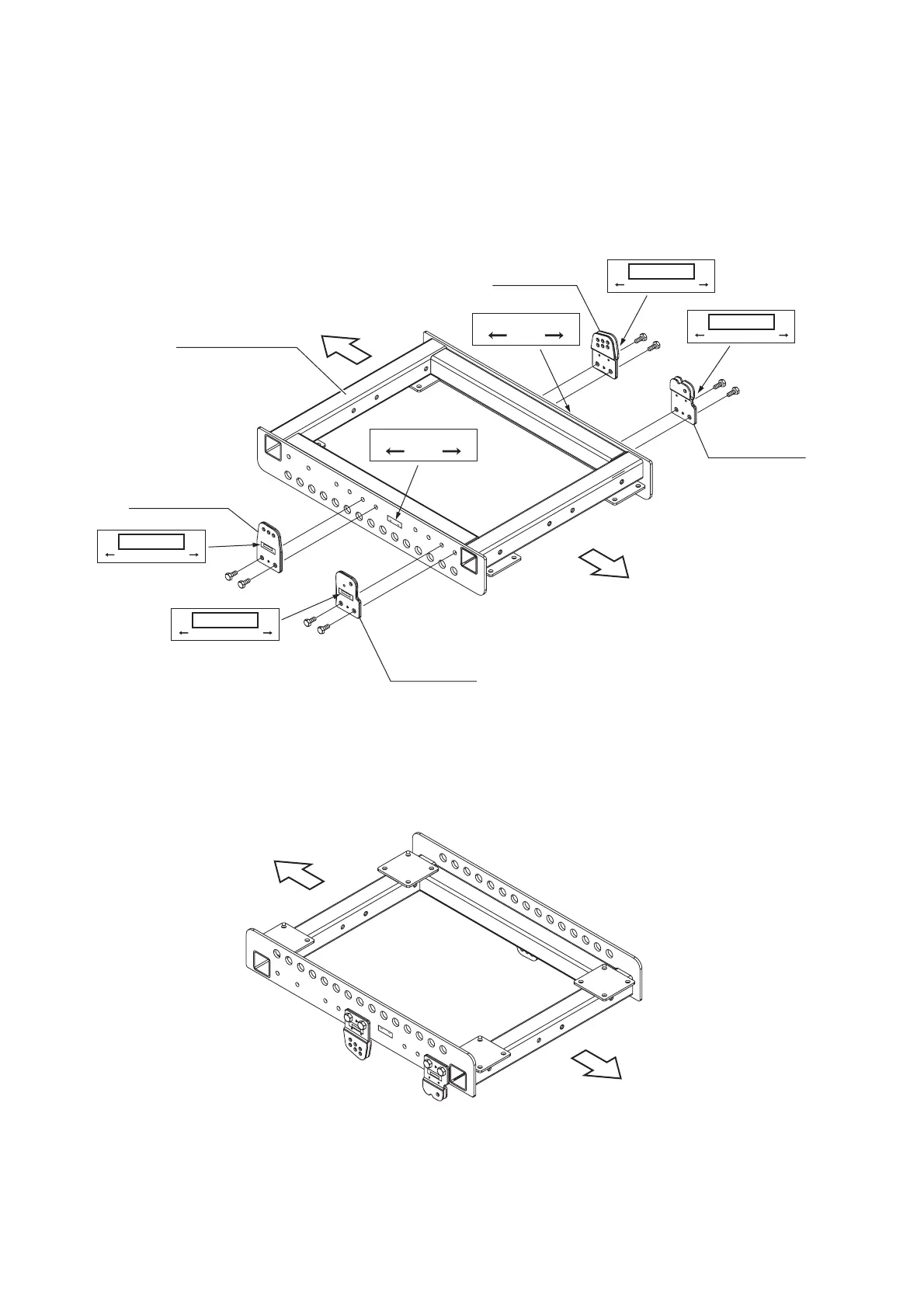

Assemble the rigging frame referring to the figure below.
Ensure that fixing plates are correctly secured using two bolts (including plain and spring washers) supplied
with the rigging frame for each plate.
Since each fixing plate has its own installation position and orientation, refer to the figure for correct assembly.
Be sure that the forward mounting holes are always used in flying applications.
FRONT
REAR
Fixing plate
[Rear B]
Fixing plate
[Front B]
Fixing plate
[Front A]
Fixing plate
[Rear A]
Rigging frame
SR-RF8WP
* Mount each plate in compliance with
the indication on each corresponding seal.
Seal
Seal
Seal
Seal
Seal
Seal
FrontRear
FrontRear
RearFront
Rear A
Front Rear
Front A
RearFront
Front B
FrontRear
Rear B
Rear Front
Fro
nt B
Fro
ntRea
r
R
ear B
Rear
Front
FRONT
REAR
RearFront
Fr
ont
A
Fron
t
Rear
Rear A
R
ear
Fr
o
nt
[Assembled frame]
