6. BI-AMPLIFIER AND SINGLE-AMPLIFIER OPERATIONS
The SR-C8 series speakers are supplied from the factory set up for bi-amplifier operation. However, this
default specification can be switched to single-amplifier operation mode by simply changing the position of an
internal connector. (Refer to page 9. "Switching to Single-Amplifier Operation Mode.")
6.1. Bi-Amplifier Operation

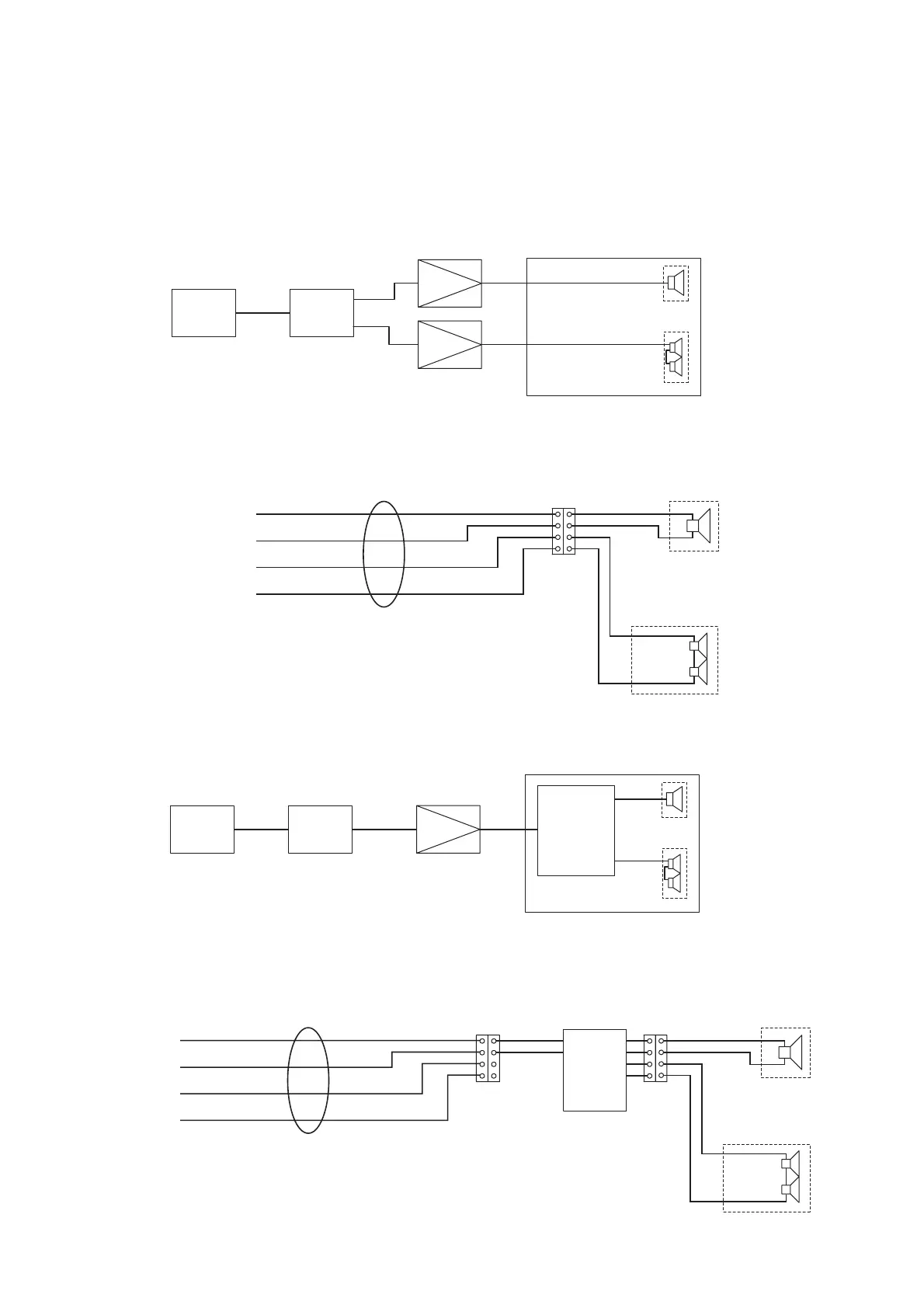

6.1.1. System diagram
Mixer/
preamplifier
Digital
processor
Power
amplifier
Passive
network
SR-C8LWP/C8SWP
LOW
HIGH
Tweeter
Woofer
Passive
network
Woofer
Tweeter
INPUT +
Green
Black
Red
White
N.C.
INPUT
-
N.C.
Speaker cable
Mixer/
preamplifier
Digital
processor
Power amplifier
SR-C8LWP/C8SWP
LOW
HIGH
LOW
HIGH
Tweeter
Woofer
LOW +
Green
Black
Red
White
HIGH +
LOW
-
HIGH
-
Speaker cable
Woofer
Tweeter
6.2. Single-Amplifier Operation
6.2.1. System diagram
6.1.2. Internal wiring diagram
6.2.2. Internal wiring diagram
