9.3. Connecting the Rigging Frame to the Speaker
Connect the rigging frame to the speaker referring to the figures below.
Confirm the positioning of the horn (SR-C8LWP and SR-C8SWP only), then correctly mount the rigging frame
to the speaker by tightening the supplied nuts and bolts from both left and right sides.
When suspending the SR-C15BWP sub-woofer, be sure to mount it in the uppermost position (i.e.
immediately below the rigging frame).
Connection plate
Connection plate
Connection plate
Connection plate

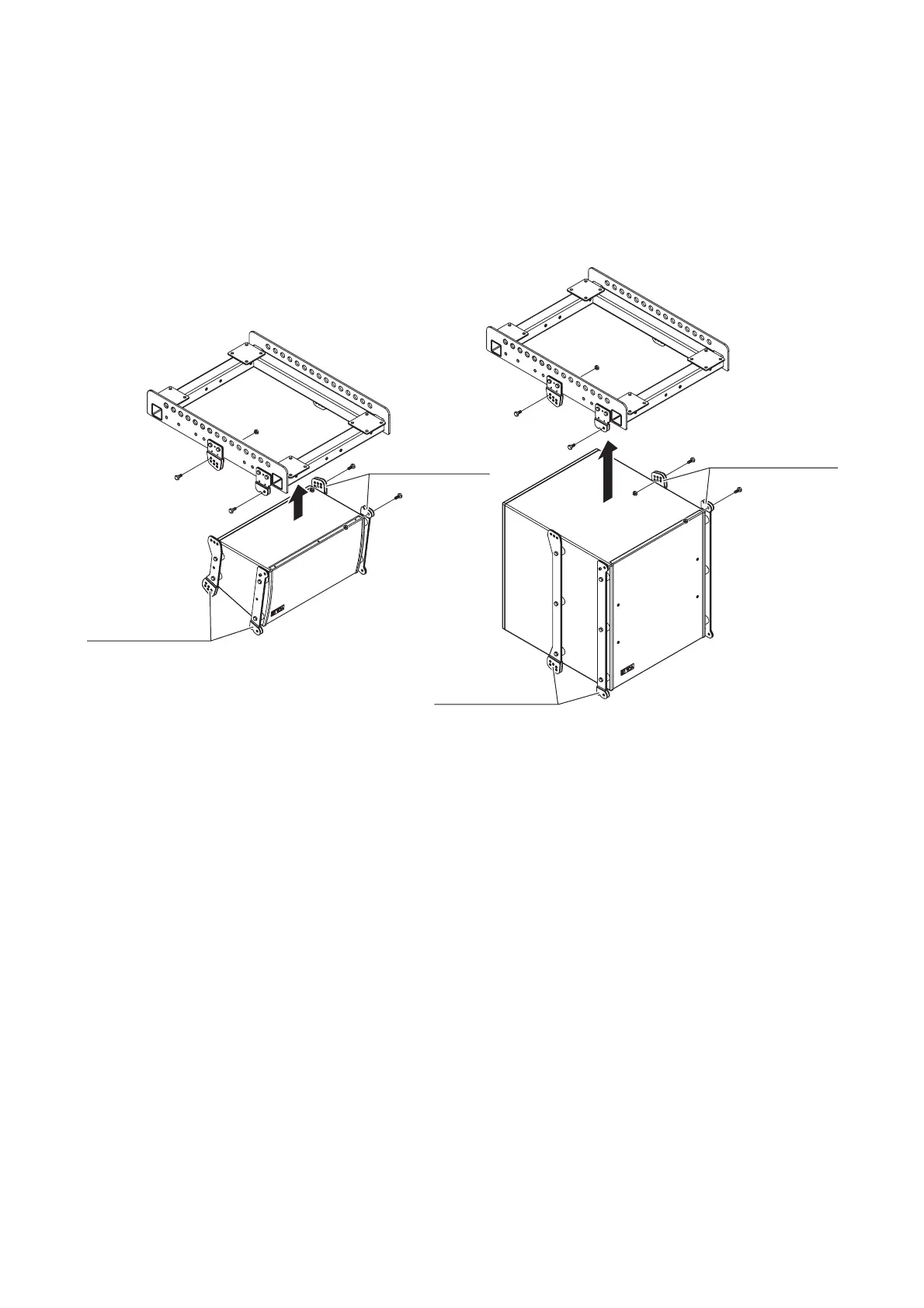

[Speaker system assembly] [Sub-woofer system assembly]
