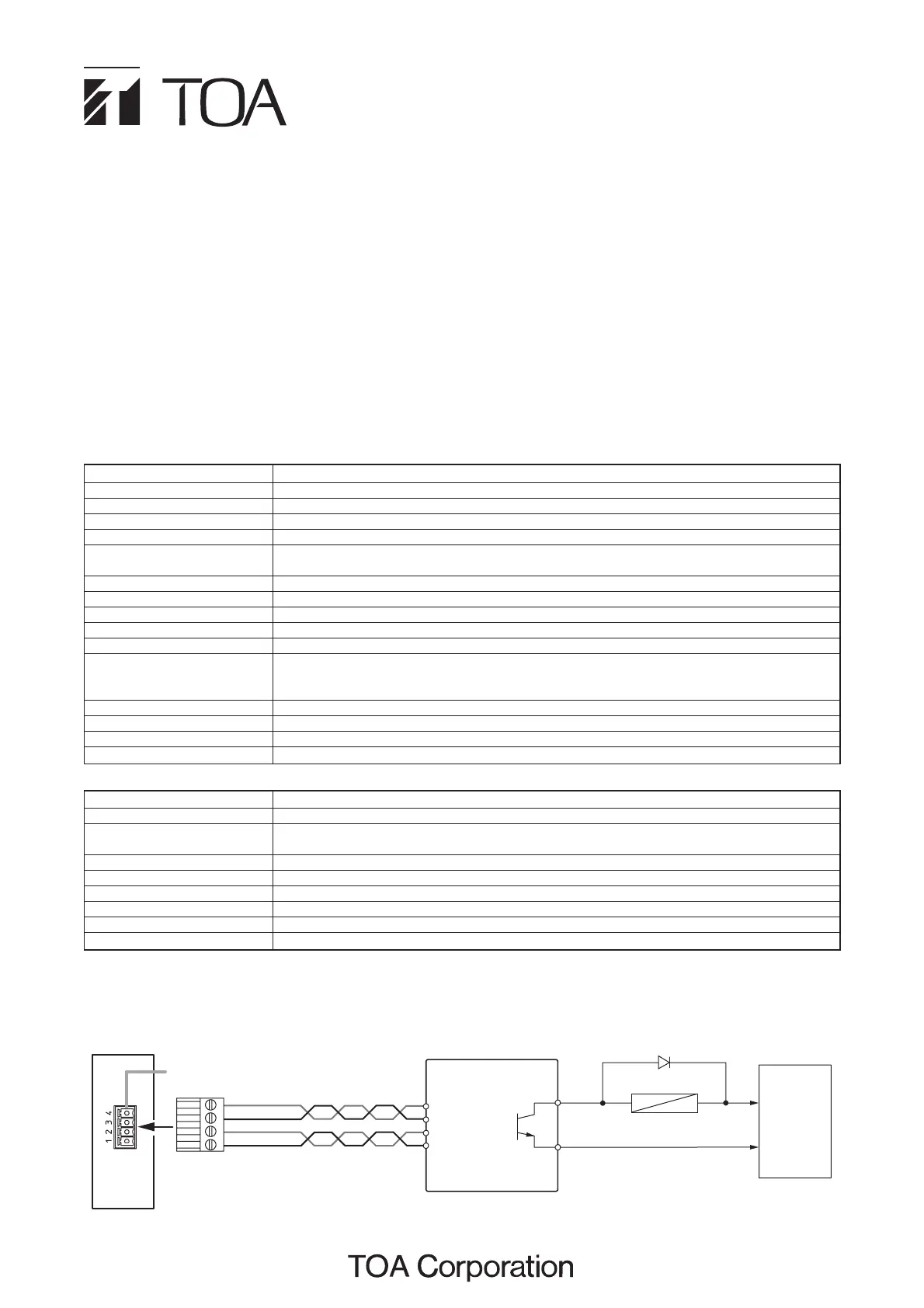

Note: For operation of the units, refer to the N-8000 series operating instructions.
1. GENERAL DESCRIPTION
The RS-480 is a substation to be connected to the N-8400RS Substation Interface Unit. The RS-481 is designed
exclusively for indoor-use in combination with the RS-480. It also features handset conversation with the RS-480.
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may
be required to take adequate measures.
2. SPECIFICATIONS
[RS-480]
RS-480
RS-481
SUBSTATION
OPTION HANDSET
INSTALLATION MANUAL
Call Button Momentary (Emergency call: Press twice within 400 ms.)
Rated Input 1 W
Control Output Open collector, Maximum controlled voltage: 30 V DC,
Control current:
30 mA
Internal Speaker Cone-type
Internal Mic Electret condenser type
Indicator When called: Status indicator (red) flashing
In conversation: Status indicator (red) lit
)riap-2( selbac riap detsiwTgniriW
Transmission Range 1000 m/ø0.5 mm (AWG24), 1500 m/ø0.65 mm (AWG22), 2000 m/ø0.9 mm (AWG19)
Operating Temperature –10 to +50°C (Temperature range not to freeze the speaker and switch)
Housing Protection BS EN62262: 2002: IK02 equivalent
Dust/Water Protection IP54
enilriah ,leets sselniatS:lenaP hsiniF
Call button: Metal, silver
Circuit board: Weather-resistant coating
Dimensions 120 (w) x 120 (h) x 50.5 (d) mm
g 575 thgieW
Accessories No.6-32UNC x 18 ... 4, Machine screw M4 x 25 ... 4
Applicable Box 2-gang electrical box: YC-302 (option)
[RS-481]
Note: The design and specifications are subject to change without notice for improvement.
Handset Receiver Dynamic type
Handset Microphone Electret condenser type
Handset Receiver Slide volume
Volume Control Maximum attenuation level: 12 – 18 dB
Operating Temperature 0 to +40°C
etihw elap ,niser SBA hsiniF
Dimensions 116 (w) x 220 (h) x 71 (d) mm
g 563 thgieW
Accessories No.6-32UNC x 18 ... 4, Machine screw M4 x 25 ... 4
Applicable Box 2-gang electrical box: YC-302 (option)
3. CONNECTIONS
3.1. RS-480, N-8400RS, and external relay connections
External
power supply
Relay
Diode
24 V DC
GND
+
-
Open collector output: 24 V DC, Max. 30 mA
RS-480
Substation connection terminal
N-8400RS Substation interface unit
Line 3: Orange, Line 4: Yellow
Line 1 : Brown, Line 2: Red,
Yellow
Orange
Red
Brown
Blue
Green
Note: Cut out the control cables if they are not used to avoid short-circuiting.
