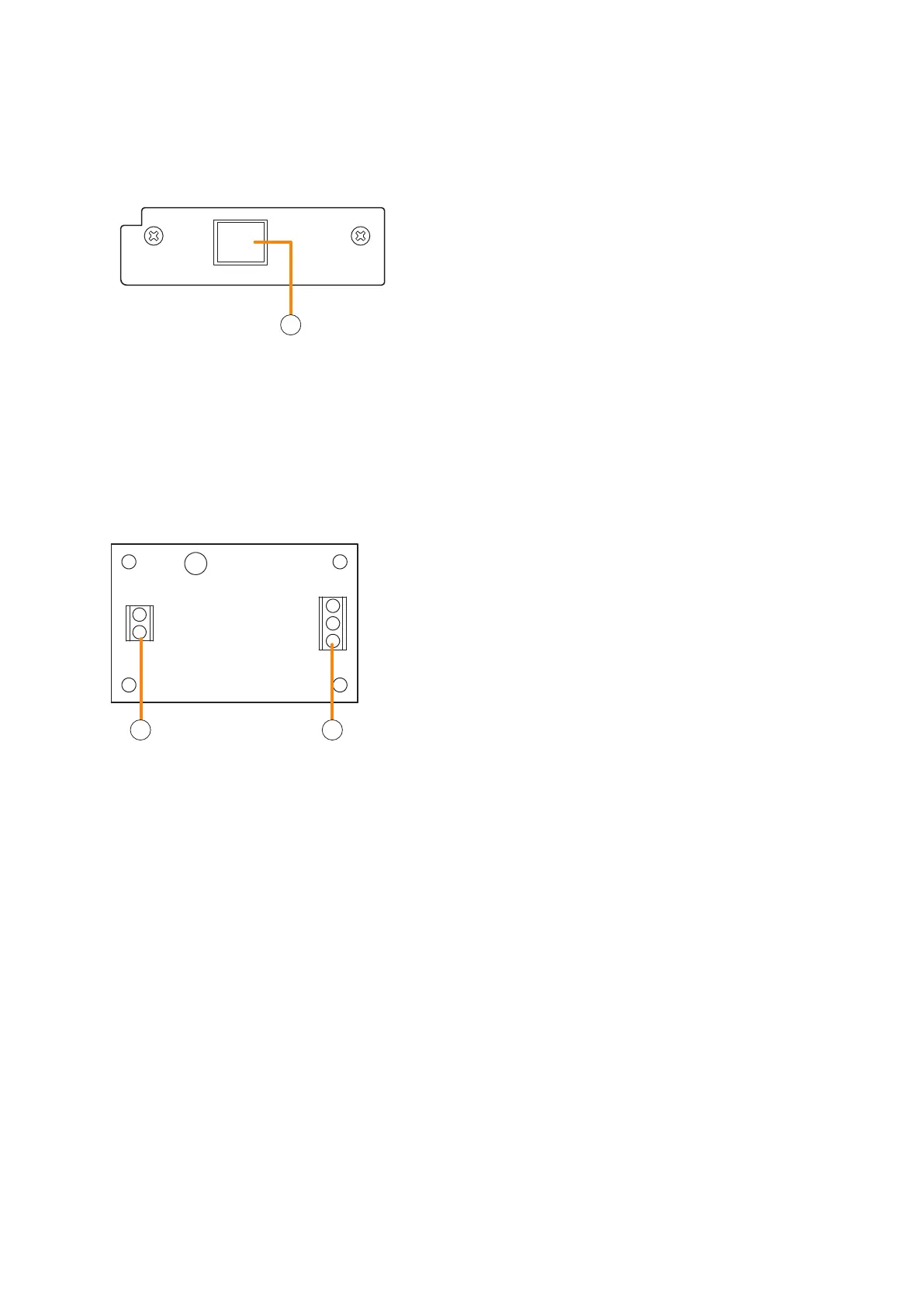

4.8. VP-200VX Power Amplifier Input Module
Insert this module into the Power Amplifier's Input module slot when in use.
G
C
CN2
CN1
H
C
E
1
2
1. Control line connection screw terminal (CN 2)
Connect to the VM-3240VA, VM-3360VA, VM-3240E, or
VM-3360E unit's emergency input terminal.
2. Speaker line connection screw terminal (CN 1)
Connect to the speaker line end.
PA LINK VP-200VX
[Front]
1
1. Input connector [PA LINK]
This RJ45 connector connects to the VM-3240VA's or
VM-3360VA'sEXT.PALINKconnector.
Output audio signals are transmitted to the power
amplier, and the power amplier's audio monitor
signals are returned to the module.
It is also possible to retrieve data regarding power
amplieroverheatingstatusandblownDCfuses.
4.9. VM-300SV End of Line Unit
Speaker line failure can be detected when an EOL unit is connected between the speaker line end and the
emergency input terminal of the VM-3240VA, VM-3360VA, VM-3240E, or VM-3360E.
