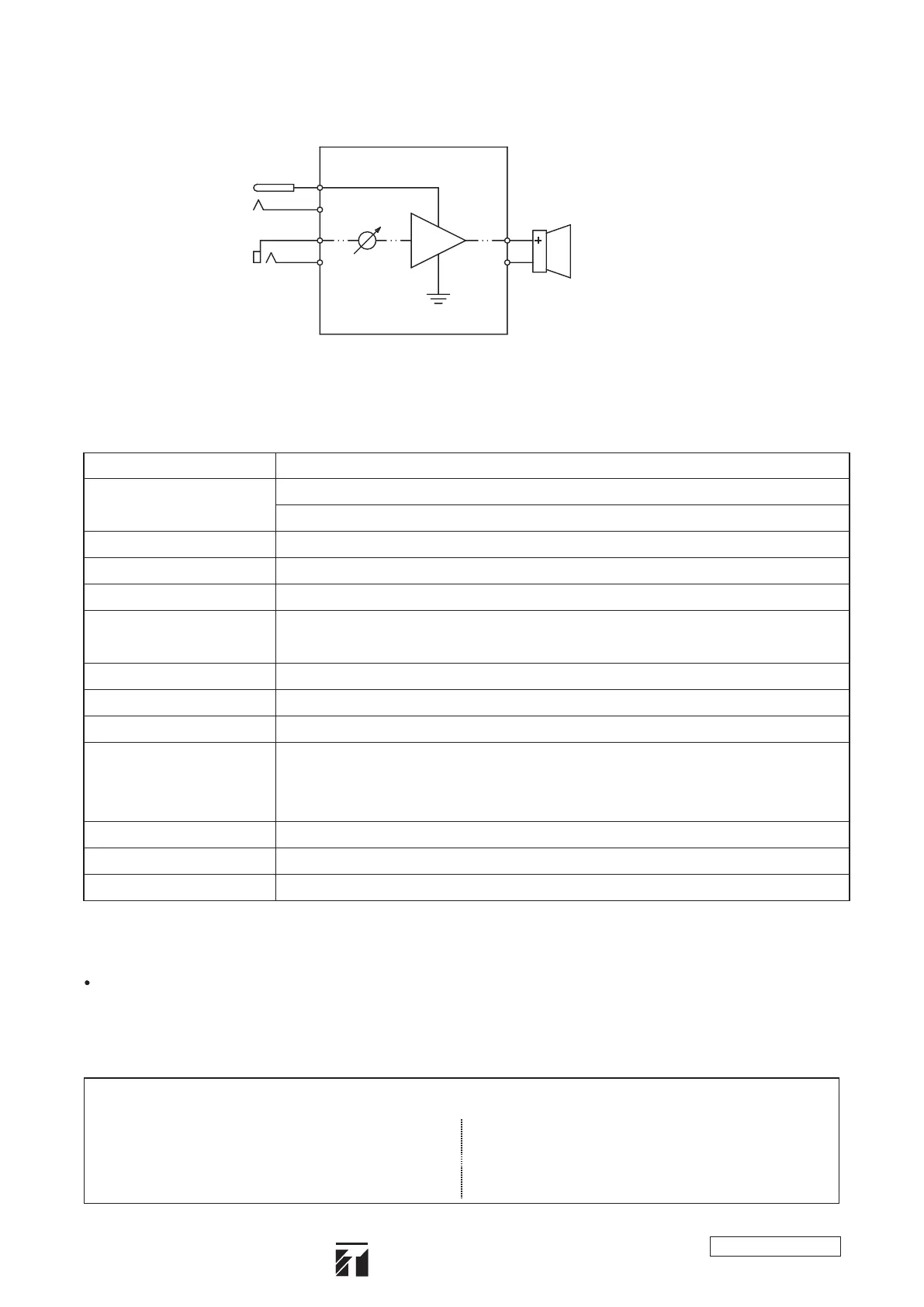

Handleiding
Je bekijkt pagina 4 van 4
133-01-00101-00
www.TOAcanada.com
Traceability Information for Europe
Manufacturer: Authorized representative:
TOA Electronics, Inc.
400 Oyster Point Blvd, Suite 301
South San Francisco, CA, 94080, USA
PT. TOA GALVA INDUSTRIES
Jl. Raya Bogor km 34-35, Tapos
Depok 16958, Indonesia
Note: The design and specifications are subject to change without prior notice for improvement.
Optional product
Power Source 12V DC, 2A ( DC Socket “+” Type A : 5.5 x 2.1mm )
Power Consumption
15W (1.25A) at Rated output
25W (2.10A) at Maximum output
Input 0 dB*, 10kΩ, Unbalanced (RCA plug)
Signal Gain 8, 16, 24 or 32 dB ( Factory pre-set to 16dB )
Volume Adjustment Internal volume control ( Factory pre-set to maximum position )
113dB ( 1W, 1m at 500 Hz to 2.5 kHz peak level )
Max. SPL ( above 120dB )
Sound Pressure Level
Frequency Response 250 - 10,000 Hz
Operating Temperature
-20°C to +55°C ( must be free from dew condensation )
Dust/Water Protection IP 65
Horn Flare: HIPS resin, white ( RAL9010 equivalent )
Finish Reflector horn and case: ABS resin, white ( RAL9010 equivalent )
Bracket, screws & bolts:
Cable Cord
Length: 2m Flying Lead ( RCA plug ) & DC socket ( ”+” )
Dimensions 292 (W) x 230 (H) x 280 (D) mm
Weight Approx. 1.8 kg
Stainless steel
0 dB = 1 V
AD-5000-2 (LTE24E-S2-1) AC Adapter: Use this adaptor for supply voltage DC12V to product.
8. SPECIFICATIONS
Power Amplfier Module
DC Input
Audio Input
(12V)
32 dB
4
0
+
-
* Factory setting preset :
- Internal volume : maximum
- Setting gain : 16 dB
Ω
Shown below is a connection diagram when shipped from the factory.
7. WIRING DIAGRAM
