6
White
Black
Brown
Red
Yellow
Green
Speker leads
Input
High impedance
100 V line
30 W 15 W 10 W 5 W
High impedance
70 V line
30 W 15 W 7.5 W 5 W 2.5 W
Impedance 170Ω 330Ω 670Ω 1kΩ 2kΩ
Speaker leads
HOT Green Black Brown Red Yellow
COM White White White White White
Speaker body
(bottom side)
Switch
cover
BEAM TILTING
DOWNWARD
FLAT
ON
OFF
HIGH PASS FILTER
(VERTICAL BEAM ANGLE)
(450Hz -12dB/oct)
Switch name Setting
BEAMTILTING FLAT
HIGHPASSFILTER OFF
These switches are factory-preset as follows.

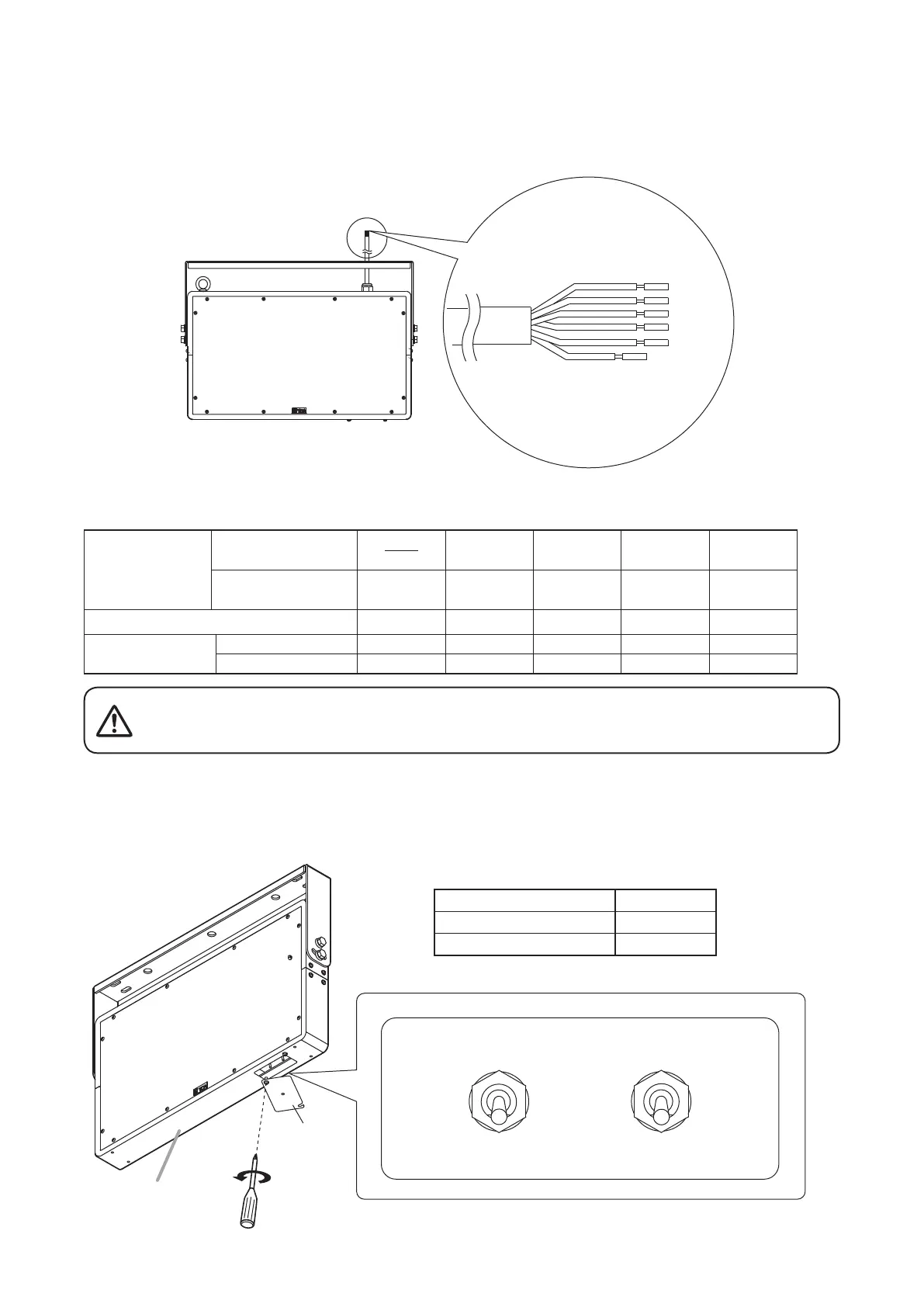

5. SETTING
5.1. Impedance Setting
Referringtothetablebelow,usethespeakerleadscorrespondingtoyourdesiredimpedance(ratedinput)for
connectiontotheamplier.
The green lead is for high impedance 70 V line use only.
Never use it on high impedance 100 V line since the amplifier or
speaker itself may be damaged.
CAUTION
Notes
•Besuretoinsulateunusedleadssoasnottoshort-circuit.
•Waterproofthecablejointbywrappinginsulatingtapearounditwhenthejoint
may be exposed to rain or water.
5.2. Beam Tilting and High Pass Filter Settings
To change the setting, loosen 2 screws on the bottom surface of the speaker, open the switch cover, then
change the setting using the toggle switch.
