Handleiding
Je bekijkt pagina 3 van 8
Ceiling cover
Cover-retaining nut
TightensLoosens
6
7
COM
HOT
3

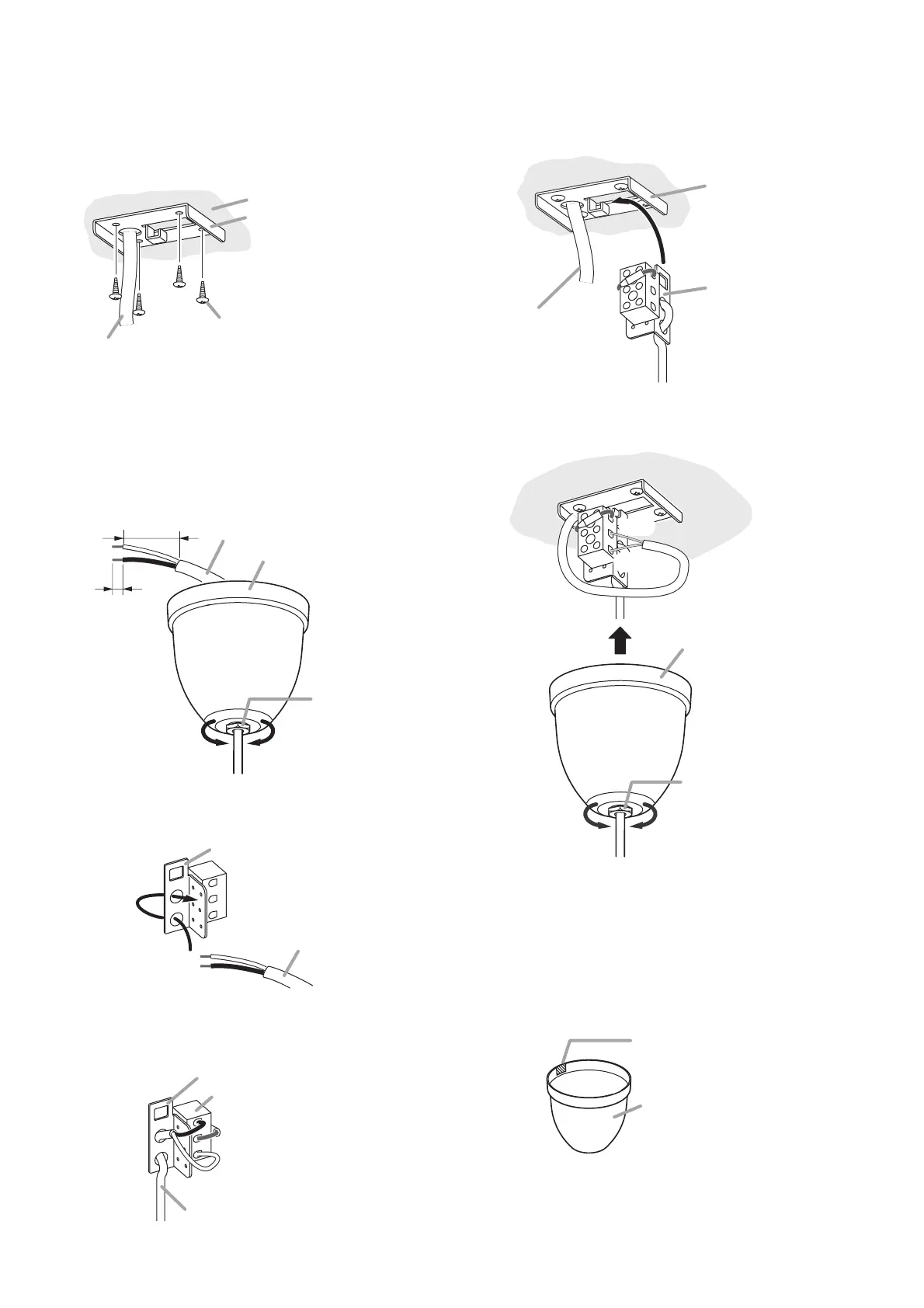

4. INSTALLATION
Step 2. Pass the speaker cable through the supplied
ceiling cover, and cut the cable to the
desired length.
Step 1. Secure the ceiling bracket to the ceiling with
4 screws.
Pull the cable through the cable hole in the
bracket.
Ceiling bracket (accessory)
Ceiling
Tapping screw 4 x 16 (accessory)
Note
If these screws are not appropriate
for the ceiling material, separately
prepare the proper screws.
Cable
(from the amplifier)
Ceiling cover (accessory)
Cover-retaining nut
TightensLoosens
8 mm
(0.31")
55 mm
(2.17")
Speaker cable 5 m (16.4 ft)
Step 3. Run the speaker cable through the cable
holes in the mounting hanger.
Mounting hanger (accessory)
Speaker cable
Step 4. Connect the speaker cable to the screw
terminal.
Speaker cable
Mounting hanger (accessory)
Screw terminal
HOT (Black)
COM (White)
Ceiling bracket
(accessory)
Cable
(from the amplifier)
Mounting hanger
(accessory)
Step 5. Put the mounting hanger onto the ceiling
bracket's hook.
Step 6. Connect the cable (from the amplifier) to the
screw terminal.
Step 7. Push the ceiling cover, slipped over the
connected cables, onto the ceiling surface,
then tighten the cover-retaining nut using a
17 mm (0.67") hex wrench.
In the case of exposed wiring, cut out the
cable entry tab on the rim of the cover, then
make connections.
Ceiling cover
Cut out this thin tab.
(another tab is on the
opposite side.)
