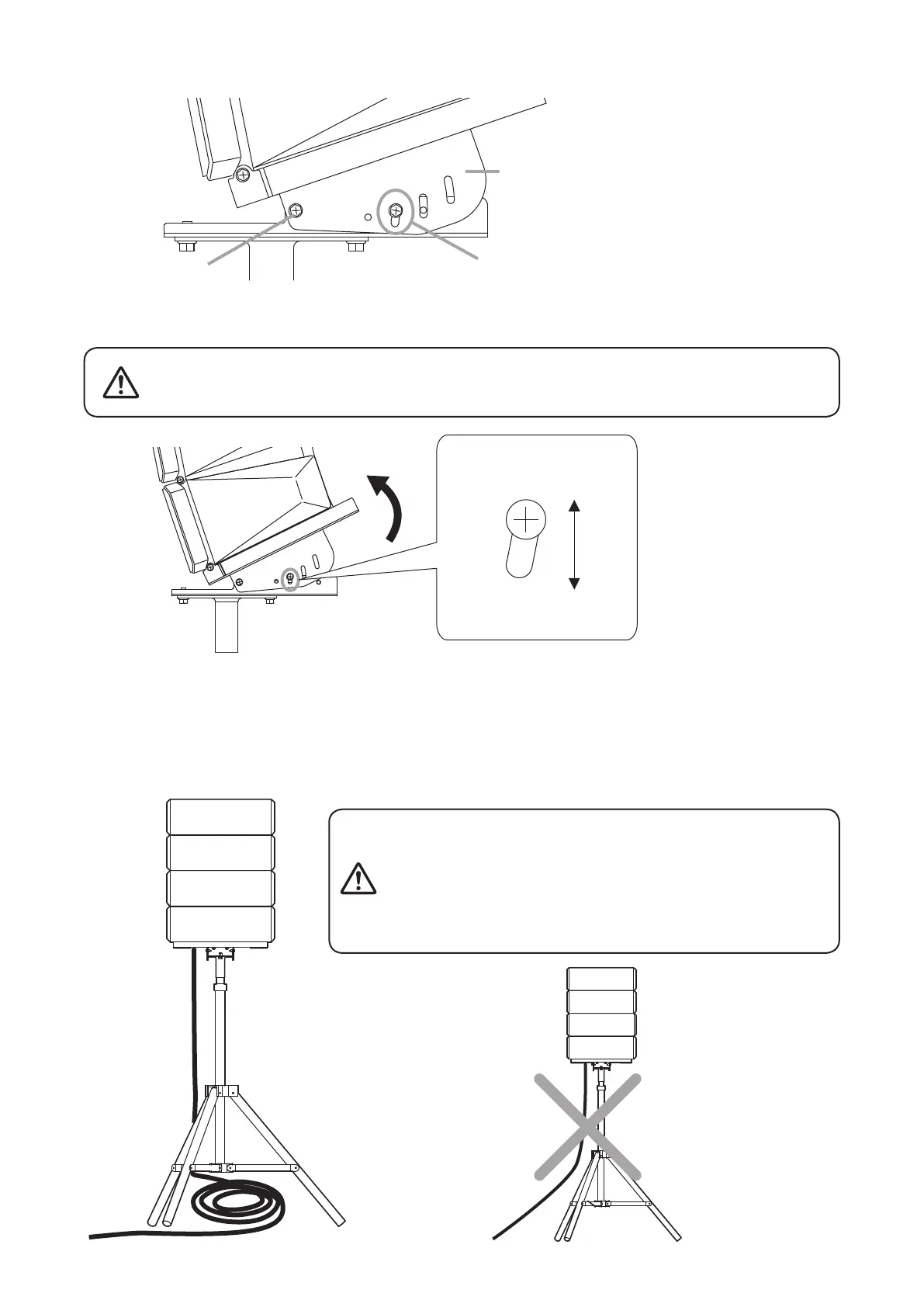

7-1. Loosen the angle bracket’s fulcrum bolts and angle setting bolts.
45
30
15
0
Angle bracket
Angle setting bolt
Fulcrum bolt
7-2. Lift the angle bracket, including the speaker with the fulcrum bolt as a fulcrum, so that the required
downward angle can be obtained.
Whenliftingtheanglebracket,supportthestandrmly,asthespeaker’s
centerofgravitycanmoveandthespeakermaybeliabletotoppleover.
WArNING
45
30
30
Downward angle 0º
Downward angle 7.5º
15
0
Thegureshowstheanglesettingwhenin30°mode.Thedownwardanglecanalsobesetsimilarly
withintherangeof0°to7.5°whenin0°and15°modes.However,thedownwardanglecannotbeset
whenin45°mode.
7-3. Aftertheangleisdetermined,tightentheloosebolts.(Tighteningtorque:3N·m)
[Completed installation]
First bundle speaker cables under
the speaker stand, then perform
cable routing and other processing.
If the cable is left slack, people may
trip on it and the speaker could
fall down, potentially resulting in
personal injury.
WArNING
