5. INSTALLATION

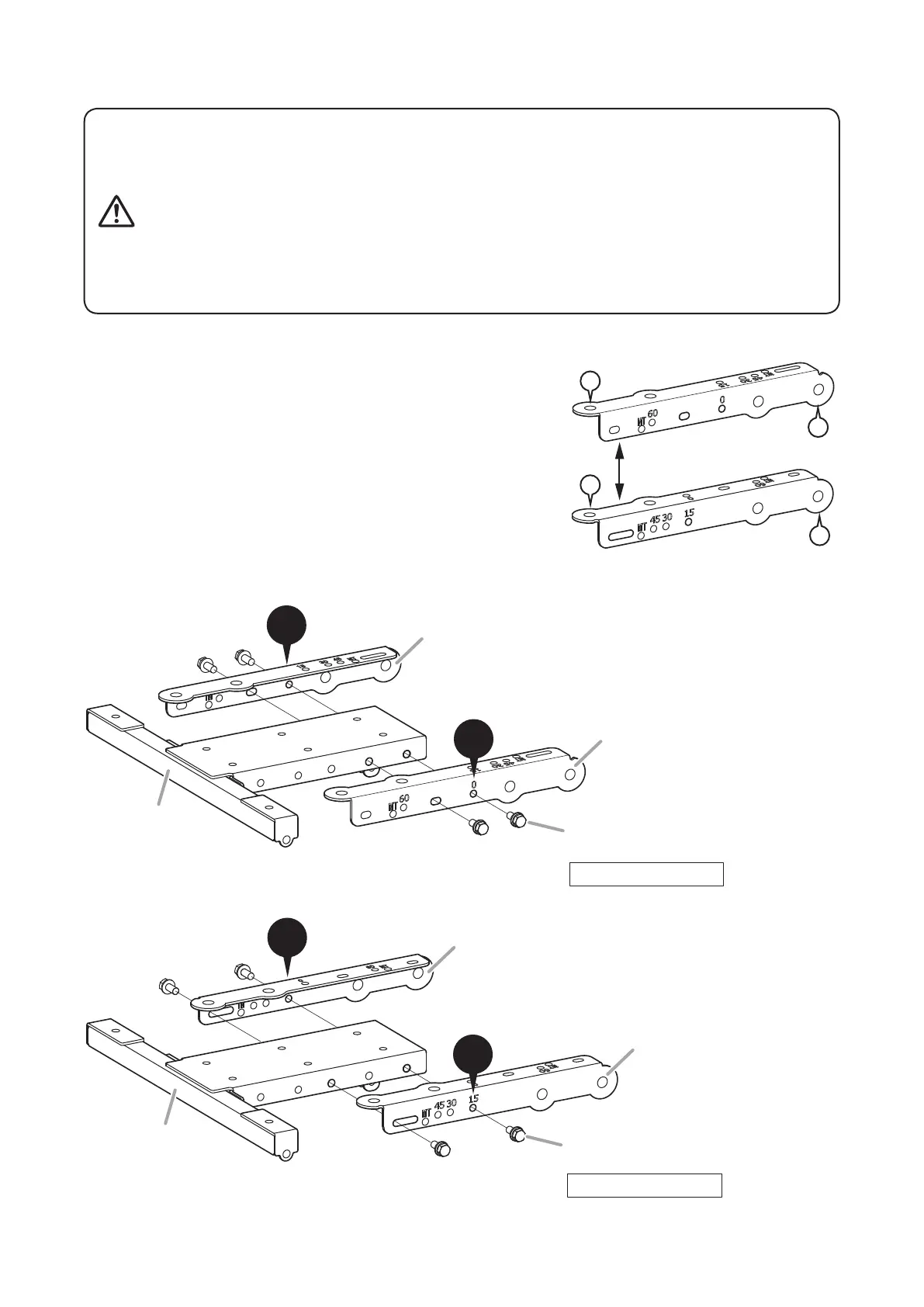

Step 1. Attach the two Mode brackets to the T-bracket.
Tighten at 4 positions using the supplied bolts.
Note
The orientation and mounting holes of the Mode brackets
will differ depending on the speaker’s directivity angle
mode. Attach the Mode brackets so that their directivity
anglemodeindicatorsareuprightasviewedfromtheside
after mounting.
[0° and 60° modes]
[15°, 30°, and 45° modes]
Rotate the front, rear, left
and right sides.
A
B
A
B
[0° mode]
[15° mode]
T-bracket
Mode bracket
Mode bracket
0°
0°
Hex head bolt M8 x 20 with spring
and plain washers (accessory)
Tightening torque: 8 N·m
15°
15°
T-bracket
Mode bracket
Mode bracket
Hex head bolt M8 x 20 with spring
and plain washers (accessory)
Tightening torque: 8 N·m
• Usesafetywireswheninstallingspeakers.
If not used, personal injury could result if a speaker should accidentally
fall.
• Tightentheboltssecurely,asinstructedbelow.
Failure to follow instructions precisely could result in a falling speaker
and potential personal injury.
· Ensure that all bolts are securely inserted as far as their threads go,
then securely fasten each bolt with a nut.
· Tighten all the bolts with the designated tightening torque.
Fortightening,useaPhillipsscrewdriver,oropen-orbox-endwrench.
wArNINg
