4

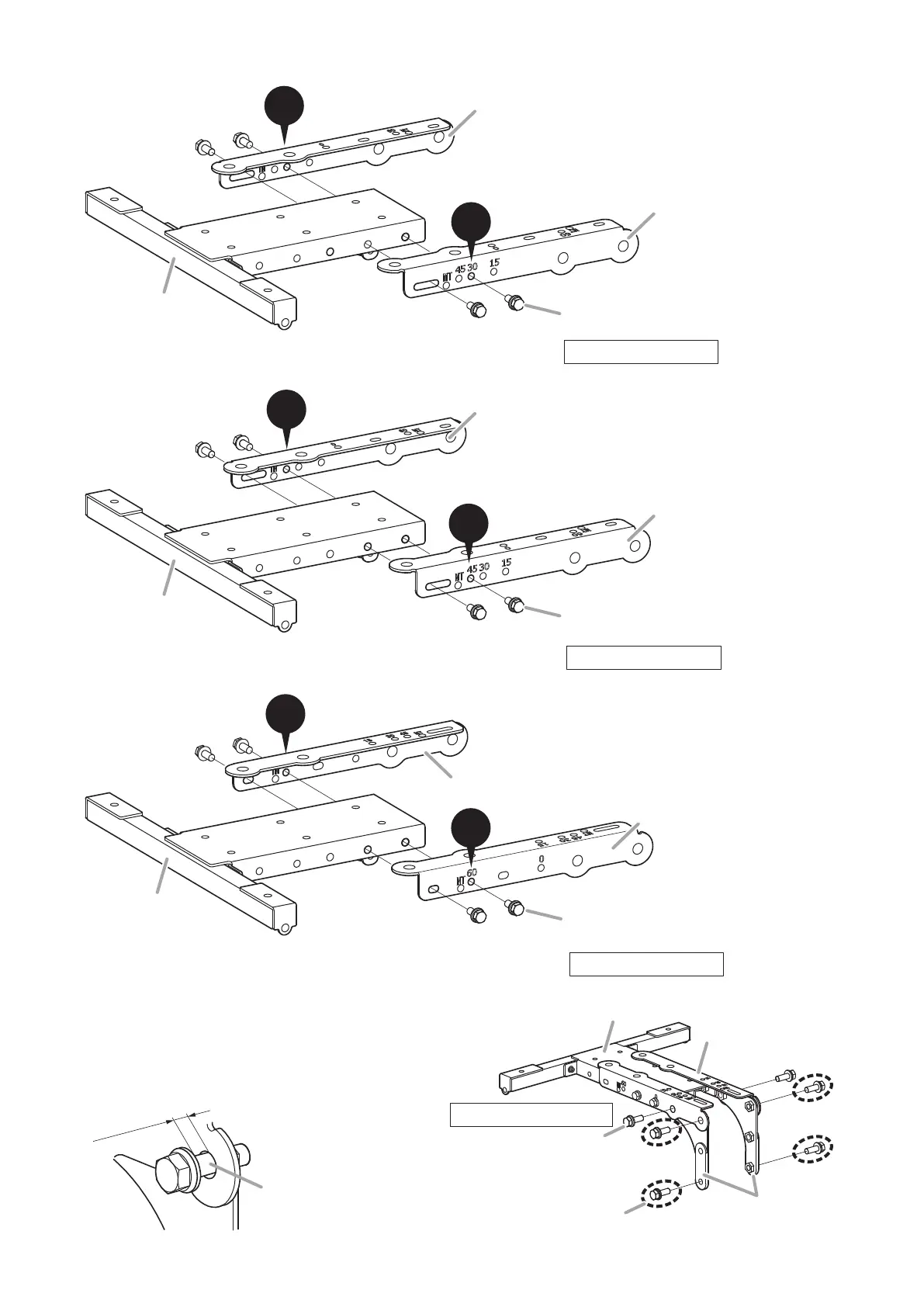

[30° mode]
30°
30°
T-bracket
Mode bracket
Mode bracket
Hex head bolt M8 x 20 with spring
and plain washers (accessory)
Tightening torque: 8 N·m
[45° mode]
45°
45°
T-bracket
Mode bracket
Mode bracket
Hex head bolt M8 x 20 with spring
and plain washers (accessory)
Tightening torque: 8 N·m
[60° mode]
60°
60°
T-bracket
Mode bracket
Mode bracket
Hex head bolt M8 x 20 with spring
and plain washers (accessory)
Tightening torque: 8 N·m
Step 2. Attach the L-brackets to the Mode bracket.
Tighten at 6 positions using the supplied
bolts. However, only partially insert bolts
at 4 positions (circled by dotted lines), as
showninthegurebelow.
Partially insert the bolt
with a gap as illustrated.
5 – 10 mm
(0.2" – 0.39")
T-bracket
L-bracket
Tighten the 4 bolts partially.
Mode bracket
Hex head bolt M10 x 30
with spring and plain
washers (accessory)
Tightening torque: 15 N·m
