Mounting Bracket
Mounting Bracket

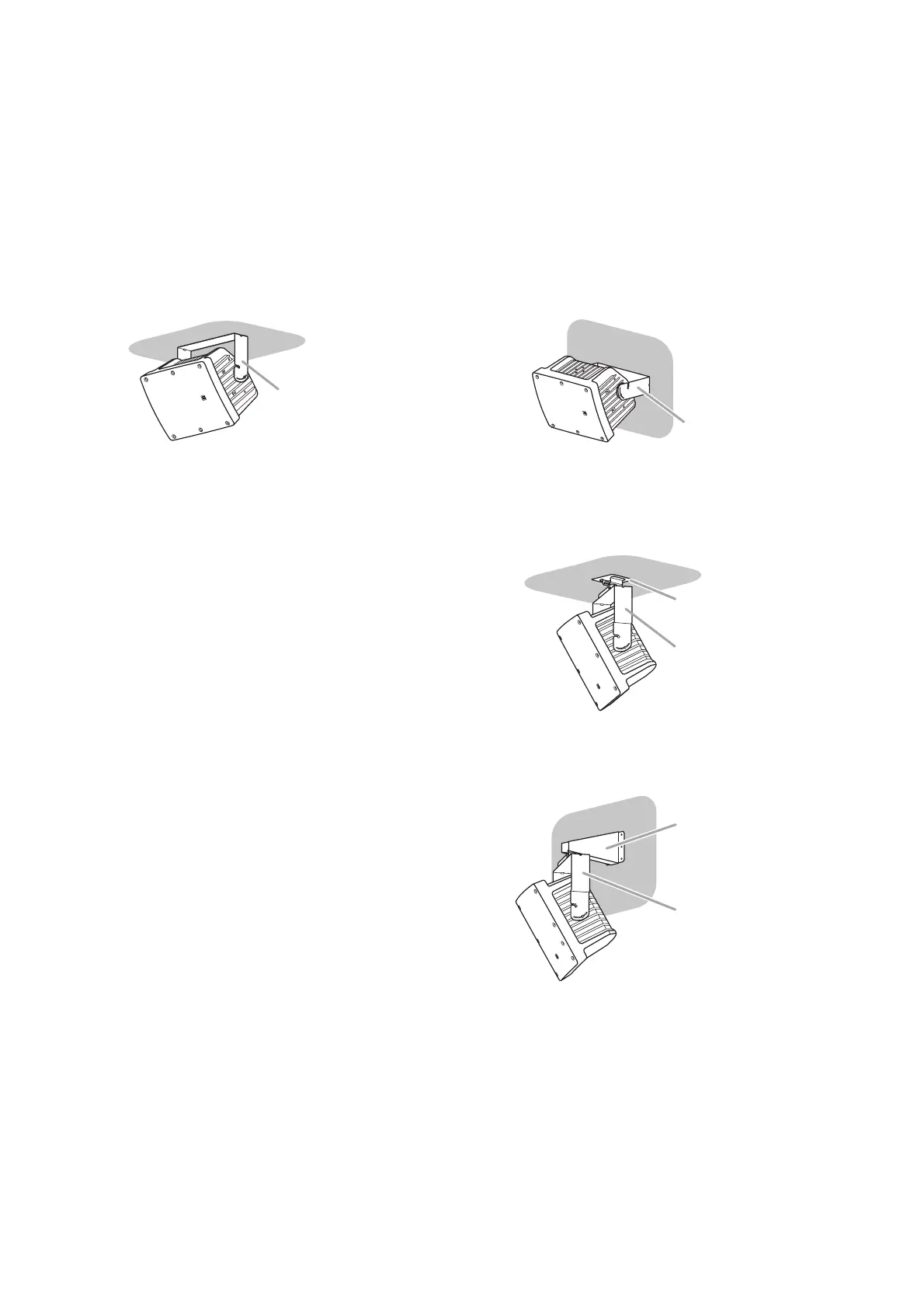

[Ceiling installation] [Wall installation]
7.1.2. HY-1200HB, HY-1200HW, HY-1500HB and HY-1500HW Mounting Brackets
(For horizontal speaker mounting)
• These brackets are designed to mount HS series speakers to ceilings or walls horizontally.
HY-1200HB and HY-1200HW: For the HS-120 series speaker system
HY-1500HB and HY-1500HW: For the HS-150 series speaker system
• They allow speaker’s vertical angle to be adjusted. (Ceiling: From 0° horizontal to 90° downward, Wall: From
15° upward to 60° downward)
Note: They also permit speaker’s horizontal angle to be adjusted in conjunction with the optional HY-C0801 or
HY-C0801W Ceiling Mount Bracket, or the HY-W0801 or HY-W0801W Wall Mount Bracket.
7.1.3. HY-C0801 and HY-C0801W Ceiling Mount Brackets
(For ceiling installation, horizontal angle adjustable)
Installing the HS series speaker to a ceiling in
conjunction with the HY-1200 series or HY-1500
series Mounting Bracket permits the speaker's
horizontal angle to be adjusted.
The figure at right shows an example of vertical
speaker installation.
Mounting Bracket
Ceiling Moun Bracket
7.1.4. HY-W0801 and HY-W0801W Wall Mount Brackets
(For wall installation, horizontal angle adjustable)
Installing the HS series speaker to a wall in
conjunction with the HY-1200 series or HY-1500
series Mounting Bracket permits the speaker's
horizontal angle to be adjusted.
The figure at right shows an example of vertical
speaker installation.
Mounting Bracket
Wall Mount Bracket
