5. INSTALLATION
5.1. Contents
Check to be sure that the following components are available in a complete set before installation:
Speaker ..... 1
Machine screw
M4 x 25 ..... 4
Unified screw
(UNC-No.6-32) x 32 ..... 4
Plain washer ..... 4
Spring washer ..... 4
Front grille ..... 1 Base frame ..... 1
Screws and washers
for electrical box

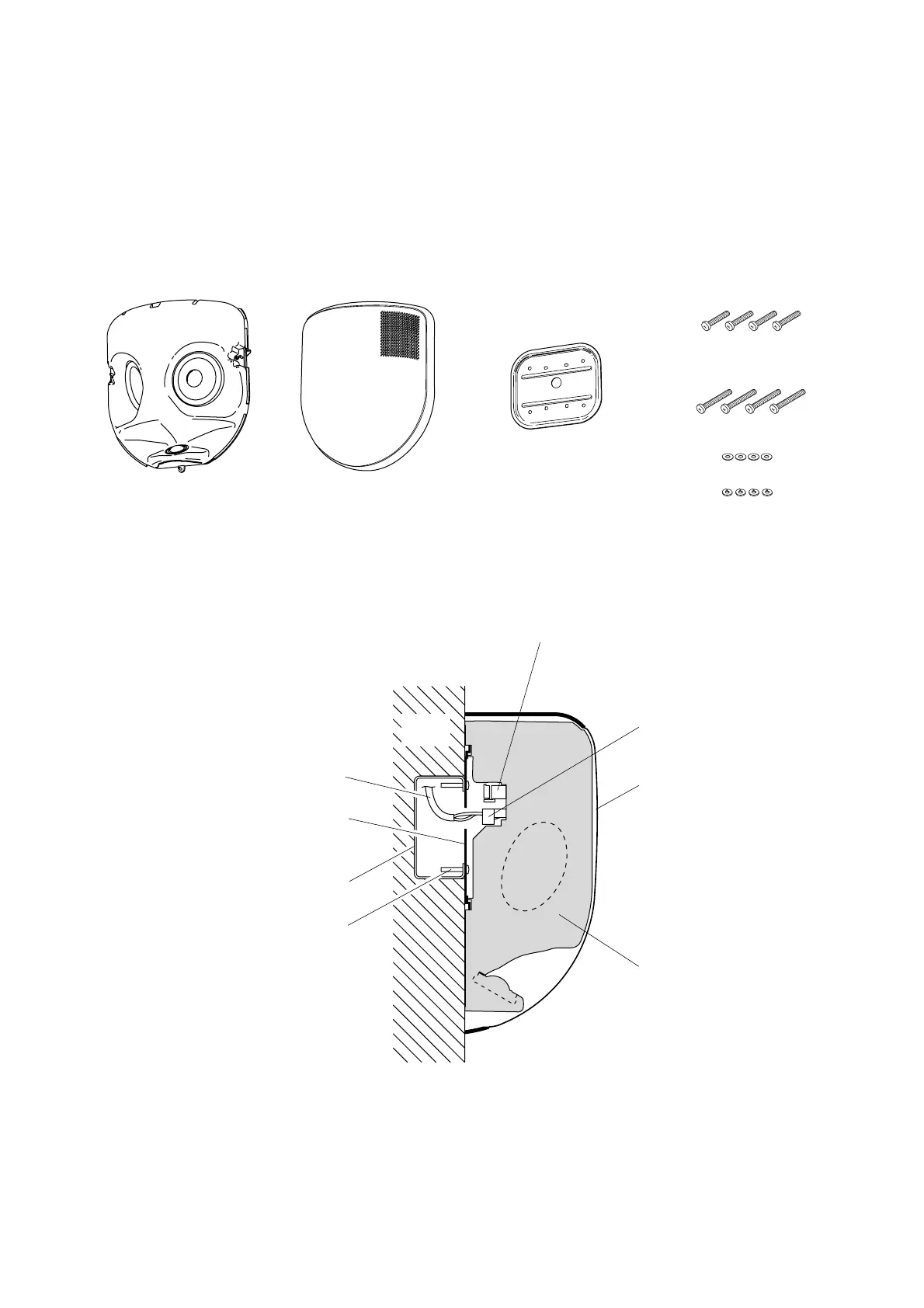

5.2. Installation Example (Using Two-Gang Electrical Box)
Base frame
Speaker
Front grille
Commercial two-gang electrical box
Screw/washer for electrical box
Speaker cable
Connector for impedance selection
Detachable input connector
Wall
Note
To mount to two-gang electrical box, use either the supplied "M4 machine" or "Unified" screw depending on
the type of the electrical box.
