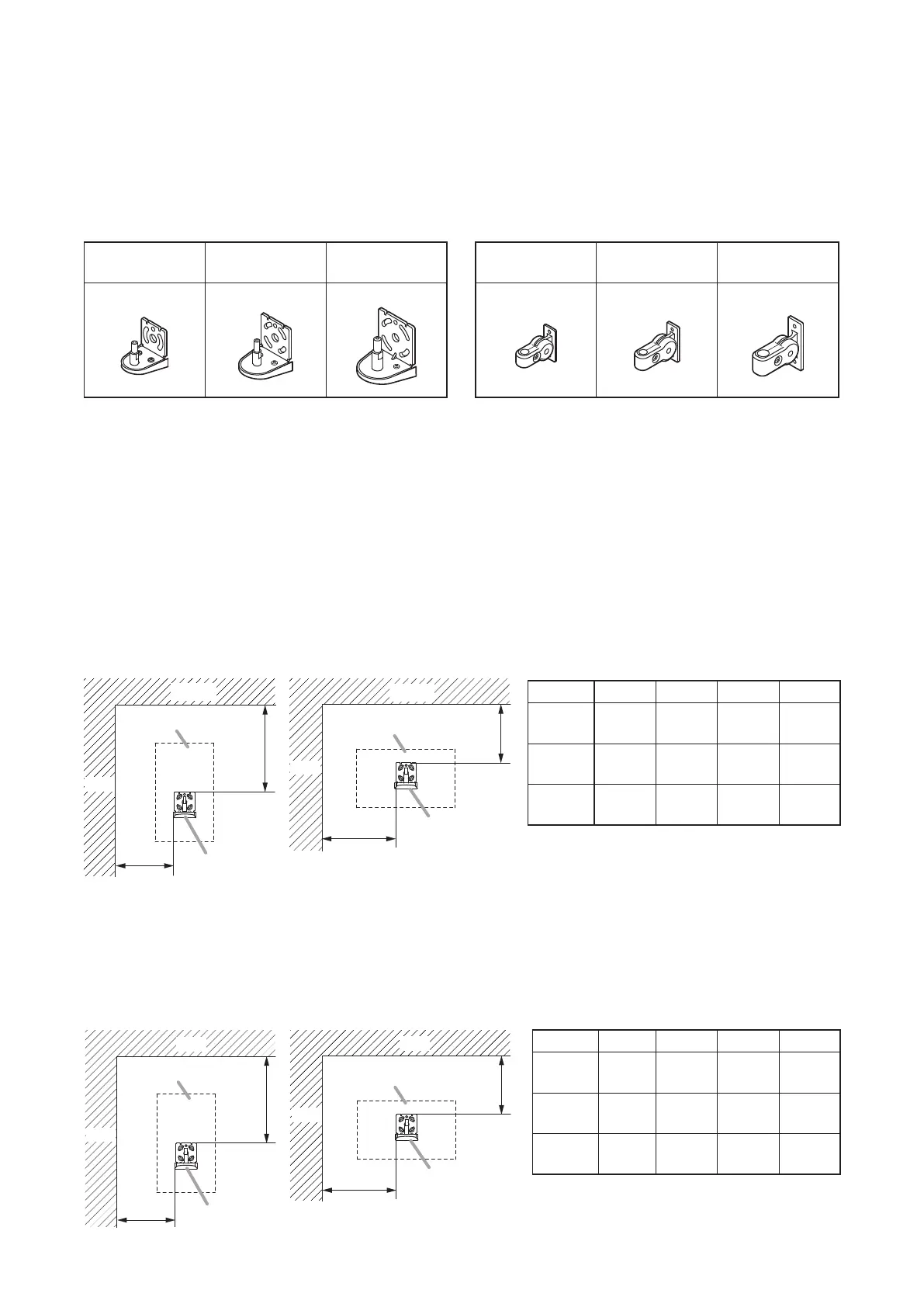

7. INSTALLATION
7.1. Using the Supplied Brackets
The speaker system is supplied with the following brackets.
• Base bracket: Used when installing the speaker to a
wall or ceiling
F-03BT
F-03WT
F-05BT
F-05WT
F-08BT
F-08WT
• Speaker brackets: To be attached to the speaker’s
rear surface
F-03BT
F-03WT
F-05BT
F-05WT
F-08BT
F-08WT
7.1.1. Installation Location of the Base Bracket
When installing the base bracket to a wall or ceiling, refer to the installation location diagrams and position
dimensions table shown below.
Shown below are the minimum distances from the wall or ceiling to the base bracket, taking into consideration
the speaker installation angle.
For the speaker installation angle, see "Range of Speaker Installation Angle" on p. 10.
[When installing to a wall]
• The gures are front views.
• The base bracket in the diagrams is that of the F-05BT or F-05WT.
(Vertical installation) (Horizontal installation) Unit: mm
A B C D
F-03BT
F-03WT
170
(6.69")
250
(9.84")
220
(8.66")
250
(9.84")
F-05BT
F-05WT
200
(7.87 ")
300
(11.81")
250
(9.84")
200
(7.87 ")
F-08BT
F-08WT
300
(11.81")
450
(17.72 ")
350
(13.78")
300
(11.81")
[When installing to a ceiling]
• The gures are bottom view.
• The base bracket in the diagram is that of the F-05BT or F-05WT.
(Vertical installation) (Horizontal installation) Unit: mm
A B C D
F-03BT
F-03WT
150
(5.91")
250
(9.84")
150
(5.91")
250
(9.84")
F-05BT
F-05WT
150
(5.91")
250
(9.84")
200
(7.87 ")
250
(9.84")
F-08BT
F-08WT
200
(7.87 ")
300
(11.81")
250
(9.84")
250
(9.84")
Base bracket
A
B
CeilingCeiling
Speaker
Wall
Wall
C
D
CeilingCeiling
Base bracket
Speaker
Wall
Wall
A
B
WallWall
Wall
Wall
Speaker
Base bracket
C
D
WallWall
Wall
Wall
Speaker
Base bracket
