12

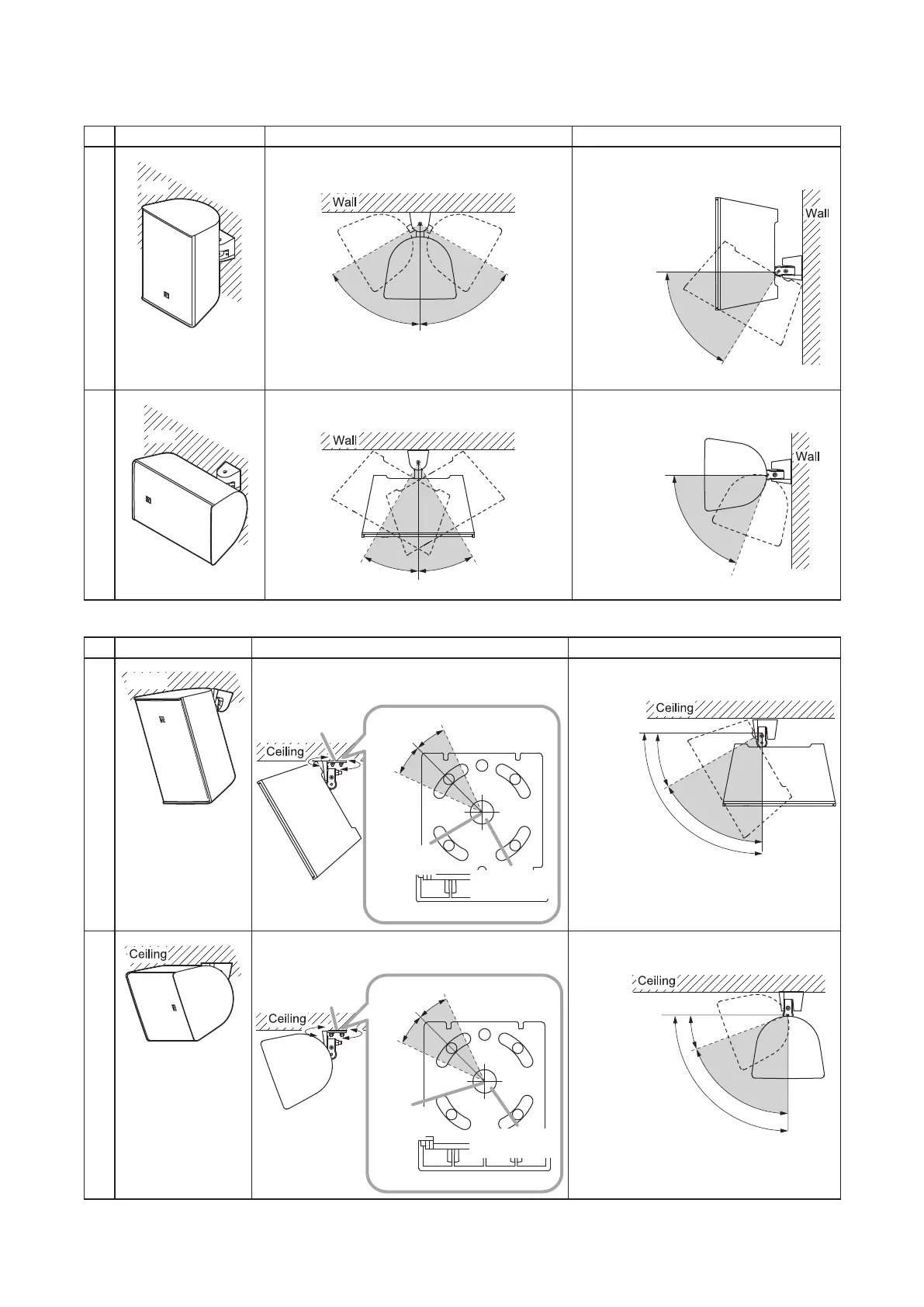

7.2.3. F-08BT, F-08WT
[When installing to a wall]
Installation examples Horizontal angle adjustment range Vertical angle adjustment range
Vertical installation
WallWall
60° left and right from the center of the speaker
(Top view)
60°
0°
60°
0º horizontal to 60º downward
(Side view)
60°
0° Horizontal
The angle can be adjusted in 10° steps.
Horizontal installation
WallWall
30° left and right from the center of the speaker
(Top view)
30°
30°
0º horizontal to 70º downward
(Side view)
70°
0° Horizontal
The angle can be adjusted in 10° steps.
[When installing to a ceiling]
Installation examples Horizontal angle adjustment range Vertical angle adjustment range
Vertical installation
CeilingCeiling
20° left and right from the reference point
mentioned below*
Base bracket
20°
20°
Ceiling mounting
surface
Reference
point
Reference
point
Speaker cable
exit hole
Speaker cable
exit hole
30º downward to 90º downward
(Side view)
(60°)
(90°)
30°
0° Horizontal
The angle can be adjusted in 10° steps.
Horizontal installation
20° left and right from the reference point
mentioned below*
Base bracket
20°
20°
Reference
point
Reference
point
Speaker cable
exit hole
Speaker cable
exit hole
Ceiling mounting
surface
20º downward to 90º downward
(Side view)
(70°)
20°
0° Horizontal
(90°)
The angle can be adjusted in 10° steps.
* In the case of the ceiling installation, adjust the horizontal angle by positioning the base bracket.
