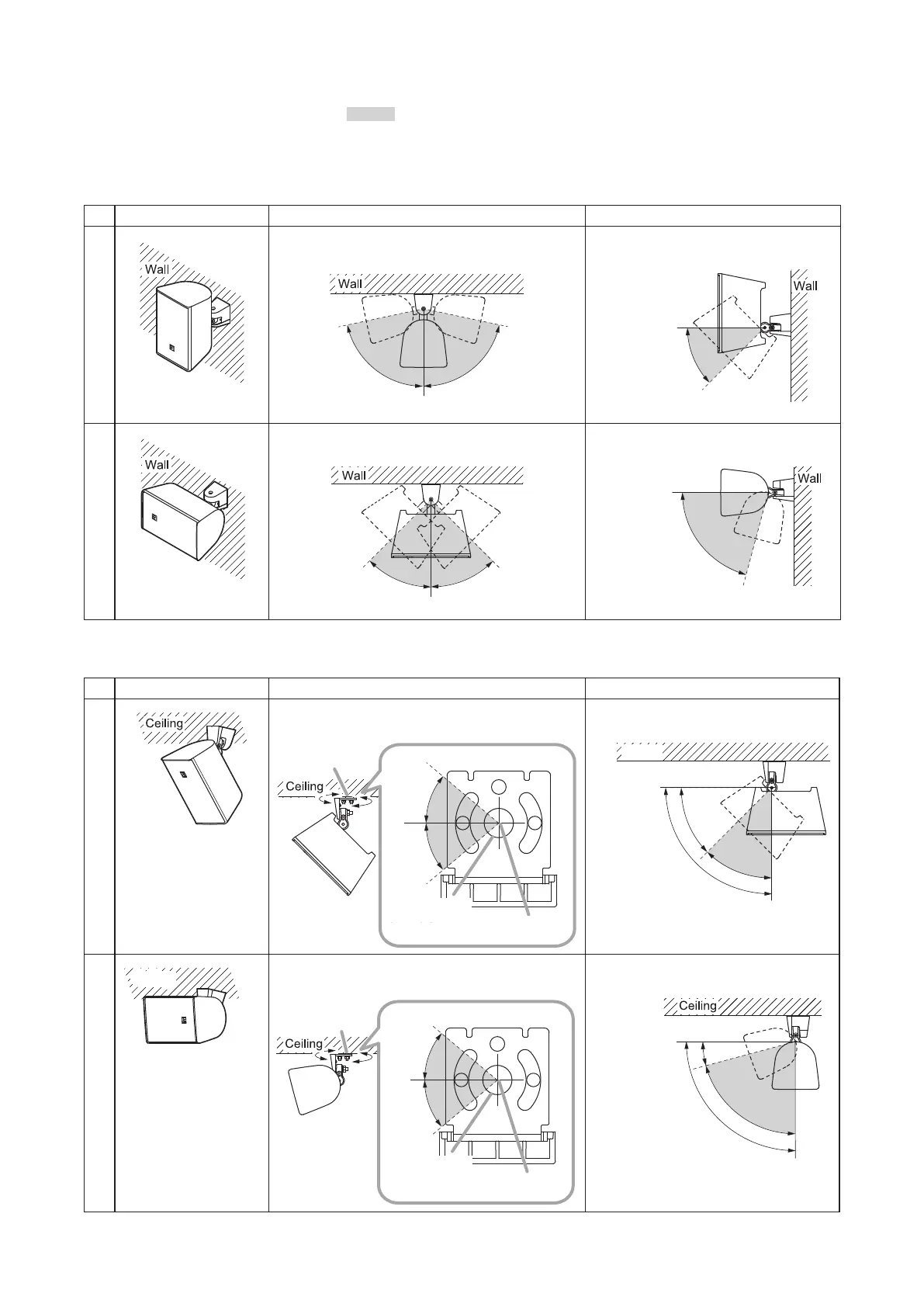

7.2. Range of Speaker Installation Angle
Install the speakers within the shaded range shown in the table below.
7.2.1. F-03BT, F-03WT
[When installing to a wall]
Installation examples Horizontal angle adjustment range Vertical angle adjustment range
Vertical installation
78° left and right from the center of the speaker
(Top view)
78°
78°
0°
0º horizontal to 45º downward
(Side view)
45°
0° Horizontal
The angle can be adjusted in 15° steps.
Horizontal installation
45° left and right from the center of the speaker
(Top view)
45°
45°
0°
0º horizontal to 75º downward
(Side view)
75°
0° Horizontal
The angle can be adjusted in 15° steps.
[When installing to a ceiling]
Installation examples Horizontal angle adjustment range Vertical angle adjustment range
Vertical installation
40° left and right from the reference point
mentioned below*
Base bracket
40°
40°
Ceiling mounting surface
Speaker cable
exit hole
Speaker cable
exit hole
Reference point
45º downward to 90º downward
(Side view)
0° Horizontal
(45°)
(90°)
45°
CeilingCeiling
The angle can be adjusted in 15° steps.
Horizontal installation
CeilingCeiling
40° left and right from the reference point
mentioned below*
Base bracket
40°
40°
Speaker cable
exit hole
Speaker cable
exit hole
Ceiling mounting surface
Reference point
15º downward to 90º downward
(Side view)
(75°)
(90°)
15°
0° Horizontal
The angle can be adjusted in 15° steps.
* In the case of the ceiling installation, adjust the horizontal angle by positioning the base bracket.
