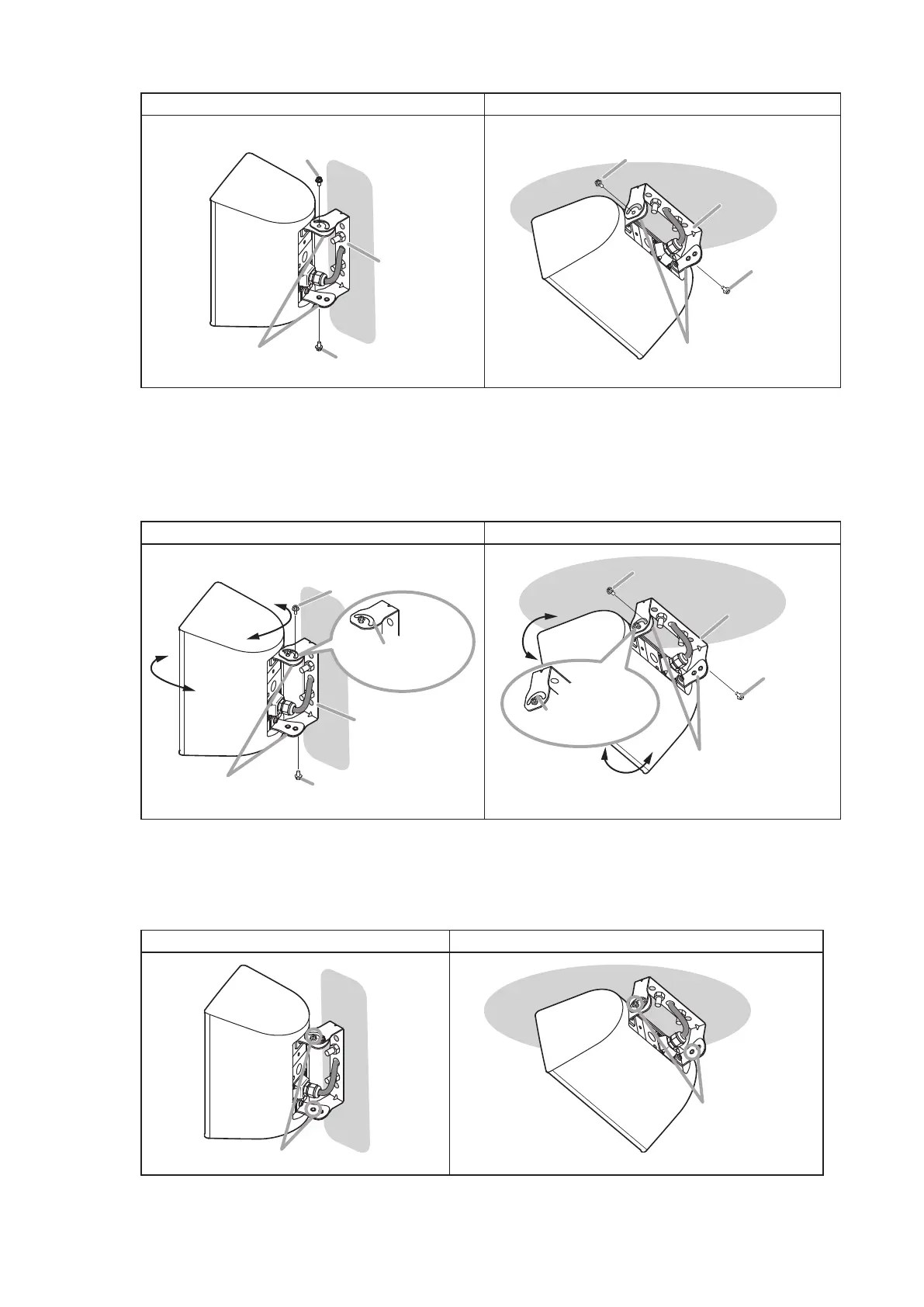

Step 7. Temporarily x the speaker bracket to the U bracket using the supplied screws. (2 places)
Wall mounting Ceiling mounting
U bracket
Wall
Speaker bracket
Machine screw
(accessory) *
Machine screw
(accessory) *
U bracket
Ceiling
Speaker bracket
Machine screw
(accessory) *
Machine screw
(accessory) *
Step 8. Adjust the speaker angle by moving the speaker along the angle adjustment slots in the U bracket, then
tighten the speaker using the supplied screws. (2 places)
[Recommended tightening torque]
F-03BT-WP-UE, F-03WT-WP-UE, F-05BT-WP-UE, F-05WT-WP-UE: 5 N·m
F-08BT-WP-UE, F-08WT-WP-UE: 10 N·m
Wall mounting Ceiling mounting
Wall
U bracket
Speaker bracket
Machine screw
(accessory) *
Machine screw
(accessory) *
Angle adjustment
slot
Ceiling
U bracket
Speaker bracket
Machine screw
(accessory) *
Machine screw
(accessory) *
Angle adjustment
slot
Step 9. Firmly secure the screws temporarily tightened in Step 7.
[Recommended tightening torque]
F-03BT-WP-UE, F-03WT-WP-UE, F-05BT-WP-UE, F-05WT-WP-UE: 5 N·m
F-08BT-WP-UE, F-08WT-WP-UE: 10 N·m
Wall mounting Ceiling mounting
Machine screw (accessory) *
Wall
Ceiling
Machine screw
(accessory) *
* F-03BT-WP-UE, F-03WT-WP-UE, F-05BT-WP-UE, F-05WT-WP-UE:
Machine screw M6 x 12 with plain washer and spring washer
F-08BT-WP-UE, F-08WT-WP-UE: Machine screw M8 x 12 with plain washer and spring washer
