14

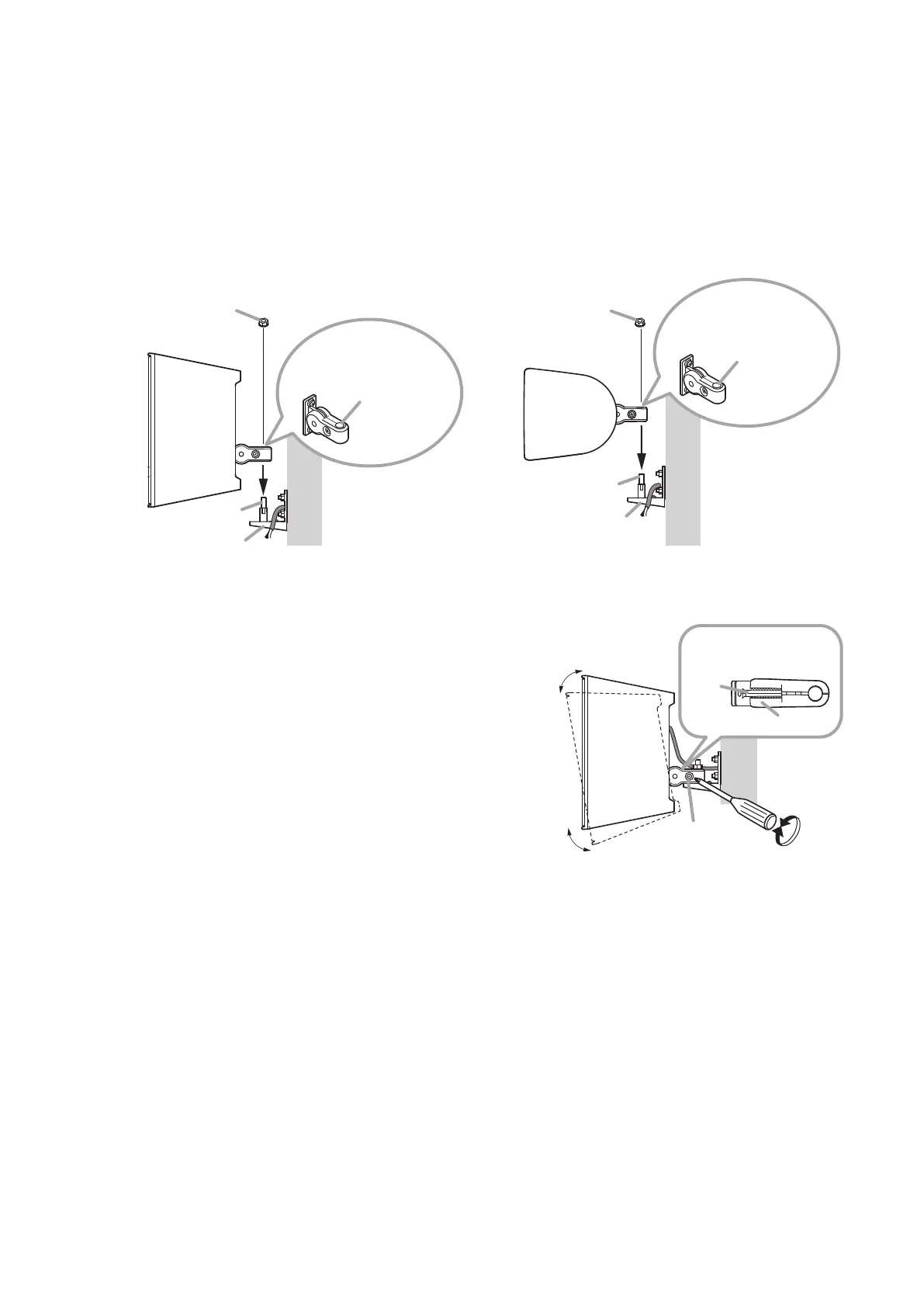

Step 4. Install the speaker bracket to the base bracket.
4-1. Insert the mounting hole in the speaker bracket onto the shaft of the base bracket xed in Step 1.
4-2. To prevent the speaker from falling, temporarily fasten the speaker bracket and the base bracket with
the supplied ange nut.
Note
Be sure to use the supplied ange nut.
* F-03BT, F-03WT, F-05BT, F-05WT: For M8
F-08BT, F-08WT: For M10
Wall
Shaft
[Vertical installation] [Horizontal installation]
Base bracket
Flange nut*
(accessory)
Flange nut*
(accessory)
Wall
Shaft
Base bracket
4
-2 4-2
Speaker bracket
mounting hole
Speaker bracket
mounting hole
4-1
4-1
Step 5. Adjust the vertical angle by gradually loosening the angle
adjustment bolt of the speaker bracket.
• The speaker bracket is divided into part A and part B,
which are secured with the angle adjustment bolt. The
vertical angle is adjusted in the interlocking section of
the parts A and B.
Note
Never remove the angle adjustment bolt or loosen it too
much so that the parts A and B come o.
• For the angle adjustment range, see "Range of Speaker
Installation Angle" on p. 10.
• Be sure to perform installation work while supporting the
speaker with one hand.
Step 6. Tighten the angle adjustment bolt.
Recommended tightening torque: 2 N·m
Note
Check that the parts A and B of the speaker bracket are rmly engaged.
Step 7. Connect the speaker cable to the input terminal. (See p. 7.)
Step 8. Adjust the horizontal angle of the speaker around the shaft of the base bracket as the axis, then rmly
tighten the ange nut temporarily tightened in Step 4-2.
[Recommended tightening torque]
F-03BT, F-03WT, F-05BT, F-05WT: 10 N·m
F-08BT, F-08WT: 20 N·m
Wall
5, 6
The figure represents the vertical installation.
Angle adjustment
bolt
Part A
Part B
Speaker bracket
(Side view)
