11

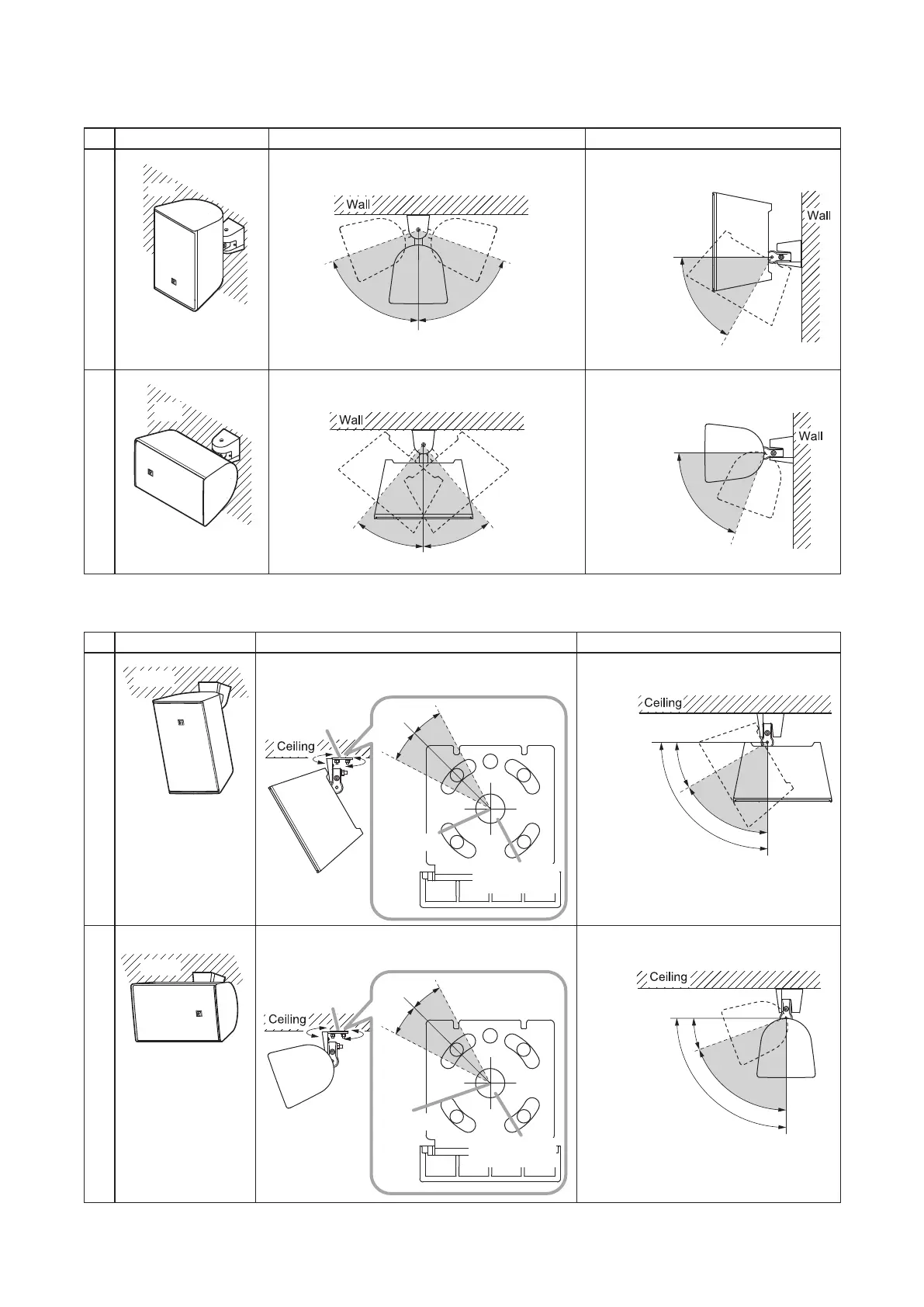

7.2.2. F-05BT, F-05WT
[When installing to a wall]
Installation examples Horizontal angle adjustment range Vertical angle adjustment range
Vertical installation
WallWall
70° left and right from the center of the speaker
(Top view)
70°
70°
0°
0º horizontal to 60º downward
(Side view)
60°
0° Horizontal
The angle can be adjusted in 10° steps.
Horizontal installation
WallWall
40° left and right from the center of the speaker
(Top view)
40°
40°
0°
0º horizontal to 70º downward
(Side view)
70°
0° Horizontal
The angle can be adjusted in 10° steps.
[When installing to a ceiling]
Installation examples Horizontal angle adjustment range Vertical angle adjustment range
Vertical installation
CeilingCeiling
17.5° left and right from the reference point
mentioned below*
Base bracket
Reference
point
Reference
point
Speaker cable
exit hole
Speaker cable
exit hole
17.5°
17.5°
Ceiling mounting
surface
30º downward to 90º downward
(Side view)
0° Horizontal
(60°)
(90°)
30°
The angle can be adjusted in 10° steps.
Horizontal installation
CeilingCeiling
17.5° left and right from the reference point
mentioned below*
Base bracket
Speaker cable
exit hole
Speaker cable
exit hole
17.5°
17.5°
Ceiling mounting
surface
Reference
point
Reference
point
20º downward to 90º downward
(Side view)
(70°)
20°
0° Horizontal
(90°)
The angle can be adjusted in 10° steps.
* In the case of the ceiling installation, adjust the horizontal angle by positioning the base bracket.
