8

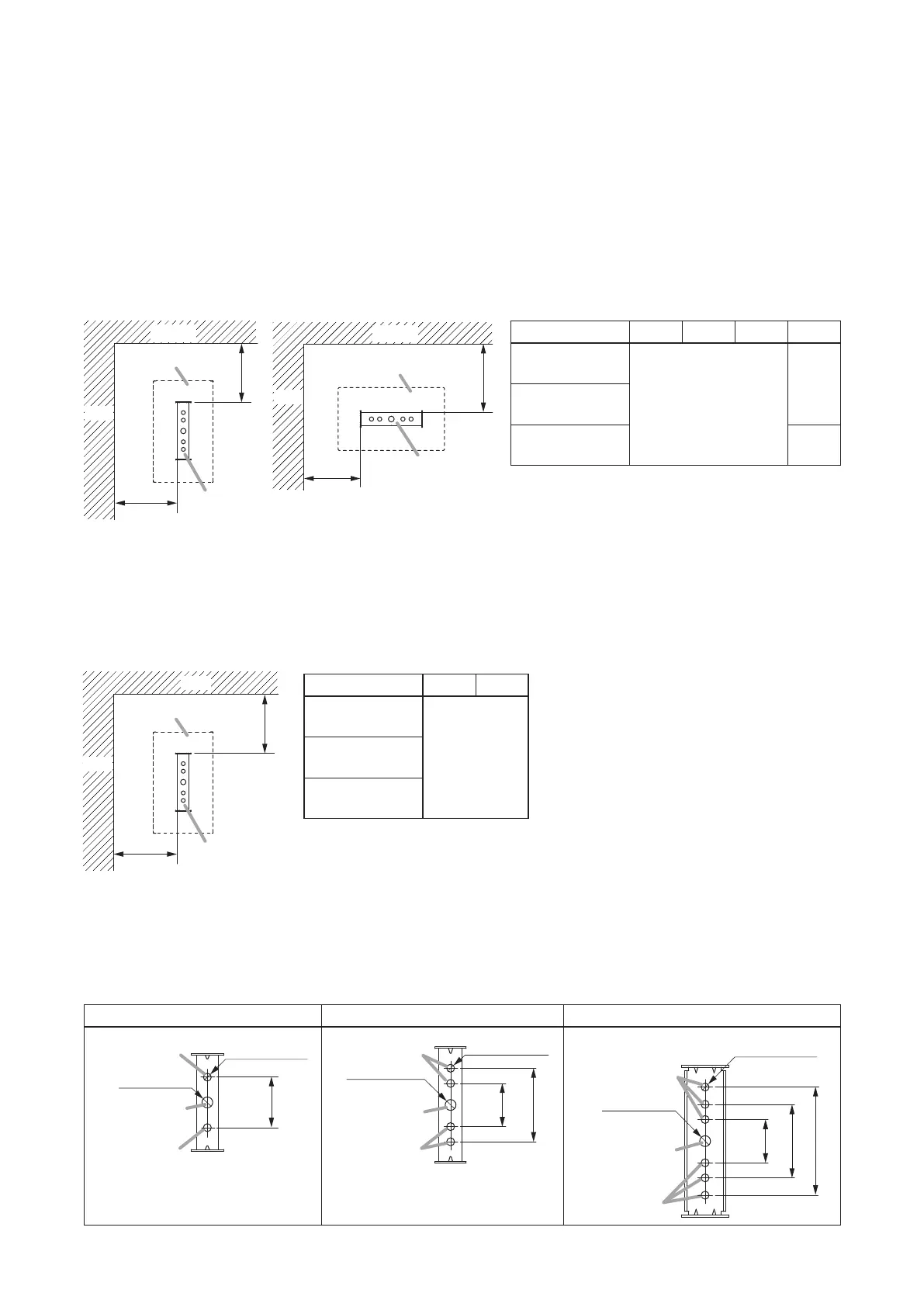

7.1.1. Installation Location of the U Bracket
When installing the U bracket to a wall or ceiling, refer to the installation location diagrams and position
dimensions table shown below.
The diagrams shown below are distance guidelines from the wall or ceiling to the U bracket, taking into
consideration of the speaker installation angle and installation work space.
For the speaker installation angle, see "Range of Speaker Installation Angle" on p. 9.
[When installing to a wall]
• The gures are front views.
• The U bracket in the diagrams is that of the F-05BT-WP-UE or F-05WT-WP-UE.
(Vertical installation) (Horizontal installation) Unit: mm
A B C D
F-03BT-WP-UE,
F-03WT-WP-UE
250
(9.84")
150
(5.91")
F-05BT-WP-UE,
F-05WT-WP-UE
F-08BT-WP-UE,
F-08WT-WP-UE
250
(9.84")
[When installing to a ceiling]
• The gure is a bottom view.
• Referring to the diagram below, install the U bracket to the ceiling according to the direction in which speaker
is installed.
• The U bracket in the diagrams is that of the F-05BT-WP-UE or F-05WT-WP-UE.
Unit: mm
A B
F-03BT-WP-UE,
F-03WT-WP-UE
250
(9.84")
F-05BT-WP-UE,
F-05WT-WP-UE
F-08BT-WP-UE,
F-08WT-WP-UE
7.1.2. U bracket installation dimensions
The number of the mounting holes in the U bracket varies depending on the model. Be sure to use 2 or more
mounting holes to secure the U bracket to the installation location.
Use M10 nut for installation.
F-03BT-WP-UE, F-03WT-WP-UE F-05BT-WP-UE, F-05WT-WP-UE F-08BT-WP-UE, F-08WT-WP-UE
Mounting hole
Mounting hole
S
peaker cable
e
xit hole
ø15 (0.59")
2-ø11 (0.43")
70
(2.76")
60
(2.36")
102 (4.02")
Mounting hole
Mounting hole
Speaker cable
exit hole
ø15 (0.59")
4-ø11 (0.43")
S
peaker cable
e
xit hole
60
(2.36")
150 (5.91")
102 (4.02")
Mounting hole
Mounting hole
ø15 (0.59")
6-ø11 (0.43")
CeilingCeiling
Wall
Wall
U bracket
A
B
Speaker
C
D
CeilingCeiling
Wall
Wall
U bracket
Speaker
WallWall
Wall
Wall
U bracket
A
B
Speaker
