7.4. Ceiling Mounting
Note
The gures from Step 2 onward are examples of the F-05BT or F-05WT.
Step 1. Temporarily secure the supplied base bracket to the ceiling.
Notes
• Bolts and nuts used for mounting the base bracket to the ceiling are not supplied.
Use M6 bolts and nuts.
• For the installation location and dimension of the base bracket, see "Using the Supplied Brackets" on
p. 8.
• Be sure to mount the base bracket to the ceiling using 2 or 4 bolts as shown in the gures below.

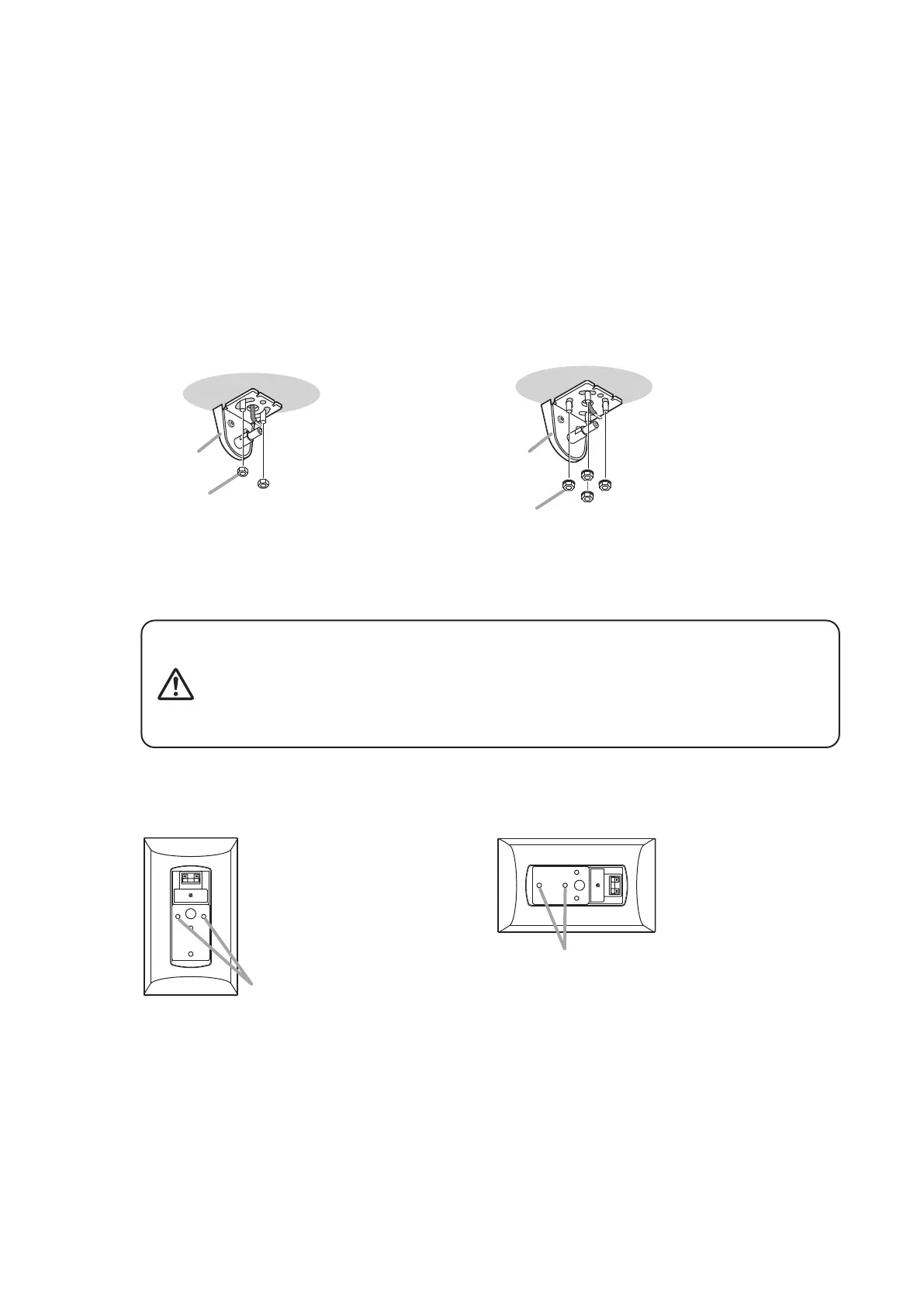

Ceiling
Ceiling
Base bracket
Nut (2 spaces)
Base bracket
Nut (4 spaces)
[F-03BT or F-03WT]
[F-05BT, F-05WT, F-08BT, or F-08WT]
The figure represents the base bracket of F-05BT or F-05WT.
Step 2. Attach a safety wire to the rear surface of the speaker.
• Install the safety wire on the ceiling side to a location that is
strong enough to withstand the entire weight of the speaker
including the mounting brackets.
• Use a safety wire that is strong enough to withstand the entire
weight of the speaker including the mounting brackets.
• Keep the safety wire at the minimum length without slack.
WARNING
Note
The safety wire is not supplied. Prepare it separately.
Install the safety wire
to either of the holes.
Install the safety wire to either of the holes.
[Vertical installation] [Horizontal installation]
