8. INSTALLATION

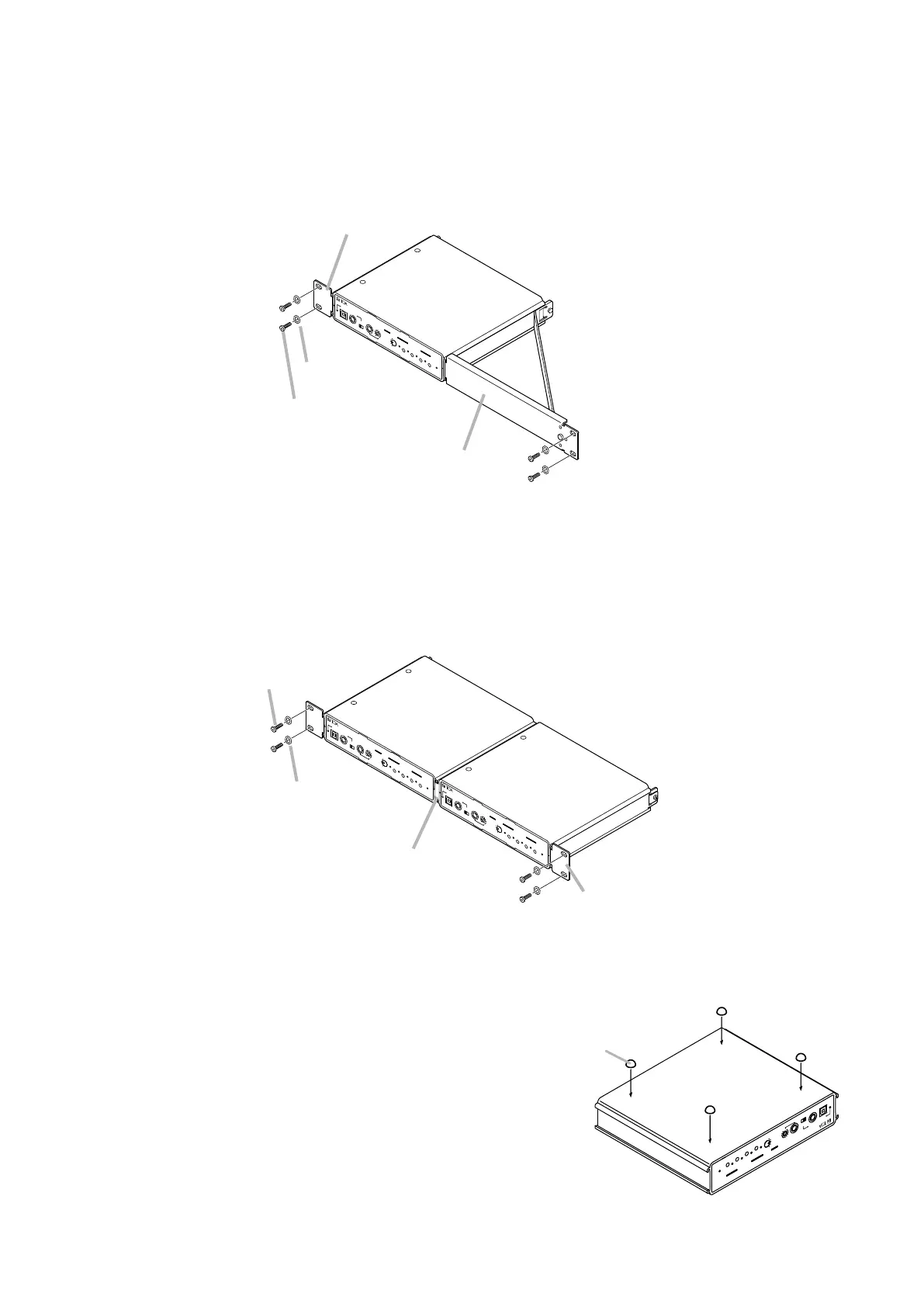

8.1. Mounting a Single Unit in an Equipment Rack
Use the optional MB-WT3 Mounting Bracket to mount a single EV-20R unit.
EV-20R
DEL
REC
LISTEN
PLAY
LOCK
0
10
1
2
3 4
USB
POWER
MIC
LEVEL
LINE
INPUT/
REC IN
HEAD-
PHONE
PLAY/STOP
MODE
SOUND REPEATER EV-20R
PHONES/
SPEAKER
*
1
Parts making up the MB-WT3 Bracket
Fiber washer *
1
(for M5)
Rack mounting screw *
1
5 x 12
Bracket A *
1
Bracket B *
1
EV-20R
EV-20R
DEL
REC
LISTEN
PLAY
LOCK
0
10
1
2
3 4
USB
POWER
MIC
LEVEL
LINE
INPUT/
REC IN
HEAD-
PHONE
PLAY/STOP
MODE
SOUND REPEATER EV-20R
PHONES/
SPEAKER
DEL
REC
LISTEN
PLAY
LOCK
0
10
1
2
3 4
USB
POWER
MIC
LEVEL
LINE
INPUT/
REC IN
HEAD-
PHONE
PLAY/STOP
MODE
SOUND REPEATER EV-20R
PHONES/
SPEAKER
Fiber washer *
2
(for M5)
Rack mounting screw *
2
5 x 12
Bracket *
2
Connector *
2
*
2
Parts making up the MB-WT4 Bracket
DEL
REC
LISTEN
PLAY
LOCK
0 10
1
2
3
4
USB
POWER
MIC
LEVEL
LINE
INPUT/
REC IN
HEAD-
PHONE
PLAY/STOP
MODE
SOUND REPEATER EV-20R
PHONES/
SPEAKER
Rubber feet
(supplied with unit)
8.2. Mounting Two Units in an Equipment Rack
Use the optional MB-WT4 Mounting Bracket to mount 2 EV-20R units.
8.3. Installing the Unit on a Desk
Attach the 4 supplied rubber feet to the bottom surface
of the unit when installing the unit on the desk.
