9. CONNECTIONS

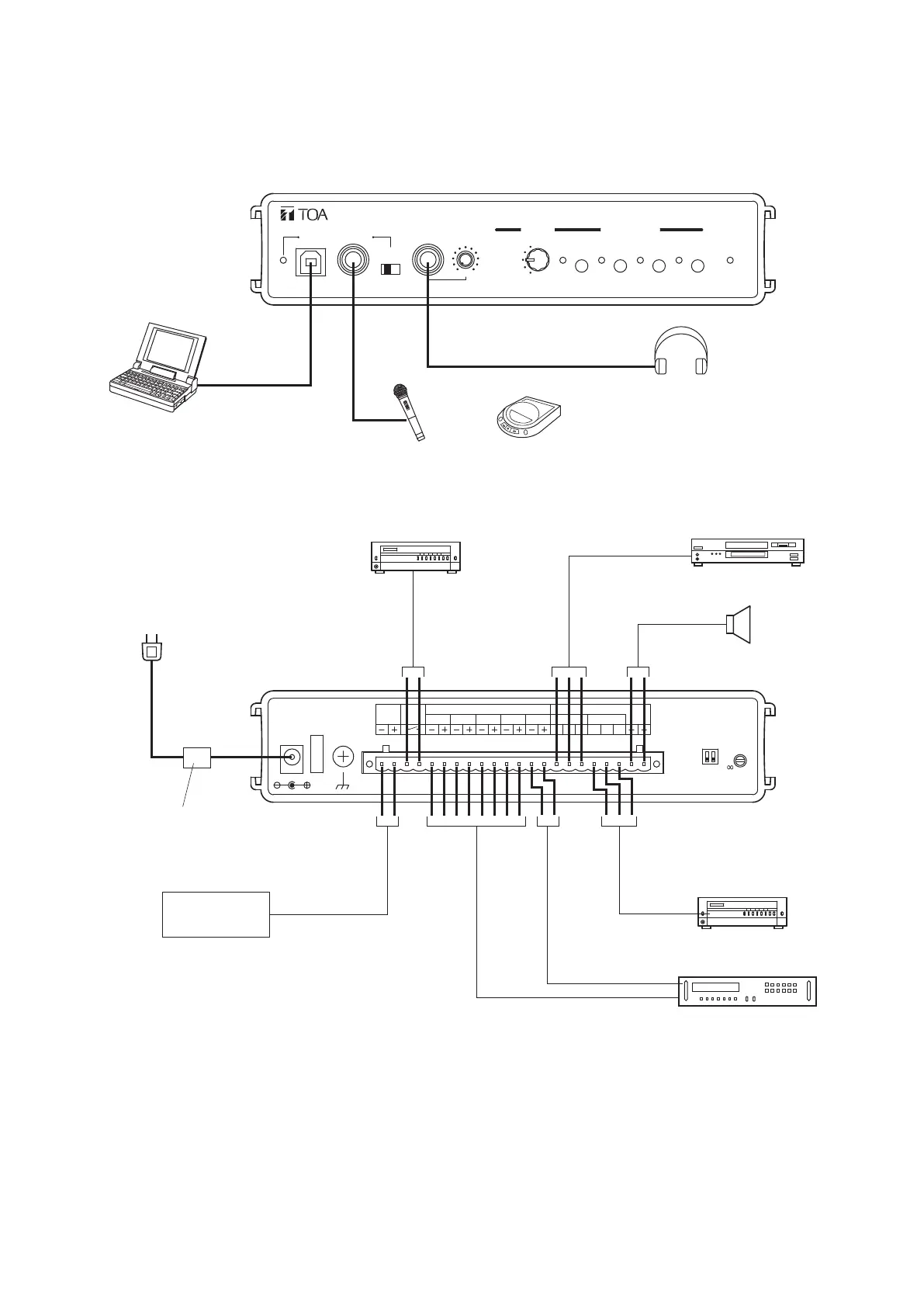

9.1. Connection Example
*
1
Followingactivation,maintains makestatusuntilthe messagestops.When repeat broadcastmodeis
selected by the Playback Interval Setting switch, the busy output during the time intervals (except for "0 s"
and "
∞" settings) can be set to "Make" (ON) or "Break" (OFF). (Refer to p. 13.)
Use these outputs for amplifier power supply control.
*
2
Messages are played back when their corresponding terminal numbers are closed.
*
3
Message playback stops when these terminals are closed.
*
4
UsedforBGMbroadcasts,etc.Wheneverastoredmessageisactivated,themessageplaybackbroadcast
takes precedence.
DEL
REC
MONITOR
PLAY
LOCK
0 10
1 2 3 4
USB
POWER
MIC
LEVEL
LINE
INPUT/
REC IN
HEAD-
PHONES
START/STOPMODE
PHONES/
SPEAKER
4s2sON
1h 30m
10m
1m
30s
DELAY
INTERVAL
TIMER
DC IN
GND
SIGNAL
0s 5m
5s
10s
OUT24V STOP4321
PLAY 1 – 4 / STOP
LINE IN LINE OUT
DC IN
HCE E C H
BUSY
SPKR
Class 2 Wiring / 8 – 16 Ω
24V 400mA
PC
To AC mains, 50/60 Hz
(When operating unit on AC power supply)
USB cable
(supplied with unit)
[EV-20R Front]
[EV-20R Rear]
Microphone
or
CD player, etc.
Headphone*
AD-246 AC adapter
(optional)
(When operating unit on DC power supply)
Timer or switching device
Speaker
External audio source equipment
Power amplifier
*
No signal is output from the
Speaker Output terminal if
the headphone is connected.
Remote control input of power amplifier, etc.
24 V DC
power supply
STOP
input*
3
LINE
output
PLAY
input*
2
LINE
input*
4
BUSY output
*
1
Remote control input
Stop control output
Start control output
